Specification
Brand : Banfluxion
BulletPoint1 : 【Operation】There are 3 ways to start turning: manual start, automatic start and delay automatic start. After setting parameters on the control panel, save and start to realize reciprocating turning function and thread turning.
BulletPoint2 : 【Thread Switch】This metal lathe can switch metric and inch thread automatically. You can operate just through the panel without the need of changing gears, which is more convenient.
BulletPoint3 : 【Automatic Feed】This metal lathe can achieve automatic feed in the X axis direction. The automatic feed range is 0.01mm-0.4mm.
BulletPoint4 : 【Multifunction】This metal lathe can be applied for metal turning, screw threading, internal and external thread, wood turning, turning and polishing and so on.
BulletPoint5 : 【Indexing Function】The DIR button on the control panel can switch the direction of turning tool and the angle can be cleared with one click.
ExternallyAssignedProductIdentifier1 : 0840403799619
ExternallyAssignedProductIdentifier2 : 840403799619
IncludedComponents : 1 x Metal Lathe 1 x Centre Rest 1 x Dead Center MT2 1 x Oil Gun 3 x Jaws 6 x Metal Gears 1 x Instruction Manual 2 x Screwdrivers 1 x Accessory Kit 1 x Chuck Wrench 3 x Wrenches 3 x Chuck Jaws

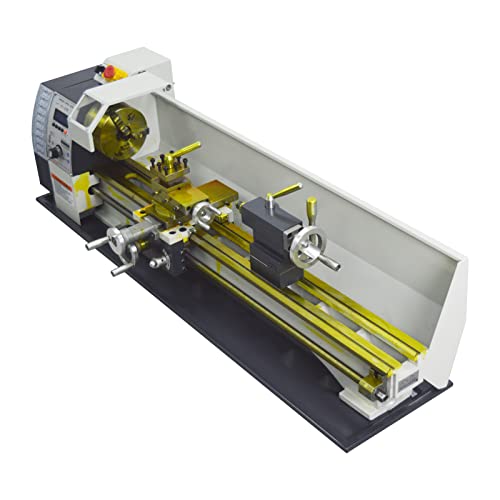

ItemName : BANFLUXION 110V RC-210E 8"x24" Precision Metal Bench Lathe 50-2500rpm Variable Speed Metal Lathe with 1100W Brushless Motor
ItemPackageDimensions_Height : 20.08 inches
ItemPackageDimensions_Length : 41.73 inches
ItemPackageDimensions_Width : 18.5 inches
ItemPackageQuantity : 1
ItemTypeKeyword : power-metal-lathes
Manufacturer : Banfluxion
ModelName : Metal Lathe
ModelNumber : FUR.JSMNCC220X750-001V1
PartNumber : CB028353
PowerSourceType : ac
ProductDescription :

Product Parameters:

Model: RC-210E

Voltage: AC110V 50/60Hz(Brushless Motor)

Power: 1100W(1.5HP)

Length of center: 23.62"(600mm)

Swing Over Bed: 8.27"(210mm)

Rotary diameter of tool rest: 5.51"(140mm)

Spindle bore: 1.50"(38mm)

Diameter of chuck: 4.92"(125mm)

Width of lathe bed: 3.94"(100mm)

Thread standard: Metric/imperial/customized

Turning delay start time: 1s-30s

Number of Spindle Speeds: Infinitely variable speeds

Range of Inch Threads: 10-44T.P.I

Range of metric threads: 0.5mm-3mm

Spindle taper: MT5

Knife rest labour: Horizontal four-station

Spindle rotation speed: 50-2500rpm

Precision of the spindle: 0.01mm

Automatic feed range: 0.01mm-0.4mm

Tail frame taper: MT2

Maximum stroke of tool rest plate: 2.16"(55mm)

Maximum stroke of middle plate: 2.95"(75mm)

Maximum stroke of bottom plate: 19.68"(500mm)

Maximum stroke of tailstock sleeve: 2.36"(60mm)

Item Included:

RC-210E lathe *1

Base oil pan *1

English manual *1

Oil can *1

Hexagon wrench *5

Open spanner *2

The screwdriver *2

Chuck jaw *3

Chuck spanner *1

ProductSiteLaunchDate : 2024-06-27T03:38:51.273Z
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
Voltage : 110 volts_of_alternating_current
Wattage : 1100 watts
