Specification
AgeRangeDescription : adult
Brand : BEILOCKERY
BulletPoint1 : High quality: The lathe is made of sturdy cast iron material and undergoes quenching treatment, significantly improving the strength, toughness, and wear resistance of the bed, ensuring the stability of the lathe during long-term operation
BulletPoint2 : Switchable between metric and imperial systems: This lathe can automatically switch between metric and imperial systems without shifting gears, greatly facilitating the operator. Processing both imperial and metric threads is easy, without the need to replace parts or adjust settings, improving work efficiency and processing flexibility
BulletPoint3 : Indexing function: You can switch the direction of turning tool through "DIR" button. Angles can be cleared with one click
BulletPoint4 : Convenient design: The lathe is equipped with a user-friendly operating interface, including a one click start stop switch and forward/reverse switch, making operation more convenient and efficient
BulletPoint5 : Wide applicability: This lathe is suitable for processing various materials, including metal, plastic, wood, etc. It can process various rotating surfaces and end faces of rotating bodies. For example, turning inner and outer cylindrical surfaces, conical surfaces, ring grooves, formed cutting surfaces, and turning end faces. Whether it's industrial production or DIY enthusiasts, they can find suitable application areas for themselves
BulletPoint6 : ● Low speed motor: 10000r/min ± 15% Spindle speed: high speed motor 3000r/min±15%
Color : Grey
ExternallyAssignedProductIdentifier : 4516930615512
ExternallyAssignedProductIdentifier1 : 0198462846509
ExternallyAssignedProductIdentifier2 : 198462846509

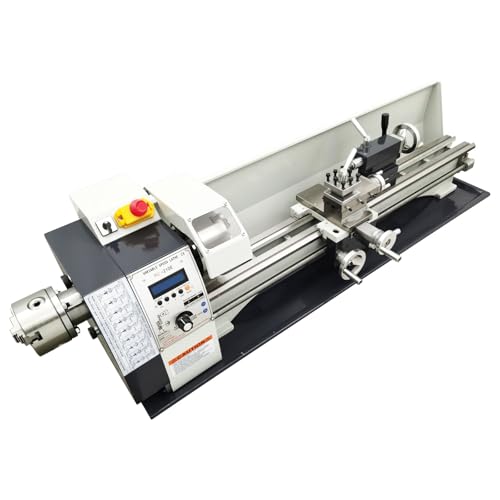

ItemName : BEILOCKERY Metal Lathe Double Head Double Chuck RC-210E Automatic Inch/Metric Conversion 1100W Benchtop Electronic Gear Lathe Machine 50-2500rpm Variable Speed 8"*32" Electronic Pulse Precision 110V
ItemPackageDimensions_Height : 20.08 inches
ItemPackageDimensions_Length : 55.12 inches
ItemPackageDimensions_Width : 18.5 inches
ItemPackageQuantity : 1
ItemTypeKeyword : power-metal-lathes
Manufacturer : BEILOCKERY
ModelName : CFCBNTNZYG
ModelNumber : CFCBNTNZYG
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : S028364
ProductDescription :

Product Parameters:

Model: RC-210E

Voltage: AC110V 50/60Hz(Brushless Motor)

Power: 1100W(1.5HP)

Length of center: 31.50"(800mm)

Swing Over Bed: 8.27"(210mm)

Concentricity tolerance: 0.03mm-0.05mm

Rotary diameter of tool rest: 5.51"(140mm)

Spindle bore: Right side: 1.50"(38mm)

Left side: 1.26"(32mm)

Max clamping diameter of right chuck: 4.92"(125mm)

Max clamping diameter of left chuck: 3.54"(90mm)

Width of lathe bed: 3.94"(100mm)

Thread standard: Metric/imperial/customized

Turning delay start time: 1s-30s

Number of Spindle Speeds: Infinitely variable speeds

Range of Inch Threads: 10-44T.P.I

Range of metric threads: 0.5mm-3mm

Spindle taper: MT5

Knife rest labour: Horizontal four-station

Spindle rotation speed: 50-2500rpm

Precision of the spindle: 0.01mm

Automatic feed range: 0.01mm-0.4mm

Tail frame taper: MT2

Maximum stroke of tool rest plate: 2.16"(55mm)

Maximum stroke of middle plate: 2.95"(75mm)

Maximum stroke of bottom plate: 26.77"(680mm)

Maximum stroke of tailstock sleeve: 2.36"(60mm)

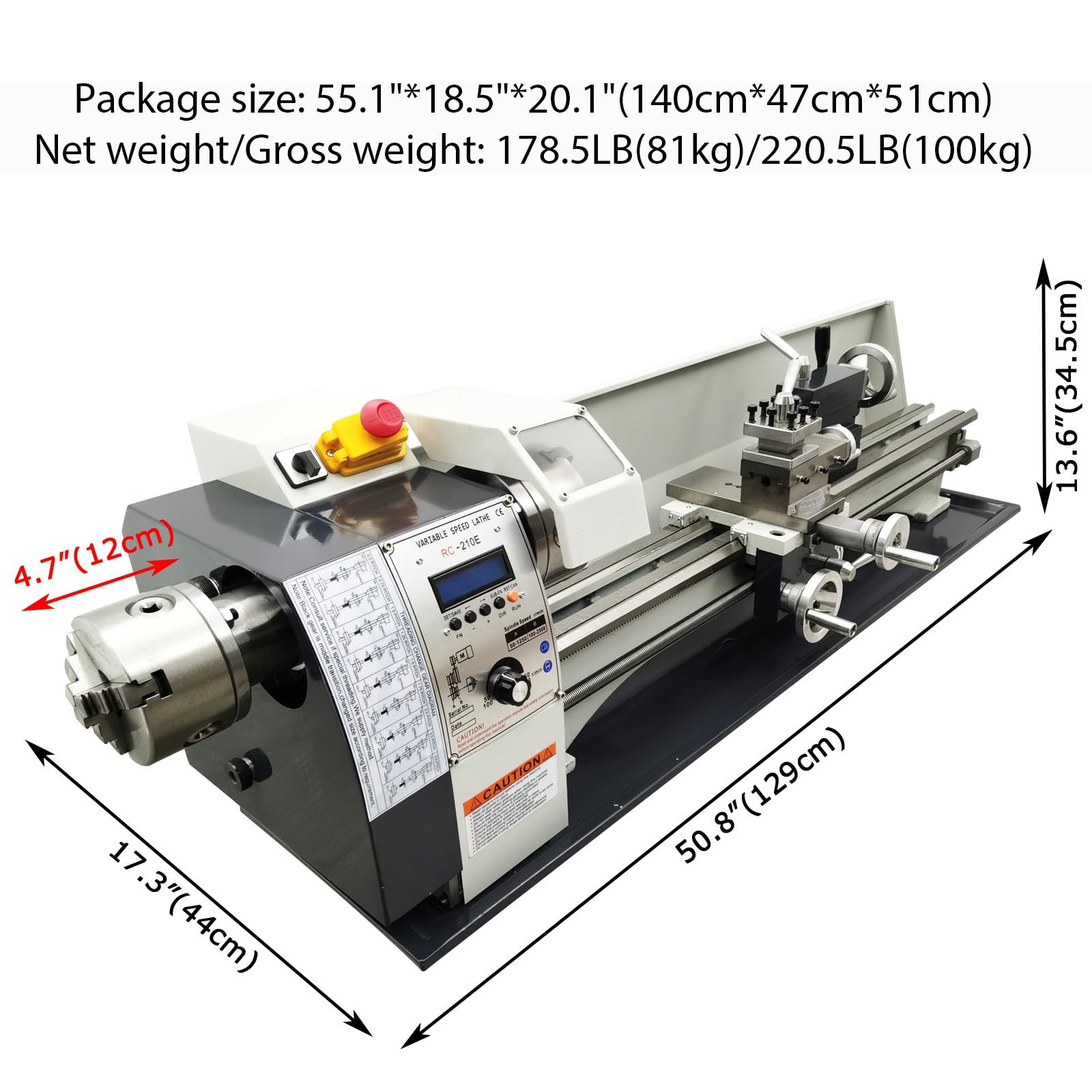

Package size: 55.1"*18.5"*20.1"(140cm*47cm*51cm)

Net weight/Gross weight: 178.5LB(81kg)/220.5LB(100kg)

Attention: The yellow parts on the lathe body and chuck are rust proof oil, which is a normal phenomenon. They can be wiped off with oil or gasoline before use. Before starting, be sure to clean the rust proof oil on the chuck and rotate it by hand to prevent the chuck from getting stuck and causing the circuit board to burn out!!

Item Included (028364)

RC-210E lathe *1

Base oil pan *1

English manual *1

Oil can *1

Hexagon wrench *5

Open spanner *2

The screwdriver *2

Chuck jaw *3

Chuck spanner *1

ProductSiteLaunchDate : 2025-03-22T02:30:09.686Z
Size : One Size
UnitCount : 1
UnspscCode : 23242100
