Specification
Brand : HQHAOTWU
BulletPoint : Material: Aluminum
BulletPoint1 : 750W AC Motor: 750W AC motor with stable performance. The machine tool guide rail adopts quenching process and is integrally cast into shape. It has excellent wear resistance and accuracy.
BulletPoint2 : Automatic Switch between Metric/Inch Threads: The intelligent panel can switch between metric/inch threads. The range of inch threads is 8-56TPI. The metric thread range is 0.5mm-3mm. No longer requires gear replacement, thereby reducing noise.
BulletPoint3 : Precision Machining: By controlling the gear lever, the spindle speed can be quickly and accurately adjusted. The spindle speed range is 115-1620rpm.
BulletPoint4 : Safe And Reliable: Equipped with forward and reverse switches and emergency stop switches, it can stop immediately in emergency situations, ensuring user safety.
BulletPoint5 : Widely Used: Micro lathes are mainly used for processing various rotating surfaces and end faces of rotating bodies. It is suitable for machining turning, drilling, metric threads, and cutting.
ExternallyAssignedProductIdentifier1 : 0840403769537
ExternallyAssignedProductIdentifier2 : 840403769537
FinishType : Finish
IncludedComponents : inc

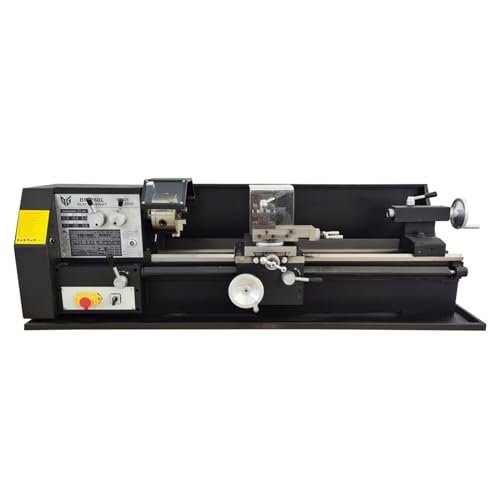

ItemName : HQHAOTWU 10.2"*27.6" Benchtop Metal Lathe, 220V AC Motor Metric/Inch Threads Precision Metal Lathe 750W Mini Lathe
ItemPackageDimensions_Height : 24.41 inches
ItemPackageDimensions_Length : 57.48 inches
ItemPackageDimensions_Width : 24.02 inches
ItemPackageQuantity : 1
ItemTypeKeyword : power-metal-lathes
Manufacturer : HQHAOTWU
Material : Aluminum
ModelName : Zerodisvdcsi54per
ModelNumber : Zerodisvdcsi54per
NumberOfItems : 1
PartNumber : DX056851
PowerSourceType : PowerSource
ProductDescription : Product Parameters

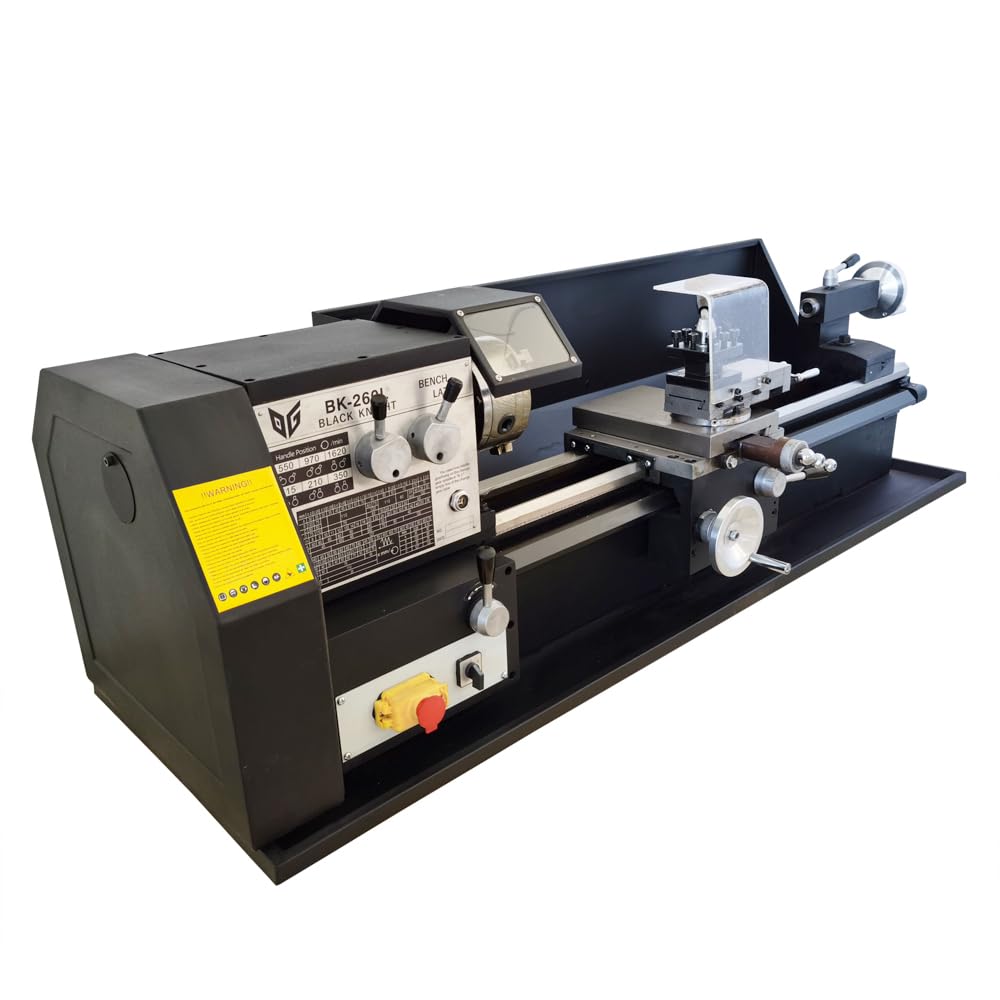

Model: BK-260L
Voltage: AC110V (AC Motor)
Power: 750W (1HP)
Distance between centers: 27.56"(700mm)
Max swing diameter over bed: 10.24"(260mm)
Spindle bore: 1.06"(27mm)
Max clamping diameter of chuck: 4.33"(110mm)
Width of lathe bed: 4.92"(125mm)
Thread standard: Inch and metric screw thread
Range of Inch Threads: 8-56T.P.I
Range of metric threads: 0.2mm-3.5mm
Spindle taper: MT4
Knife rest labour: Horizontal four-station
Spindle rotation speed: 115-1620rpm
Precision of the spindle: 0.01-0.02mm
Automatic feed range: 0.1mm-0.2mm
Tail frame taper: MT2
Max turning angle of tool rest slide: ±45°
Machine assembly metal gear specifications: 30/35/65/120
Maximum stroke of tool rest plate: 2.36"(60mm)
Maximum stroke of middle plate: 5.12"(130mm)
Maximum stroke of tailstock sleeve: 2.36"(60mm)
Package size: 57.5"*24.0"*24.4"(146cm*61cm*62cm)
Net weight/Gross weight: 359LB (163kg)/424LB (192.5kg)

ProductSiteLaunchDate : 2024-05-10T08:53:41.257Z
UnspscCode : 26101200
