Specification
Brand : INTBUYING
BulletPoint : 600W 110V 220V Mini Lathe Motor 6000RPM
BulletPoint1 : DOUBLE CHUCKS: The left side of the lathe with two chucks, the concentricity of 0.03-0.05 mm,can be processed longer objects, especially in the processing of shaft and pipe part processing accuracy is higher.The design of this new lathe is a great innovation,it solves many disadvantages of other lathes in the past.High precision concentricity can help you better complete the shaft and tube processing
BulletPoint2 : POWERFUL AND EFFICIENT MOTOR: Equipped with a 1100 W brushless motor, the lathe delivers robust power while maintaining low noise levels,contributing to an efficient and pleasant working scenario with reduced energy consumption
BulletPoint3 : ROBUST CONSTRUCTION: The miniature lathe features a high-quality cast iron bed that has undergone a high-frequency quenching process, followed by precision grinding to ensure exceptional stability and extended durability for precise machining
BulletPoint4 : ADJUSTABLE SPINDLE SPEED: This engineering lathe tool offers a spindle rotation speed that is segmented into two levels within the range of 50 to 2500 rpm. The continuous speed adjustment allows for adaptable operation suitable for various machining tasks
BulletPoint5 : USER FRIENDLY CONTROL: Designed with ease of use in mind, the lathe is fitted with a one-button start and stop switch, as well as a forward and reverse switch, allowing for simple and intuitive operation, enhancing the user experience and operational efficiency
BulletPoint6 : HIGH PRECISION SPINDLE: The metal working lathe is built with a high-precision spindle and premium quality bearings that guarantee high accuracy and a prolonged service life, ensuring reliable performance and cost-effectiveness in the long run
BulletPoint7 : VERSATILE PROCESSING CAPABILITIES:The miniature lathe is specifically designed for processing a variety of rotary surfaces and rotational bodies, allowing for the machining of both internal and external cylindrical surfaces,conical surfaces,ring grooves,and shaped turning surfaces, as well as end faces and a range of inch threads
BulletPoint8 : LARGE SPINDLE BORE: The spindle bore measures 1.50" (38 mm) on the right side for larger workpieces,measures 1.26" (32mm) on the left side,the combination of these two spindle bore sizes enables the lathe to meet the needs of various machining applications
Color : Gray
ExternallyAssignedProductIdentifier : 7544283819773
ExternallyAssignedProductIdentifier1 : 760714621686
ExternallyAssignedProductIdentifier2 : 0760714621686
IncludedComponents : Base oil pan x1/ English manualx1/ Oil can x1/ Hexagon wrench x5/ Fork wrench x2/ The screwdriver x2/ Chuck jaw x6/ Chuck spanner x2/ Metal gear x12(24/30/40/48/50/52/60/60/66/70/72/75)/ Fuse x1

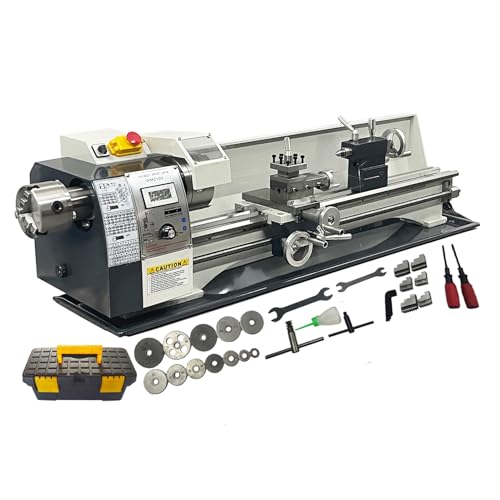

ItemName : INTBUYING Metal Lathe 8"X32" Benchtop Lathe Machine Precision Hobby DIY Table Lathe Double Chuck Horizontal Metal Wood Working Lathe 1100W Brushless 50-2500rpm Inch Thread WM210V 110V
ItemPackageDimensions_Height : 20.08 inches
ItemPackageDimensions_Length : 55.12 inches
ItemPackageDimensions_Width : 18.5 inches
ItemPackageQuantity : 1
ItemTypeKeyword : power-metal-lathes
Manufacturer : INTBUYING
Material : cast iron
MeasurementSystem : English/Standard
ModelName : WM210V
ModelNumber : WM210V
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : T028348
PowerSourceType : ac
ProductDescription : Double Chuck Imperial Metal Lathes Product Parameters
Model:WM210V
Voltage:AC110V 50/60Hz(Brushless Motor)
Power:1100W(1.5HP)
Length of center:31.50"(800mm)
Swing Over Bed:8.27"(210mm)
Concentricity tolerance:0.03mm-0.05mm
Rotary diameter of tool rest:5.51"(140mm)
Spindle bore:Right side:1.50"(38mm) Left side:1.26"(32mm)
Max clamping diameter of right chuck:4.92"(125mm)
Max clamping diameter of left chuck:3.54"(90mm)
Width of lathe bed:3.94"(100mm)
Thread standard:Inch screw thread
Number of Spindle Speeds:Infinitely variable speeds
Range of Inch Threads:10-44T.P.I
Range of metric threads:0.3mm-3mm
Spindle taper:MT5
Knife rest labour:Horizontal four-station
Spindle rotation speed:50-2500rpm
Precision of the spindle:0.01mm
Automatic feed range:0.1mm-0.2mm
Tail frame taper:MT2
Maximum stroke of tool rest plate:2.16"(55mm)
Maximum stroke of middle plate:2.95"(75mm)
Maximum stroke of bottom plate:26.77"(680mm)
Maximum stroke of tailstock sleeve:2.36"(60mm)
Package size:55.1"*18.5"*20.1"(140cm*47cm*51cm)
Net weight/Gross weight:172.0LB(78kg)/220.5LB(100kg)
Item Included
WM210V lathe *1
Base oil pan *1
English manual *1
Oil can *1
Hexagon wrench *5
Fork wrench *2
The screwdriver *2
Chuck jaw *6
Chuck spanner *2
Metal gear *12(24/30/40/48/50/52/60/60/66/70/72/75)
Fuse *1
ProductSiteLaunchDate : 2023-05-10T03:02:58.163Z
Size : Double Chuck 8''X32''
SpecificUsesForProduct : Metal/Wood/Plastic
Style : Double Chuck Metal Lathe Machine
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 23242100
Voltage : 110 volts
Wattage : 1100 watts
