Specification
Author : Misc.
Binding : plastic_comb
Brand : TECHTONGDA
BulletPoint1 : [Professional Lathe]: Used for turning, facing, drilling, boring and turning thread.High precision concentricity can help you better complete the shaft and tube processing!
BulletPoint2 : [1100W Brushless Motor]: The newly upgraded 1100W brushless motor not only gives more power but also saves you the trouble of replacing the brush.
BulletPoint3 : [Safety First]: The lathe is equipped with emergency stop switch and overload protection device, which can better protect the operator in emergency.
BulletPoint4 : [Infinitely Variable Speed]: This lathe allows both forward and reverse, with the spindle speed can be adjusted in the range of 50-2500rpm which give you the convenience to process the workpiece at will.
BulletPoint5 : [All Metal]: All the gears are made of metal and the spindle is supported by precision taper roller bearing. High quality materials make its service life longer.
BulletPoint6 : Upgrade Design:- This small metal lathe uses metal gear instead of a nylon one. Aluminum handwheel can increase service life. Automatic power-off protection switch to make it safer. An extra LED lamp can help you finish processing in places with insufficient light.
BulletPoint7 : Included Component- ‎9- Metal Gear, 1- 3 Jaw Chuck, 1- Mini lathe machine,1-Chuck Spanner, 1- Dead Center, 2-Spanners, 1- Oil Can , 1- Instruction Manual,4- Rubber Damping Pads, 9- Carbide brazed Lathe Tool
Color : Blue
ExternallyAssignedProductIdentifier : 7684579993630
ExternallyAssignedProductIdentifier1 : 0760714621709
ExternallyAssignedProductIdentifier2 : 760714621709
Genre : Manufacturing
IncludedComponents : No

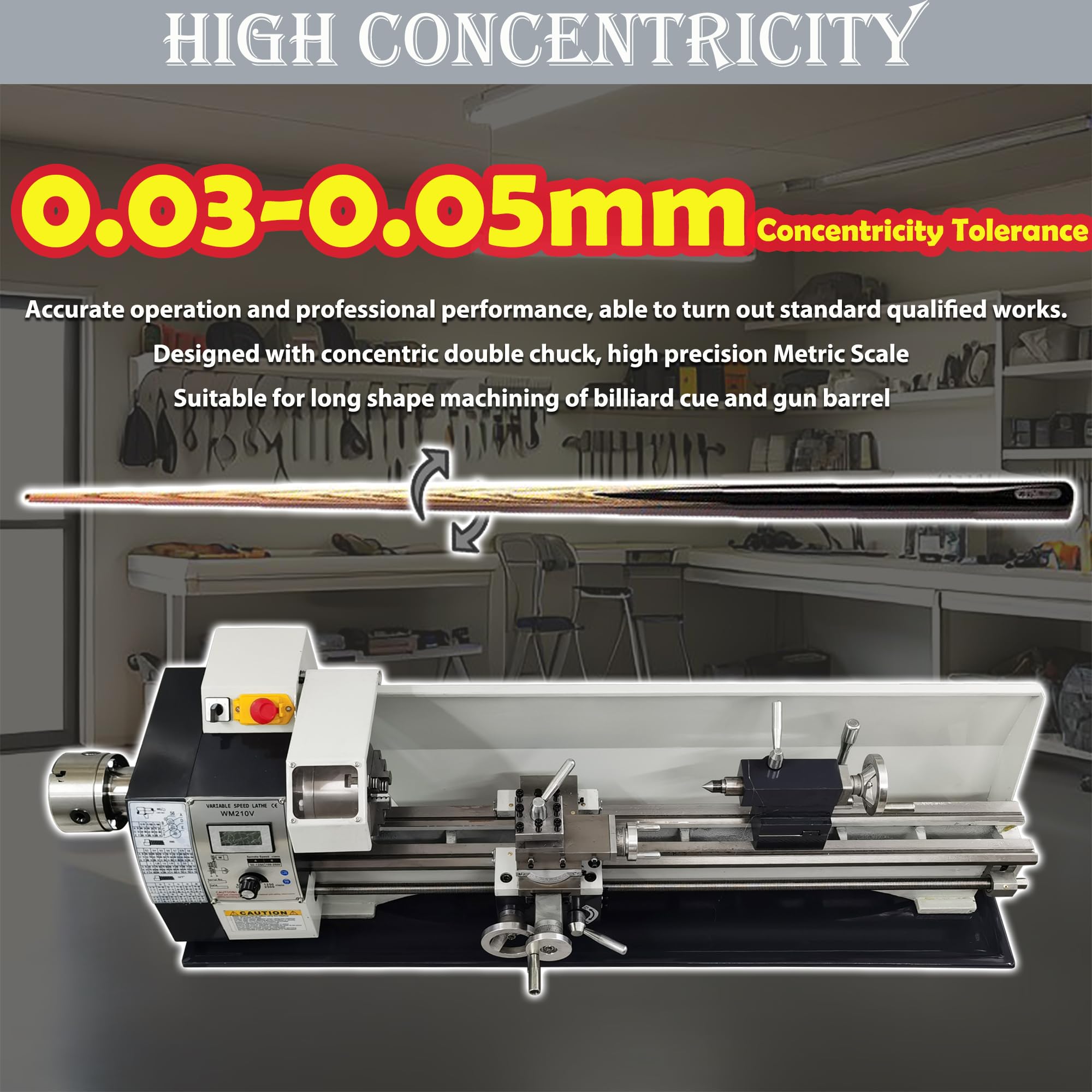

ItemName : TECHTONGDA Metal Lathe 8x31" DIY Lathe Double Chuck Bench Lathe 1100W Brushless Motor Turning Machine Precision Mini Inch Thread Lathe for Cue Sticks
ItemPackageDimensions_Height : 18.5 inches
ItemPackageDimensions_Length : 55.1 inches
ItemPackageDimensions_Width : 20.1 inches
ItemPackageQuantity : 1
ItemTypeKeyword : power-metal-lathes
Language : english
Language1 : english
Language2 : english
Manufacturer : TECHTONGDA
Material : Metal
MaximumReadingInterestAge : 100 years
ModelName : Lathe Machine
ModelNumber : Yosooze5wqsih93
NumberOfItems : 1
Pages : 64 pages
PartNumber : L028348
PowerSourceType : ac
ProductDescription : Overview:
Miniature lathe is mainly used for processing the end face of various rotary surfaces and rotating bodies. For example, turning inside and outside cylindrical surface, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used metric thread, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used Inch thread.
The design of this lathe is a great innovation, it solves many disadvantages of other lathes in the past, High precision concentricity can help you better complete the shaft and tube processing!

Parameter:
Model: WM210V
Voltage: AC110V 60Hz
Power: 1100W(1.5HP)
Length of center: 31.50"(800mm)
Swing Over Bed: 8.27"(210mm)
Concentricity tolerance: 0.03mm-0.05mm
Rotary diameter of tool rest: 5.51"(140mm)
Spindle bore: 1.26"(32mm)
Max clamping diameter of right chuck: 4.92"(125mm)
Max clamping diameter of left chuck: 3.54"(90mm)
Width of lathe bed: 3.94"(100mm)
Thread standard: Inch screw thread
Range of Inch Threads: 10-44T.P.I
Spindle taper: MT5
Knife rest labour: Horizontal four-station
Spindle rotation speed: 50-2500rpm
Precision of the spindle: 0.01mm
Automatic feed range: 0.1mm-0.2mm
Tail frame taper: MT2
Maximum stroke of tool rest plate: 2.16"(55mm)
Maximum stroke of middle plate: 2.95"(75mm)
Maximum stroke of bottom plate: 26.77"(680mm)
Maximum stroke of tailstock sleeve: 2.36"(60mm)
Package size: 55.1"*18.5"*20.1"(140cm*47cm*51cm)
Net weight: 172.0LB(78kg)
Gross weight: 220.5LB(100kg)
ProductSiteLaunchDate : 2023-05-10T05:32:24.692Z
PublicationDate : 1900T
ShipsGlobally : 1
Size : ‎7" X 14" Benchtop Lathe, 550W
Style : Mini Metal Lathe
SubjectKeyword : 'craftsman', 'manual'
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 23242100
Voltage : 110 volts
Wattage : 550 watts
