Specification
Amperage : 2.18 amps
BaseType : Fixed
Brand : DIFU
BulletPoint1 : ✿【Wide Application】The 4 Axis 6090 Engraving Machine can be applied for Woodworking industry like sculpture, round carving, wooden handicraft processing, or other industries like advertising signs, logo making, cutting acrylic, plastic molding, aluminum cutting, etc.
BulletPoint2 : ✿【Advantages of Water Cooling】The water cooling system can cool the spindle and protect the engraving machine, work longer time than air cooled motor. It has higher stability and better concentricity than air cooled motor. Can engrave the high hardness or metal. It can improve the efficiency and accuracy of the machine.
BulletPoint3 : ✿【Advantages of Water Cooling】The water cooling system can cool the spindle and protect the engraving machine, work longer time than air cooled motor. It has higher stability and better concentricity than air cooled motor. Can engrave the high hardness or metal. It can improve the efficiency and accuracy of the machine.
BulletPoint4 : ✿【High Performance】The NEW 2.2KW water-cooled VFD is available operating for long time, which can reinforced the processing ability of the machine and can be used to engrave on aluminum alloy and hard wood.
BulletPoint5 : ✿【Main Parameters】Outside dimension:1150x970x650mm(LxWxH); Working platform size:1045x720mm(LxW); Max. Feeding height:≤140mm(From baseof Z axis to platform); Stepping motor: two-phase 3A (with handwheels); Driving Power for Stepping motor:AC110,240W, Output DC24V10A; Maximum Idles peed:1500mm/m; Working Speed:50-1500mm/min (different material with different speed settings); Spindle motor:2200Whigh-speed variable frequency spindle motor, ER20 chuck , matching 6mm bur
Color : Without Engraving Machine Handle
ExternallyAssignedProductIdentifier1 : 0738631496205
ExternallyAssignedProductIdentifier2 : 738631496205
ExternallyAssignedProductIdentifier3 : 00711331043184
FinishType : Powder Coated
GpsrSafetyAttestation : 1
IncludedComponents : Lock

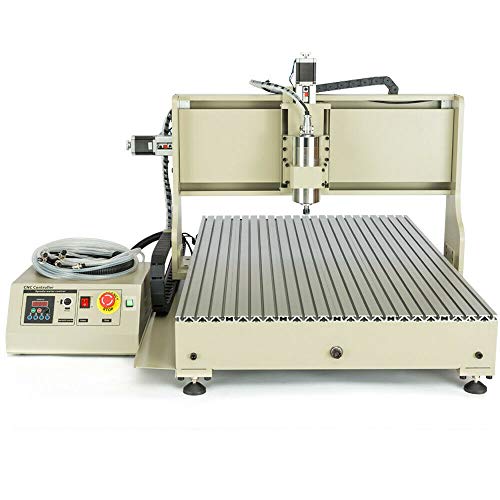

ItemName : 4 Axis Router Engraver USB CNC 6090, 2.2KW Engraving Drilling Milling Machine 3D Driller Ball Screw
ItemPackageDimensions_Height : 35 centimeters
ItemPackageDimensions_Length : 96 centimeters
ItemPackageDimensions_Width : 60.5 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : power-milling-machines
Manufacturer : ENICE
Material : Aluminum
Material1 : Plastic
Material2 : Metal
MaximumRotationalSpeed : 24000 rpm
ModelNumber : 6090
NumberOfItems : 1
PackageLevel : unit
PartNumber : ENICE-US
PowerSourceType : Corded Electric
ProductDescription :

4 Axis 6090 Desktop CNC Router Engraver Milling Machine Engraving Drilling AC110V USB Interface

Specification:

Outside dimension:1150x970x650mm(LxWxH)

Working platform size:1045x720mm(LxW)

Max. Feeding height:≤140mm(From baseof Z axis to platform)

Stepping motor: two-phase 3A (with handwheels)

Driving Power for Stepping motor:AC110,240W, Output DC24V10A

Maximum Idles peed:1500mm/m

Working Speed:50-1500mm/min (different material with different speed settings)

Spindle motor:2200Whigh-speed variable frequency spindle motor, ER20 chuck , matching 6mm bur

Variable-frequency Drive(VFD):AC110V, 2200W, 0-400Hz(built-in Control box )

(tips：1.The spindle motor must connect with the VFD.2.It cannot directly connect with the supply voltage (AC110V/220V). 3.Please don’t change the data setting of the VFD.)

Drive ofStepping motor: 0-3.5A adjustable four-axis drive

Repositioningprecision:≤0.05mm

Speed:0-24000r/m

Cooling method:Water cooling, Matching heat dissipation water pump

Spindle precision:Radial runout≤0.03mm

Carving command:G code/TAB file/nc/TAB /NCC/file

Protection: Emergency stop button

Gross weight of machine:About 145kg/320lb　

Update function:with limit switch



How to use:

1.Assembling machine on steady desk well.

2.Place the control box in a clean and ventilated dry place.Connecting the control box with the machine and you computer. Don't suspend the cable which connect the Spindle motor with axis(X,Y,Z,A).

3.Correctly install the Spindle motor and the heat pump. The heat pump should be covered completely in the water, then turned on the electric current to check whether the water-cooling system working well.

4.Before turnon the machine, please check all the cable and water- cooling system to makesure they are working fine. Please Note: no software included.

ProductSiteLaunchDate : 2020-07-29T03:11:47.467Z
StreetDate : 2017-09-21T00:00:01Z
Style : Compact
UnitCount : 1
UnspscCode : 27112700
Voltage : 110 volts
