Specification
Brand : BUBUQD
BulletPoint1 : Model: JK-130B/JK-90
BulletPoint2 : Right angle gearbox rotation axis
BulletPoint3 : The 4th axis With K12-130MM 4 Jaw Centring Chuck
BulletPoint4 : Tailstock Center Height: 92mm
BulletPoint5 : CNC 4th axis with Tailstock Simple structure, high precision, with self-centering chuck, suitable for processing wood, metal, jade and so on.
Color : Metallic
ExternallyAssignedProductIdentifier : 4374253438610
ExternallyAssignedProductIdentifier1 : 0713929929245
ExternallyAssignedProductIdentifier2 : 713929929245
IncludedComponents1 : 3'' Rotary Table
IncludedComponents2 : 65mm 3 Jaw self centering chuck
IncludedComponents3 : Back plate with T- nuts & Bolts

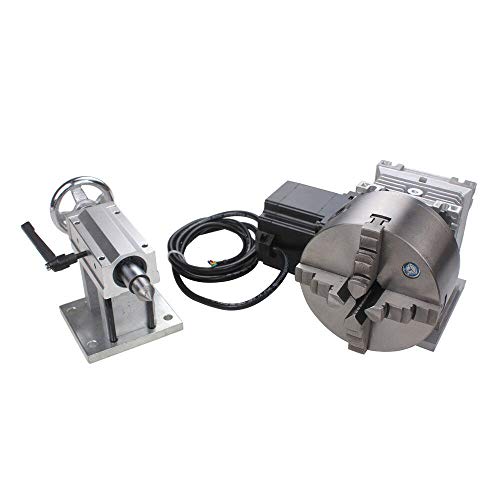

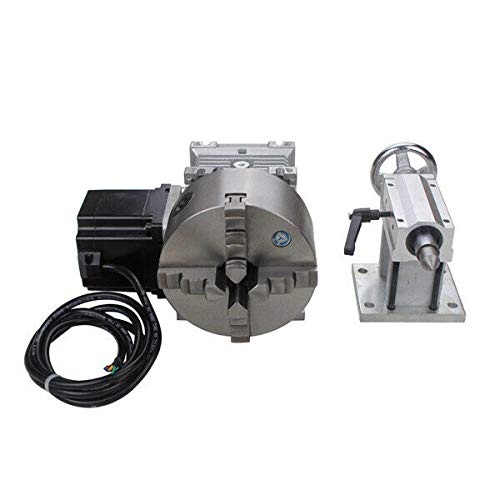

ItemName : BUBUQD CNC Gearbox Router Rotary A 4th Axis 4 Jaw 130mm Chuck With Tailstock 20:1 Engraving Machine
ItemPackageDimensions_Height : 10 inches
ItemPackageDimensions_Length : 10 inches
ItemPackageDimensions_Width : 10 inches
ItemPackageQuantity : 1
ItemShape : Round
ItemTypeKeyword : power-milling-machines
LeagueName : Indian Premier League
Manufacturer : BUBUQD
Material : Metal and others
MaximumRotationalSpeed : 12000 rpm
MeasurementSystem : English
ModelName : Rotary Combo
ModelNumber : 3849
NumberOfItems : 1
PartNumber : 2190108
PowerSourceType : hand_powered
ProductDescription : Product Description

Gearbox rotation axis :

Center height：92MM
Total height:150MM
Motor：Nema34 2-phase 4-wire 86 stepper motor,4.2A
Motor length: 76 mm
Install mounting hole width 80 mm,M8 screws
Mounting holes Diameter: 8.8mm
Reducing ratio：20：1
Weight:about 15KG

Tailstock:

Tailstock:Manual tailstock
Product weight: aoubt 2.4kg

Fourth axis pulse equivalent setting

Basic parameters setting:
Pulse for 1 rotating degree(Pulse for 1 circle of motor shaft * driver subdivision) / circumference.

For example, two-phase motor, 8 subdivision, reduction ratio 20, (200 * 8 * 20 = 32000)

1. Weaver system settings according to the length of the chart or the length of the calculation
(Perimeter 100 mm) / 32000 = 0.003125 (pulse)

2.Mach3 set by the angle: 360 degrees a circle
32000 / 360 (degrees) = 88.88888888 (pulse)

3. Weihong system settings: 360 degrees a circle
360 (degrees) / 32000 = 0.01125 (pulse)

4.Mach3 Set by graph length or perimeter
32000 / (perimeter 125.6 mm) = 254.777 (pulse)

What's in box?

1 X Gearbox rotation axis with 130mm 4 jaw Chuck
1 X 92mm Manual tailstock

ProductSiteLaunchDate : 2019-08-23T08:58:30.048Z
Size : 3" inch - 80mm
Style : Plain
SupplierDeclaredDgHzRegulation : not_applicable
TeamName : India
UnitCount : 1
Voltage : 48 volts_of_direct_current
