Specification
Brand : YunKia
BulletPoint1 : Why should choose 3D touch probe of YunKia? sharp tools make good work! ✔
BulletPoint2 : Need to turn on the spindle speed? Never, never, never! ✔
BulletPoint3 : Working voltage: DC 5-24V
BulletPoint4 : Touch point sensor: power on green, trigger red!
BulletPoint5 : Compatible with Mach3 and GRBL
Color : Metallic
CutType : Center Cut
ExternallyAssignedProductIdentifier : 9010491797601
ExternallyAssignedProductIdentifier1 : 0753459881545
ExternallyAssignedProductIdentifier2 : 753459881545
FinishType : Ground
GpsrSafetyAttestation : 1
Horsepower : 3 horsepower
ItemDisplayWeight : 15 kilograms

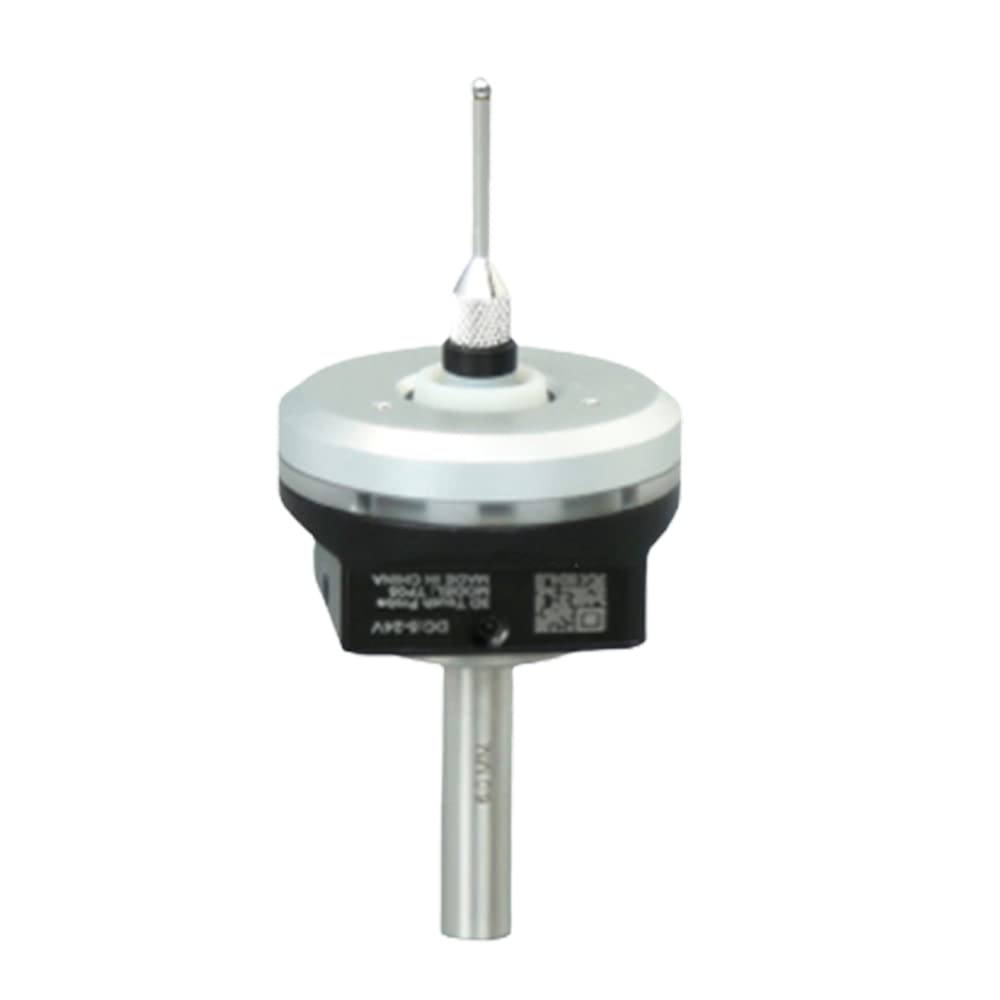

ItemName : CNC 3D Touch Probe Edge Finder to find The Center Desktop CNC Probe Compatible with mach3 and grbl (Edge Finder)
ItemPackageDimensions_Height : 40.64 centimeters
ItemPackageDimensions_Length : 20.32 centimeters
ItemPackageDimensions_Width : 40.64 centimeters
ItemPackageQuantity : 1
ItemShape : ROUND
ItemTypeKeyword : power-milling-machines
Manufacturer : Changwei
Material : Aluminum
ModelNumber : RT748
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : CW2206
ProductDescription : Deflection refers to the difference in projection between the center point of the stylus and the trigger center point in the measurement direction


①If you find the center of the circle and find the relative measurement,you don’t need to calculate the yaw value


②If it used for edge finding,it is necessary to add or subtract the stylus deflection value to the measurement the stylus deflection value to the measured value


Calculation method of probe yaw
1.Place a gauge or rectangular workpiece on the table
2.Use the probe to measure the value of value of each surface in the X direction
3.Deflection value =(X2-X1-workpiece length-ball head diameter)/2
ProductSiteLaunchDate : 2022-04-07T19:30:37.910Z
ShipsGlobally : 1
Size : Edge finder
Speed : 24000 rpm
Style : Rotary Table
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 27112800
Voltage : 220 volts
