Specification
Brand : NJBVRS
BulletPoint1 : Chuck Piece Length: Arbor parts 35mm
BulletPoint2 : Part chuck diameter: 16mm
BulletPoint3 : Motor length: 203mm (including socket parts and motor)
BulletPoint4 : Spindle eccentricity of about: 0.01-0.03.
BulletPoint5 : It can be used for metal or non-metal engraving and other materials.
Color : 500wer16 and Bracket
ExternallyAssignedProductIdentifier : 7503025869216

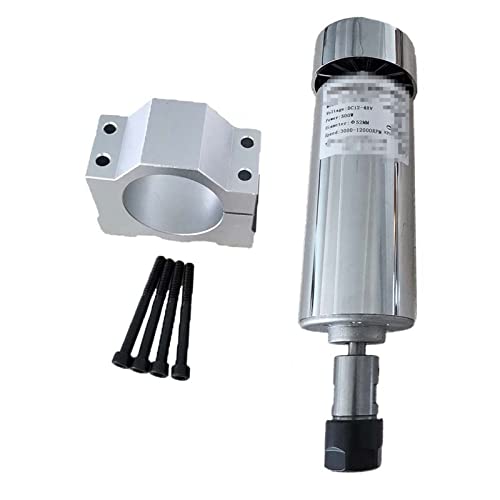

ItemName : CNC Air Cooled Spindle Motor 200W 300w 400w 500w Spindle Motor 48VDC ER11 ER16 Air Cooled Spindle High Speed Spindle Brush PCB Engraving Machine and Bracket(500WER16 and bracket)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : power-milling-machines
Manufacturer : NJBVRS
ModelName : 32798012184
ModelNumber : 32798012184
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : 32798012184
ProductDescription : Details:
Package include:
1 PCS x 200W spindle motor (ER11-3.175MM or ER16-8MM)
1pcs x spindle bracket
Speed: 3000-12000RPM (12V-3000rpm, 24V-6000rpm, 36V-9000rpm. 48V-12000rpm)
Torque: 300mN.m
Insulation Resistance:> 2 megohms
Dielectric strength: 400V
Diameter: 52mm
Chuck Piece Length: Arbor parts 35mm, (including nuts and sandwich 43mm)
Part chuck diameter: 16mm
Motor length: 140mm (including socket parts and motor)
Spindle eccentricity of about: 0.02-0.03.
Display seiz:
Details:
Package include:

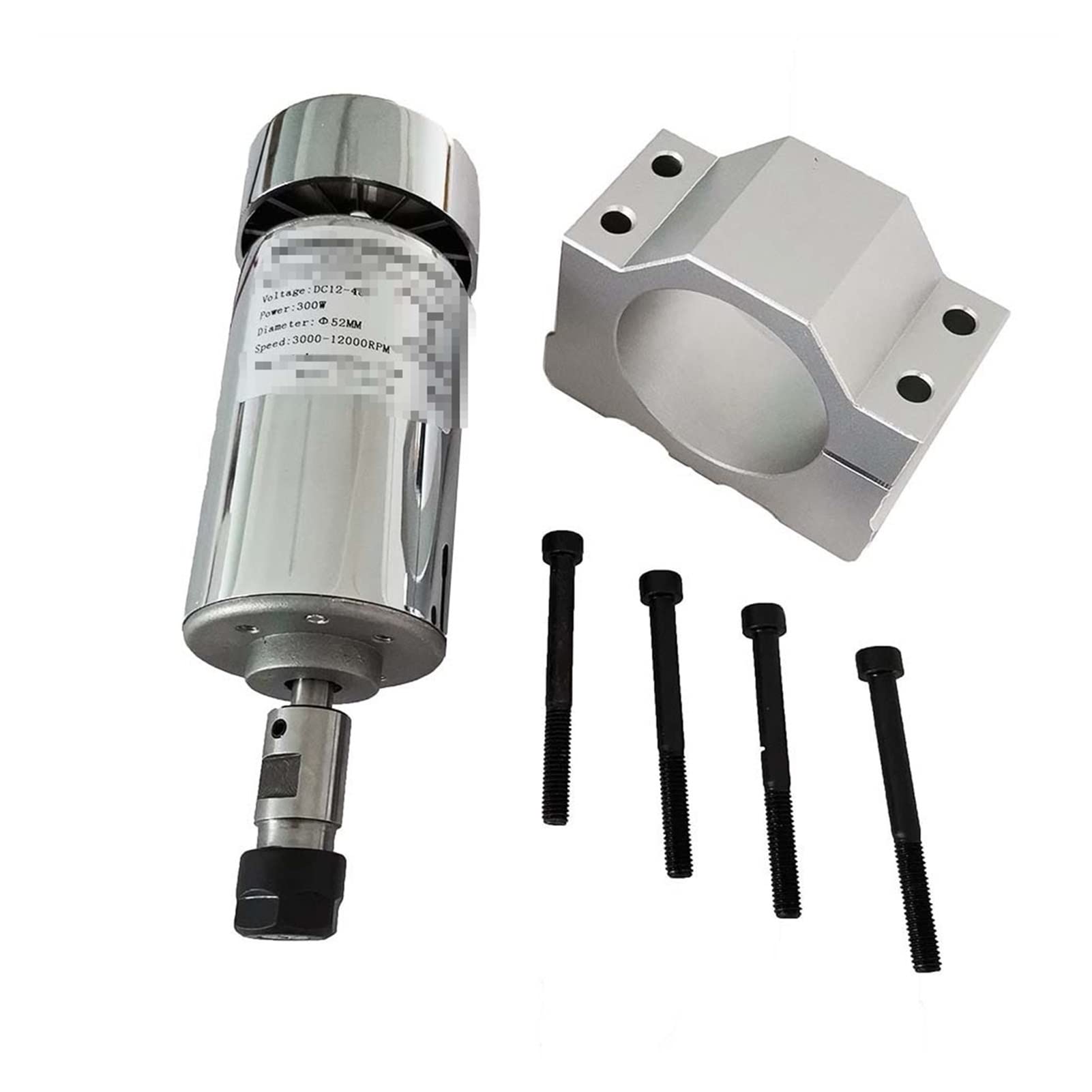

1 PCS x 300W spindle motor (ER11-3.175MM or ER16-8MM)
1pcs x spindle bracket (include 4pcs screw)
Working voltage: 12-48VDC
Rotation speed: 3000-12000r / min
Power: 300W
Torque: 400mN.m
Insulation resistance:> 2 Megohm
Dielectric strength: 400V
Motor length: 175mm
Diameter: 52mm
Caliper Axis Length: 48mm
Axis diameter pick up holder: 16mm
Repeat accuracy: 0.01-0.05mm
ER11 collect: 3.175
Product show:
Package include:
1 PCS x 400W spindle motor (ER11-3.175MM or ER16-8MM)
1pcs x spindle bracket (include 4pcs screw)
Working voltage: 12-48VDC
Power: 400W
Speed: 3000-12000RPM (12V-3000rpm, 24V-6000rpm, 36V-9000rpm. 48V-12000rpm)
Torque: 500mN.m
Insulation Resistance:> 2 megohms
Dielectric strength: 400V
Diameter: 56mm
Chuck Piece Length: Arbor parts 35mm
Part chuck diameter: 16mm
Motor length: 203mm (including socket parts and motor)
Spindle eccentricity of about: 0.01-0.03.
It can be used for metal or non-metal engraving and other materials.
Display seiz:
Details:
Package include:
1 PCS x 500W spindle motor (ER11-3.175MM or ER16-8MM)
1pcs x spindle bracket (include 4pcs screw)
Display seiz:
Working voltage: 12-48VDC
Power: 500W
Speed: 3000-12000RPM (12V-3000rpm, 24V-6000rpm, 36V-9000rpm. 48V-12000rpm)
Torque: 550mN.m
Insulation Resistance:> 2
ProductSiteLaunchDate : 2025-03-11T03:23:11.724Z
Size : One Size
UnitCount : 1
UnspscCode : 27110000
