Specification
Brand : CNCTOPBAOS
BulletPoint1 : Technical Parameters: Power is 4.5 KW; Operating Speed:10-18000 rpm; Frequency:300 Hz; Voltage:220 V; Collet: ER32; Bearings: 4 bearings; Lubrication: Grease; Current:14 A; Runout off: less than 0.01 mm
BulletPoint10 : Protection for users with metal sheet sides to deflect chips
BulletPoint2 : Advantages: Aluminum profile body, not easy to deform, anodized surface treatment, shell not affected by time, fast heat dissipation design, with its own cooling fan and good cooling effect
BulletPoint3 : High quality bearings: The spindle motor is equipped with 4 bearings, which are characterized by high precision, high hardness, rust prevention, durability and long service life
BulletPoint4 : ER32 standard collet:the collet is quenched with manganese steel, the runout is less than 0.002 mm, the accuracy is high, the tool is not easy to break, the stability in the working process is improved, and the dynamic balance technology can effectively reduce the noise in the use process
BulletPoint5 : Main applications: The spindle is widely used on cnc router,engraving machine and milling machine,can work on Wood, Aluminum, Stone, Metal, PVC industry etc
BulletPoint6 : Stop roller to guide along pipes for easy weld seam preparation
BulletPoint7 : Bail handle adjusts without tools for secure, even guiding
BulletPoint8 : Metabo Long-life motor with patented dust protection for long service life
BulletPoint9 : Electronic overload protection, soft start and restart protection
Color : Green, Black, Silver
CustomerPackageType : Standard Packaging
ExternallyAssignedProductIdentifier : 5203082784119
ExternallyAssignedProductIdentifier1 : 4007430298485
ExternallyAssignedProductIdentifier2 : 04007430298485
Horsepower : 4.5 kilowatts
IncludedComponents : Spindle
IncludedComponents1 : Tool
IncludedComponents2 : Torx 15 driver
IncludedComponents3 : 4mm hex key
IncludedComponents4 : 3 SQ4 carbide inserts
IncludedComponents5 : carrying case

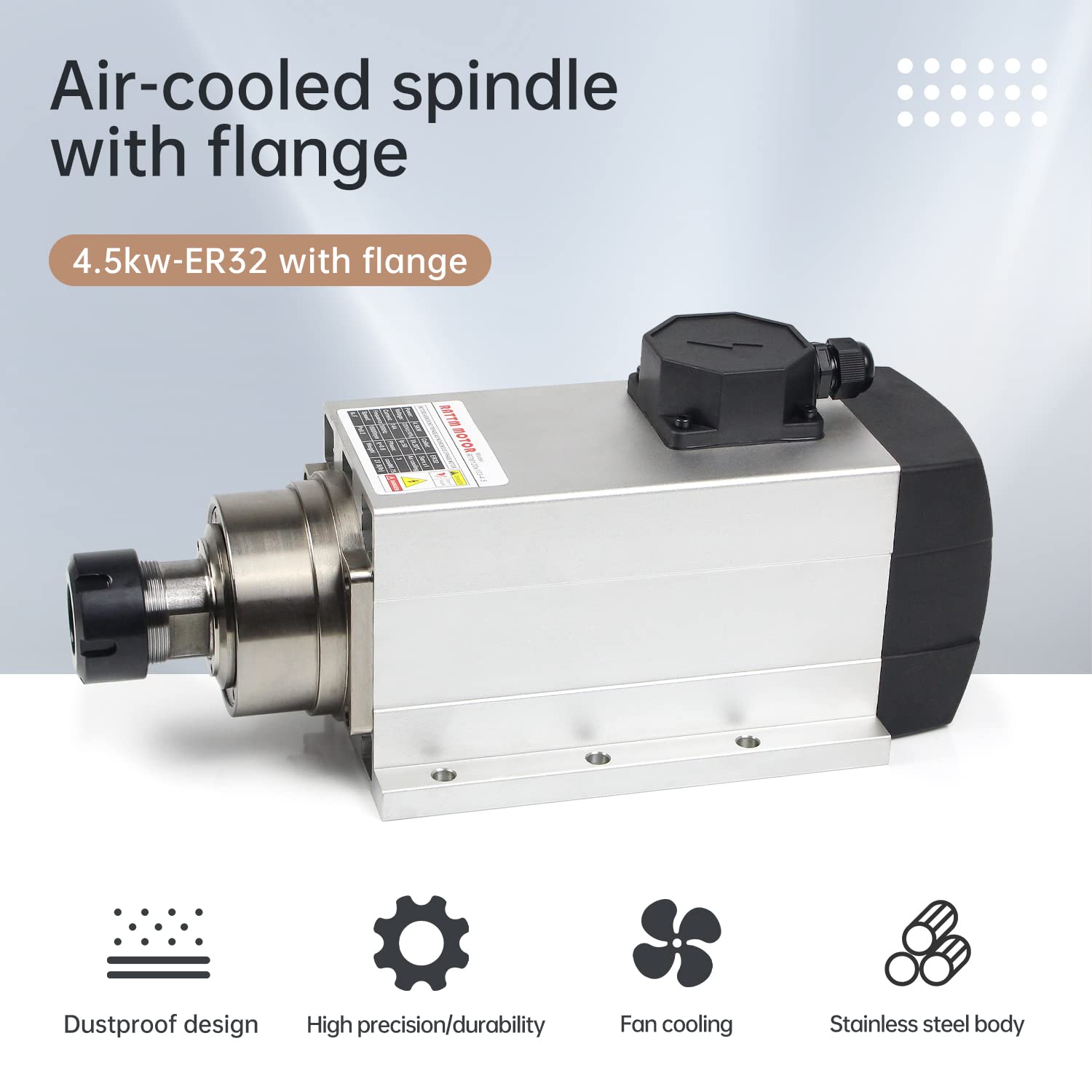

ItemName : CNCTOPBAOS 4.5KW Air Cooled Spindle Motor,CNC Spindle Square Flange High Speed 18000rpm ER32 4 Bearings 220V 300Hz 14A for CNC Router Milling Machine Engrave Wood,PCB,PVC,Stone or Aluminum etc
ItemPackageDimensions_Height : 44.45 centimeters
ItemPackageDimensions_Length : 26.67 centimeters
ItemPackageDimensions_Width : 26.67 centimeters
ItemPackageQuantity : 1
ItemShape : Rectangular
ItemTypeKeyword : power-milling-machines
Manufacturer : Changzhou Rattm Motor Co.,Ltd
Material : Aluminum
MaximumRotationalSpeed : 12000 rpm
MinimumSpeed : 12000 rpm
ModelName : KFM 16-15 F
ModelNumber : KFM 16-15 F
NumberOfItems : 1
PackageLevel : unit
PartNumber : 4.5-220
PowerSourceType : Manual
ProductDescription :

Package Include:

1 x Square 4.5KW Air Cooled Spindle Motor ER32 (220V,18000rpm,4 bearing,300Hz)

Specification:

Material: Stainless Steel

Power: 4.5Kw

Voltage: 220VAC

Current: 14A

Frequency: 0-300Hz

Speed: 10-18000rpm

Cooling: Air-cooled

Runout off: Less than 0.01mm

Bearing Lubrication: Grease

Collet size: ER32

Bearings: 4 bearings

Net Weight: 12.6kg

Main application: Wood, Aluminum, Stone, metal, glass, PVC industry

Wirings:

The spindle’s terminal"U1"connect inverter’s"U"spindle’s terminal"V1"connect inverter’s"V"spindle’s terminal "W1" connect inverter’s "W"

Note:

because this spindle is high speed type,so spindle must run above 9000rpm,and spindle must start at 400Hz to run.

ProductSiteLaunchDate : 2019-07-01T07:00:00.000Z
RecommendedUsesForProduct : Deburring, beveling, weld seam preperation
Size : 4mm
SpecificUsesForProduct : Grinding
Speed : 18000 rpm
Style : 4.5KW
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 26101200
Voltage : 220 volts
Wattage : 1550 watts
