Specification
Brand : CNCTOPBAOS
BulletPoint1 : Function: This high-precision 3D edge finder can realize quick centering, edge finding, center finding, shape measurement and other functions, with an accuracy of 0.001 mm; It has excellent 3D performance, can measure three-dimensional surfaces, can select channels, and has a working distance of up to 3 m; It is suitable for 3D measurement of various machining centers
BulletPoint2 : Specification: Probe thread: M3; Probe ball head: φ3MM ruby; Probe stroke: XY±: 20° Z-: 3mm (Safty stroke: XY± 15°;Z- 3mm); Protection level: IP67; Trigger force: 1Nm; Indicator light: NC/normally closed/lit when triggered; Signal allows current<50ma;Output mode: NO/normally open;Weight: 328g
BulletPoint3 : Material: The needle rod of this product is made of tungsten steel, the needle holder is made of 304 stainless steel, and the housing is made of aluminum alloy; The needle tip is made of ruby,which has extremely high hardness,making it highly wear-resistant and able to maintain stability and accuracy during long-term use;It can achieve a measurement accuracy of 0.001mm and is suitable for various precision measurement tasks, achieving optimal performance and delaying service life
BulletPoint4 : Advantages: waterproof grade IP67, can work in the coolant spray environment, good sealing, oil and dust resistance; This wired probe adopts Type-C quick plug interface output and is equipped with 3M 2-core output signal cable;It can effectively reduce machine downtime, automatic fixture, workpiece calibration, and rotation axis setting, eliminate manual setting errors, reduce scrap rates, improve productivity, and increase the flexibility of batch product size
BulletPoint5 : Support offline or wired work: When working offline, it can be used as a photoelectric splitter rod; When working with wires, it can be used in conjunction with various CNC systems for automatic centering
Color : Silver
ExternallyAssignedProductIdentifier : 7502982153192
ItemName : CNCTOPBAOS High Precision 3D Edge Finder 0.001mm NO,Waterproof CNC Machining Center Trigger Touch Probe,Milling Machine Automatic Find Center Position Locator,XYZ Coordinate Tool Setter Measuring+Tip
ItemPackageDimensions_Height : 4.7 inches
ItemPackageDimensions_Length : 5.51 inches
ItemPackageDimensions_Width : 2.55 inches
ItemPackageQuantity : 1
ItemTypeKeyword : power-milling-machines
Manufacturer : Changzhou Rattm Motor Co.,Ltd
Material : Tungsten steel+stainless steel
ModelName : Vayne8.19.20
ModelNumber : Vayne8.19.20
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : W-500
ProductDescription :

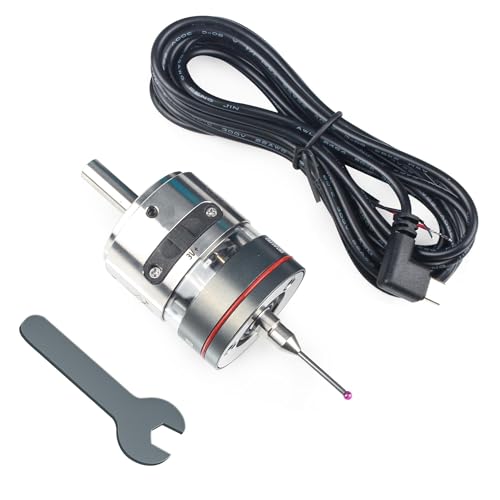

Package included:

1x 3D Edge Finder

1x Ruby tip

1x Connecting Cable

1x Wrench

PDF. user manual

Material: 304+7075 Tungsten Steel+Aluminum Alloy

Edge finder outer diameter: 42mm

Probe thread: M3

Probe length: standard configuration 30mm

Probe ball head: φ3MM ruby

Clamping diameter/length: 10mm / 25mm

Repetitive accuracy: 0.001mm

Probe stroke: XY± 20° Z- 3mm

Wired transmission distance: 3m

Offline work/Wired work: ALL YES

Connection method wired connection distance: <3m

Waterproof: IP67

Output mode: NO(Normally Open)

Indicator light: Normally closed(lit when triggered)

Signal allows current: ＜50ma

Trigger force: 1Nm

ProductSiteLaunchDate : 2025-01-02T05:37:45.009Z
Size : 220
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 27110000
