Specification
AgeRangeDescription : adult
Amperage : 3.5 amps
Brand : Tihdzpqvc
BulletPoint1 : 【Easy to Use】No need for water pressure, 1kg air pressure can be sprayed.
BulletPoint2 : 【Saving Time】Not only improve machining cutting speed and save time, but also reduce machining cost and tool wear.
BulletPoint3 : 【Save Money】More than 80% of coolant can be saved during processing, and the cooling effect is no less than conventional water cooling.
BulletPoint4 : 【Sprayable Media】Water, alcohol, coolant, engine oil, kerosene, cooking oil.
BulletPoint5 : 【Tip】Customers need to prepare their own air compressor (air pressure 2KG-8KG) connected to use.
BulletPoint6 : 【Widely used】Aluminum alloy pipes for construction scaffolding, square tubes for metal stainless steel rib display racks, aluminum trays for new energy electric vehicle batteries, aluminum door and window frames, and display cabinets for refrigerators in the refrigeration industry.
Color : Clear + Blues
DrillType : drill_press
ExternallyAssignedProductIdentifier : 6419787127062
ExternallyAssignedProductIdentifier1 : 763492594906
ExternallyAssignedProductIdentifier2 : 0763492594906
IncludedComponents : 1* Milling Machine Draw Bar
IncludedComponents1 : Pneumatic cooling spray*2
IncludedComponents2 : Solenoid valve*1
IncludedComponents3 : Air filter*1

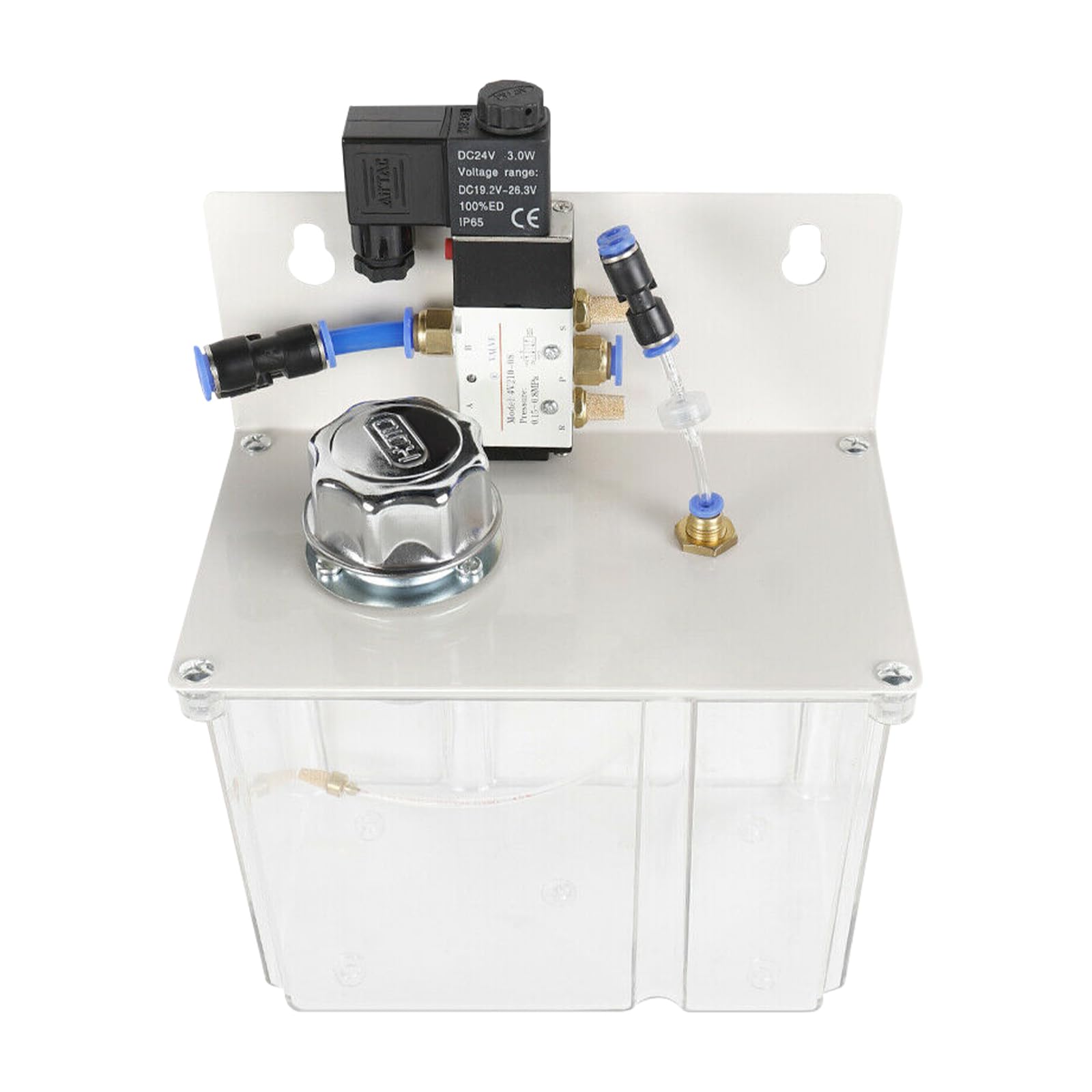

ItemName : Coolant Cooling Spray Pump Kit, Self-priming Micro-mist Machine, Cutting Cooling Spray Pump, for CNC lathe Milling Drilling Machine
ItemPackageDimensions_Height : 4.92 inches
ItemPackageDimensions_Length : 9.49 inches
ItemPackageDimensions_Width : 7.68 inches
ItemPackageQuantity : 1
ItemTypeKeyword : power-milling-machines
LeagueName : /
Manufacturer : Tihdzpqvc
Material : iron shell + engineering plastic
MaximumRotationalSpeed : 3000 rpm
ModelName : Cutting Cooling Spray Pump Mist
ModelNumber : 010
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : 010
PowerSourceType : air_powered
ProductDescription :

How to use:

1. The gas pipe of the air pump intakes air from the air inlet marked IN the air filter. Air is released from the OUT outlet, and then connected to the solenoid valve with two copper mufflers on the end of the intake.

2. The complimentary blue gas pipe should be plugged into the AIR inlet connected to the sprayer from the end of the solenoid valve with a plug. One end of the complimentary transparent tubing is connected to the check valve on the tank and the other end is inserted directly into the OIL suction port of the sprayer.

3. Machine tool PLC access to the solenoid valve coil, using PLC program to control the opening and closing of the solenoid valve. Solenoid valve open, on the ventilation spray; The solenoid valve is closed, and the gas is not sprayed.

(If you want the power supply to work, you need to connect the PLC equipment or automatic signals to the solenoid valve:

The connection method is two parallel in the solenoid valve coil, is connected to the positive and negative poles, the two contacts are not positive or negative. A separate contact on the side is grounded to prevent static electricity.

Product Parameter:

Size:

Tank: 24.1*19.5*12.5cm（9.49*7.68*4.92inch）

The electromagnetic valve: 11.8cm（4.65in）

Air filter: 19.5cm（7.68in）

Weight: 2.45kg（5.4lb）

Material: Fuel tank: resin material

Fuel tank cover: A3 iron

Sprayer, solenoid valve: aluminum alloy

Air filter: iron shell + engineering plastic

Product Features：

1、Sprayable medium: water, alcohol, coolant, engine oil, kerosene, cooking oil.

2、No water pressure required, 1KG air pressure can be sprayed.

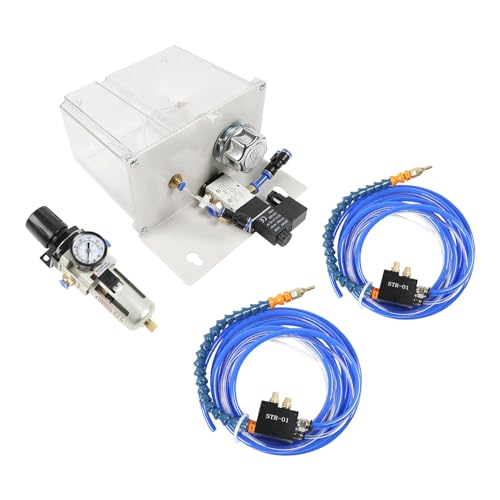

Packing List：

Pneumatic cooling spray*2

Solenoid valve*1

Air filter*1

ProductSiteLaunchDate : 2024-12-12T03:37:07.253Z
Size : 24.1*19.5*12.5cm（9.49*7.68*4.92inch）
Style : CNC Router Machine TTC450 Pro with Dust Collector
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
TeamName : /
UnitCount : 1
UnspscCode : 40151500
Voltage : 380 volts
Wattage : 2.2 kilowatts
