Specification
AgeRangeDescription : adult
Brand : KACOME
BulletPoint1 : Rotation: Spindle motors provide high speed stable rotation.
BulletPoint2 : Machining: The accuracy of the spindle motor directly affects the accuracy of the machined workpiece
BulletPoint3 : Application: Adapt to a variety of application scenarios
BulletPoint4 : Features: all size light weight
BulletPoint5 : Installation: Simple installation easy operation
Color : One Color
ExternallyAssignedProductIdentifier : 7614569819657

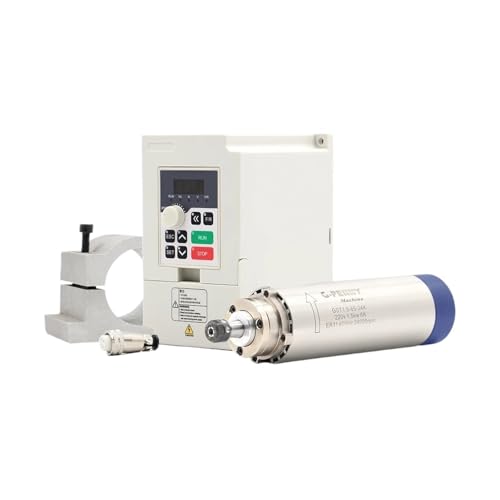

ItemName : KACOME 1.5kw ER11 air-Cooled Spindle 24000rpm air-Cooled 400Hz 4 Bearings 65x204mm & 1.5kw / Inverter & 65mm Stand(220v)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : power-milling-machines
Manufacturer : KACOME
ModelName : KACOME
ModelNumber : KACOME
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : KACOME
ProductDescription : 1&220vAC 15kw ER11Air Cooled Spindle Motor 65mm 4 Bearings
1&220vAC 15kw Inverter
1 x 65mm spindle bracket

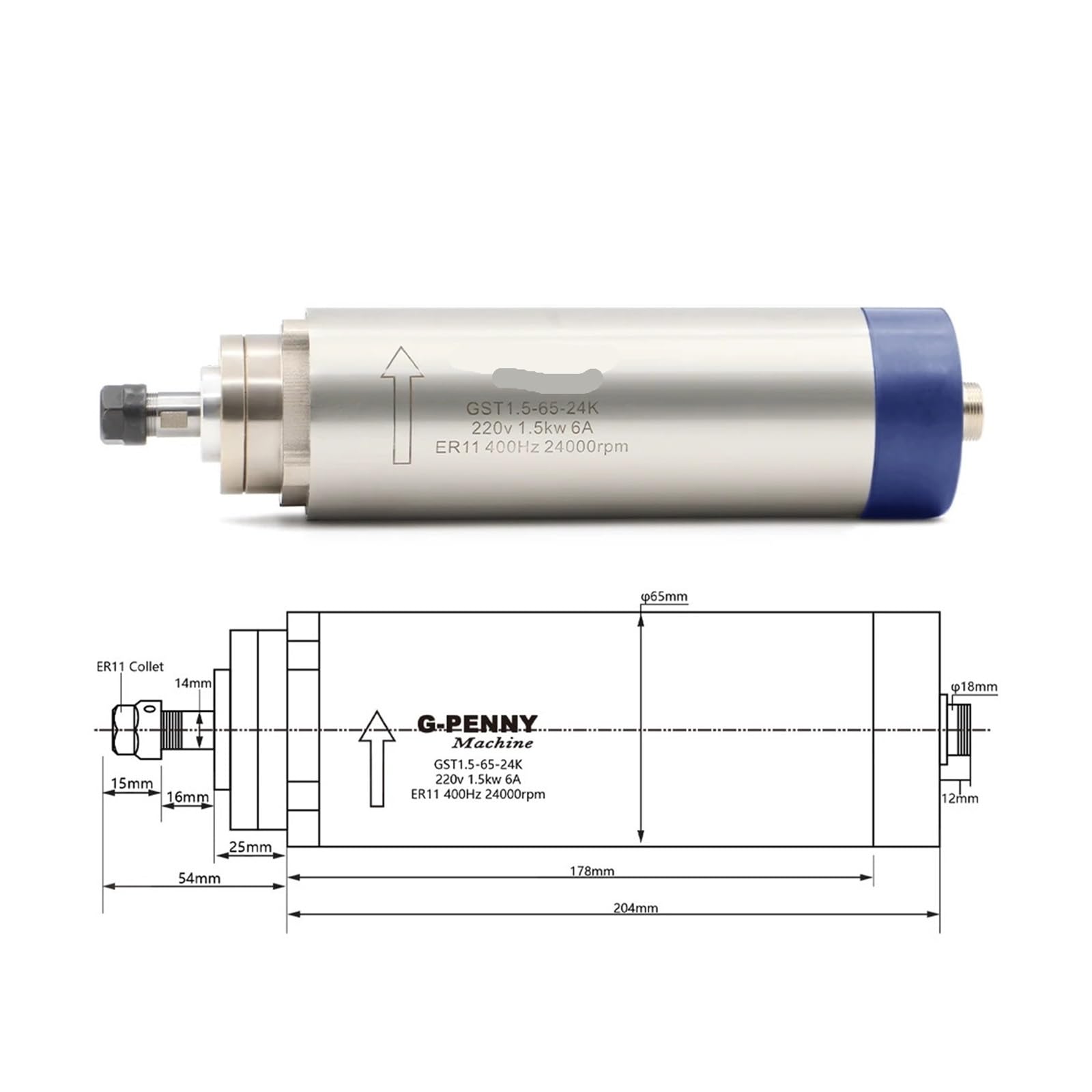

Dimensions 65 x 204mm Body diameter 65mm; Length: 204mm)
Speed regulation mode: through the three-phase output frequency converter, adjust the frequency converter to change the spindle speed.
Cooling method: air-cooled
Power:1.5kw(1HP=0.735kw)
Voltage: 220vAC
Current:6A
Frequency: 0-400 Hz
Speed: 0-24000rpm
Deviation: 0.01 mm
Bearing type: 2X7000C P4 DT and 2X7002C P4 DT full angular contact bearings
Collet: ER11
Power: 1.5 kW
Input voltage: 220 V (±20)
Input Phase: Single phase or three phase
Input Frequency: 50-60 Hz (±5 Hz)
Output voltage: 220 V
Output phase 3-phase
Output Current: 7A
Output Frequency: 0-1000Hz
Control mode: V/F control V/F control; open-loop flux vector control
==========
Certification: CE
Drive : Motor
Maximum torque : 0.46Nm
Running Speed : 0-24000rpm
Model : 1.5kw ER11 65mm air-cooled spindle motor
Application : Milling
Dimensions : 65x204 mm (65 mm diameter)
Voltage : 220V
Current : 6A
Power : 1.5kw
Cooling: air-cooled
Bearing type: 2X7000C P4 DT and 2X7002C P4
Collet: ER11
Frequency: 400 Hz
Collet range : 1-7mm (including 1/8,1/4)
ProductSiteLaunchDate : 2024-10-25T08:47:08.083Z
Size : 220v
UnitCount : 1
UnspscCode : 52140000
