Specification
AgeRangeDescription : adult
Brand : KACOME
BulletPoint1 : Rotation: Spindle motors provide high speed stable rotation.
BulletPoint2 : Machining: The accuracy of the spindle motor directly affects the accuracy of the machined workpiece
BulletPoint3 : Application: Adapt to a variety of application scenarios
BulletPoint4 : Features: all size light weight
BulletPoint5 : Installation: Simple installation easy operation
BulletPoint6 : Complete Accessories -- This drilling and milling machine has a full range of accessories, including the support base and the corresponding milling chuck, with Milling chuck set (R8-ER32 : 4-3/6-5/8-7/10-9/12-11/16-15/18-17/20-19).Other accessories are Axis X power feed *1 Grating ruler *1 Drill chuck *1 Drill chuck retaining pin *1 Bench clamp *1 Fork wrench *1 Drill chuck wrench *1 Oil can *1 Cross screwdriver *1 Straight screwdriver *1 Hexagon wrench *4 English manual *1
BulletPoint7 : Safe and User-Friendly -- Includes a forward/reverse switch and an emergency stop for secure operation. The handwheel scale is in millimeters, providing precise control.
Color : 220v Quick
ExternallyAssignedProductIdentifier : 7624570094615
ExternallyAssignedProductIdentifier1 : 0198462080873
ExternallyAssignedProductIdentifier2 : 198462080873

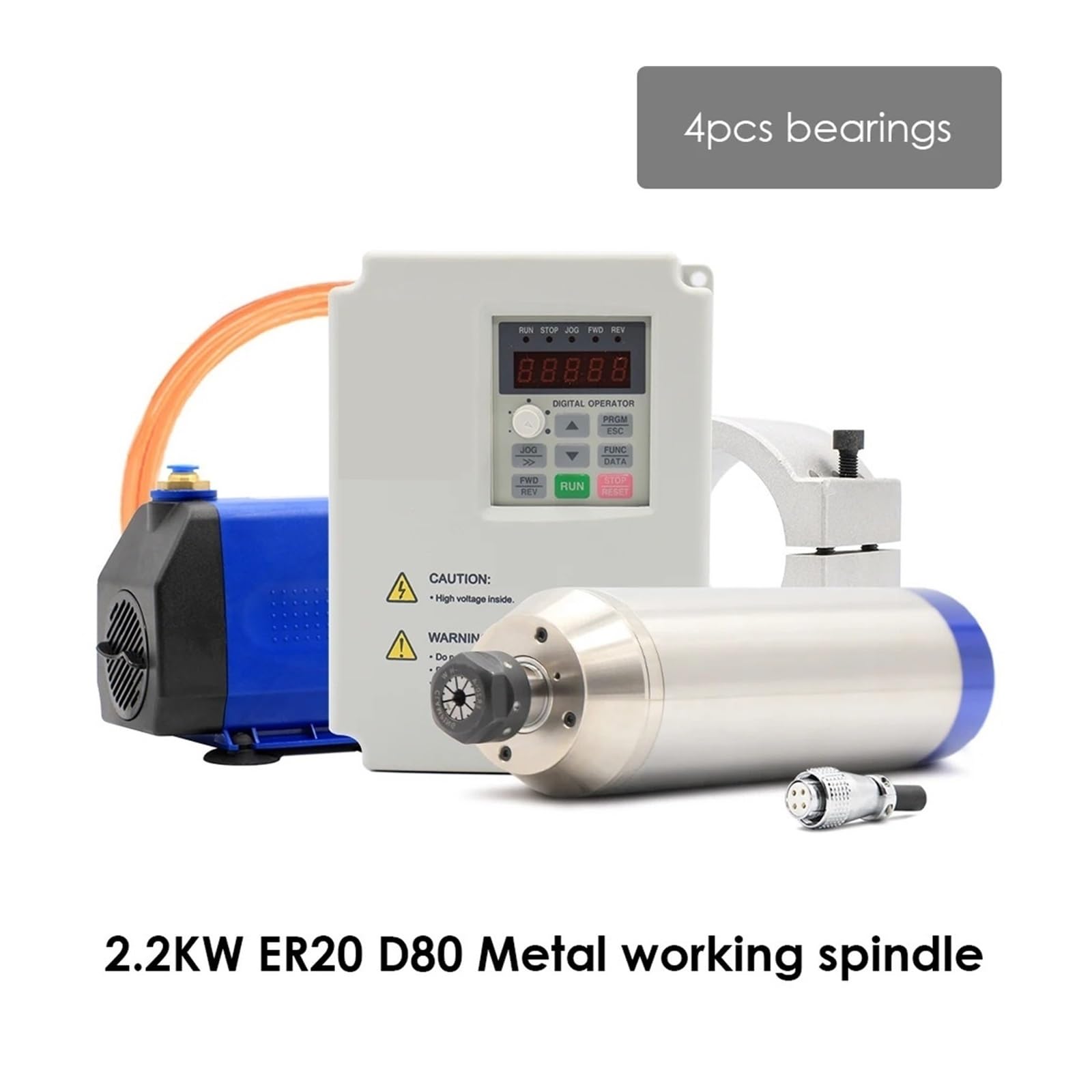

ItemName : KACOME 2.2KW Metal Spindle Motor Water Cooled Ceramic Bearings 2/4pole for Steel and 2.2KW BD612 Motor Speed Controller(800Hz-24000rpm,220v Quick)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : power-milling-machines
Manufacturer : KACOME
MaximumRotationalSpeed : 2250 rpm
ModelName : KACOME
ModelNumber : KACOME
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : KACOME
ProductDescription : 1&220vAC 22kw Metal working spindle motor water-cooled 400Hz800Hz 24 poles diameter 80mm
122KW Frequency converter
180mm Spindle support
175W Water pump
Size 80x318mm Intermediate body diameter 80mmx length 272mm Speed control method through the three-phase output inverter, adjust the frequency of the inverter to change the spindle speed.
Cooling method: water cooling
inverter (U, V, W) and 4 to inverter ground.
Power: 2.2 kW
Voltage: 220V/380V
Current: 10A / 5.5A
Frequency: 400 Hz / 800 Hz
Speed: 24000 rpm
Number of poles: 2 / 4
Runout deviation: less than 0.01 mm
Diameter (mm): 80
Bearing type: 2 x 7005 P4 DT & 2 x 7002 P4 DT
4 ceramic ball bearings complete angular contact bearings
Collet ER20
Input voltage: 220 V (+/-15)
Input Frequency: 50/60 Hz
Input phase: 1 phase or 3 phase
Output Voltage: 220 VAC
Output Frequency: 0-1000 Hz
Output Current: 10A
Output Phase: 3 Phase
Power: 75 watts
Maximum Flow Rate 3200L/H
Voltage: 220V
Frequency: 50 HZ
Outlet size: 4 mm and 6 mm
Dimensions: 145 * 110 * 90 mm 145 * 110 * 90 mm
Certification : CE
Drive : Electric motor
Maximum torque : 0.85N.m
Running Speed : 12000-24000rpm
Model : 2.2kw ER20 Metal Spindle
Application : Milling
Size : 80*318 mm
Voltage : 220V/380V
Current : 10A/5.5A
Power : 2.2kw (1HP=735W)
Cooling method: water cooling
Bearing type: 2 X 7005 P4 DT & 2X 7002 P4 DT
Collet: ER20
Frequency: 400 Hz/8
ProductSiteLaunchDate : 2024-10-30T02:20:39.037Z
Size : 800Hz-24000rpm
UnitCount : 1
UnspscCode : 26101200
Voltage : 110 volts
Wattage : 1300 watts
