Specification
Brand : KACOME
BulletPoint1 : Rotation: Spindle motors provide high speed stable rotation.
BulletPoint2 : Machining: The accuracy of the spindle motor directly affects the accuracy of the machined workpiece
BulletPoint3 : Application: Adapt to a variety of application scenarios
BulletPoint4 : Features: all size light weight
BulletPoint5 : Installation: Simple installation easy operation
Color : 380v
ExternallyAssignedProductIdentifier : 7624570094899

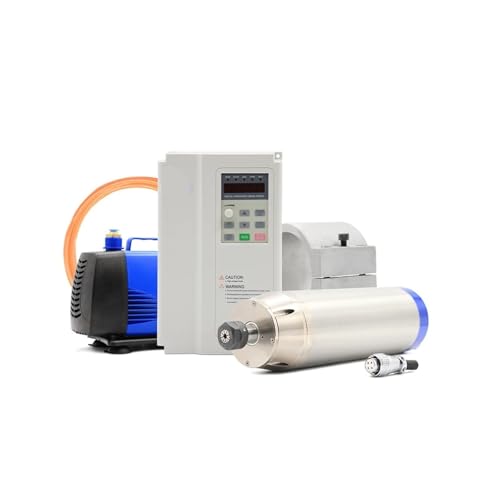

ItemName : KACOME 3.7kw Metalworking Spindle Motor 800Hz Stainless Steel Copper Steel and Motor Speed Controller(400Hz-12000rpm,380v)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : power-milling-machines
Manufacturer : KACOME
ModelName : KACOME
ModelNumber : KACOME
NumberOfItems : 1
PartNumber : KACOME
ProductDescription : 1& 220vAC37kw Metal working spindle motor water cooled
800Hz 4 pole diameter 100mm
1 220v 37kw Frequency converter 1000Hz
1 100mm spindle support
1 150w water pump
1 5 meter water pipe
1 ER20 collet 4 6 8 10 12. 1/4. 1/8)
Dimensions: 100x289.5 mm (center body diameter: 100 mm x length: 273 mm)
Speed regulation method: through three-phase output frequency converter, adjust the frequency converter to change the spindle speed.
Cooling method: water cooling
Power: 3.7 kW
Voltage: 220V/380V
Current: 17A/8A
Frequency: 800 Hz
Speed: 6000-24000 rpm
Number of poles: 4
Runout deviation: less than 0.01 mm
Diameter (mm): 100
Bearing type: 2 x 7005 TQP4& 2 x 7003 TQ P4
4 ceramic ball bearings full angular contact bearings
Collet ER20
Diameter of milling piece 13mm12mm12.7mm,11mm,10mm,9mm,8mm,7mm,6.35mm,6mm,5mm,4mm,3.175mm,3mm,2mm,1mm (standard 6mm)
Input voltage: 220 volts (+/-15)
Input Frequency: 50/60 Hz
Input Phase: 1 phase or 3 phase
Output Voltage: 220 VAC
Output Frequency: 0-1000 Hz
Output Current: 17A
Output phase: 3-phase
Control Modes V/F Control Mode
8-level simple PLC, multi-level speed control and PID control.
Maximum head: 5.0 meters;
Power: 150 watts;
Maximum flow rate: 5000 liters per hour
Voltage: 220V
Frequency: 50 HZ
Outlet size: 4 mm and 6 mm
Dimensions: 175 * 98 * 117 mm
Model ER20 degree collet
Material: 65Mn steel
Quantity: 8 pcs 8 pcs (4mm,6mm,8mm,10mm,12mm,1/4(6.35mm),1/8(3.175mm),1/2(12.7mm))
Minimum 0.008mm
==========
Certification : CE
Drive : Electric motor
Maximum torque : 1.69N.m
Running Speed : 6000-24000rpm
Model : 3.7kw ER20 Metal Spindle
Size : 100x289.5 mm
Voltage : 220V
Current : 17A
Power : 3.7kw (1HP=735W)
Cooling: water cooling
Bearing type: 2 X 7005 TQ P4 and 2X 7003 TQ P4
Collet: ER20
Frequency : 800 Hz
Numbe
ProductSiteLaunchDate : 2024-10-30T02:20:30.838Z
Size : 400Hz-12000rpm
UnitCount : 1
UnspscCode : 26101200
