Specification
AgeRangeDescription : adult
Brand : KACOME
BulletPoint1 : Rotation: Spindle motors provide high speed stable rotation.
BulletPoint2 : Machining: The accuracy of the spindle motor directly affects the accuracy of the machined workpiece
BulletPoint3 : Application: Adapt to a variety of application scenarios
BulletPoint4 : Features: all size light weight
BulletPoint5 : Installation: Simple installation easy operation
Color : One Color
ExternallyAssignedProductIdentifier : 7614569819558

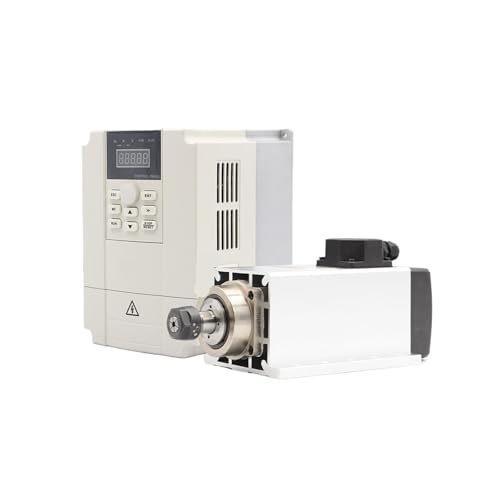

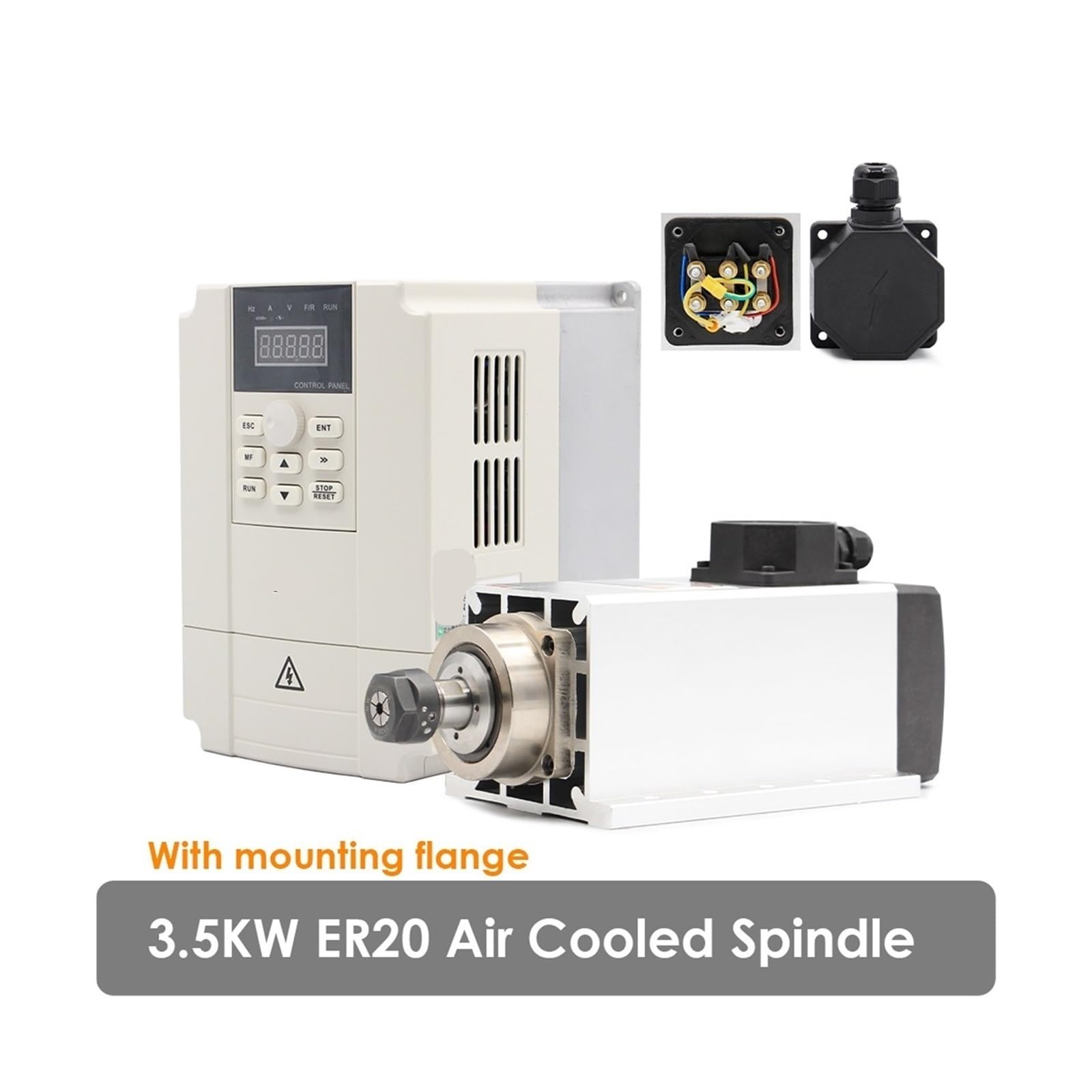

ItemName : KACOME Air-Cooled Spindle Motor 3.5KW ER20 4-Bearing 220v/380v 0.01mm Precision with Flange and 4.0KW Inverter(380V)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : power-milling-machines
Manufacturer : KACOME
ModelName : KACOME
ModelNumber : KACOME
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : KACOME
ProductDescription : 1&220v 35kw ER20 air-cooled spindle motor with mounting flange
1 set of 40kw frequency converter
Dimensions 308x104x135mm
Speed ​​regulation method: Through the three-phase output frequency converter, adjust the frequency converter to change the spindle speed.
Cooling method: air cooling
Power: 3.5kw (1HP=0.735w)
Voltage: 220V
Current: 15A
Frequency: 0-300 Hz
Speed: 0-18000 rpm
Runout: less than 0.01mm
Bearing type: 2x7005C P4 DB (ceramic ball bearing) and 2x7203C P4 DT
Chuck ER20
Input voltage: 220V/380V(+/-20%)
Output voltage: 220V/380V
Input frequency: 50-60 Hz (+/-5 Hz)
Output frequency: 0-1000 Hz
Enter the number of phases, single phase or three phase
Output phase three-phase
Control mode: V/F control V/F control V/F control V/F control
Output current: 18A/9.5A
=========
Certification: CE
Drive motor
Maximum torque: 1.33Nm
Running speed: 0-18000rpm
Model: 3.5KW ER20
Application: Milling
Dimensions: 308x104x135 mm
Voltage: 220V/380V
Current: 15A
Power: 3.5kW
Cooling method air cooling
Bearing type: 2x7005C P4 DB and 2x7203C P4 DT
Chuck: ER20 ER20
Frequency: 300 Hz
Lubrication: Grease
Chuck range: 1-13mm (including 1/4, 1/8, 1/2)
Inverter type: 4.0K
ProductSiteLaunchDate : 2024-10-25T08:47:10.774Z
Size : 380V
UnitCount : 1
UnspscCode : 26101200
