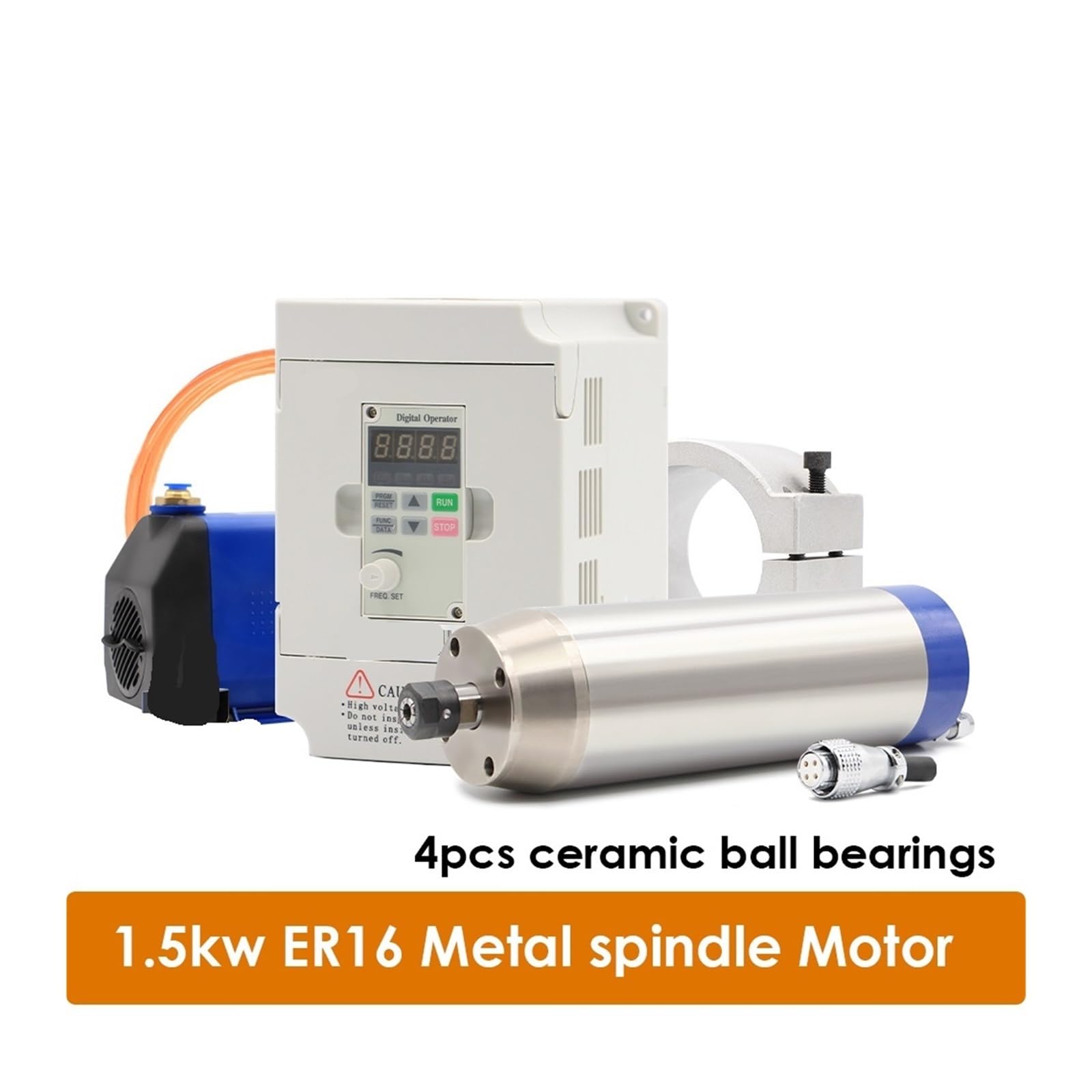

KACOME Metal Processing Spindle 1.5KW ER164 Ceramic Ball Bearing & 1.5KW Frequency Converter & 80mm Bracket & 75W Water Pump(380v,Inverter-BD612)

Customer rating 4.7 stars

Imported from USA | Ships in 10 working days

5% additional discount on UPI | Cash On Delivery available

1

₹303140 -33% ₹203100/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Free Shipping across India. Powered by BlueDart.
EMI and GST Invoice available.

Product Information


Specification
AgeRangeDescription : adult
Brand : KACOME
BulletPoint1 : Rotation: Spindle motors provide high speed stable rotation.
BulletPoint2 : Machining: The accuracy of the spindle motor directly affects the accuracy of the machined workpiece
BulletPoint3 : Application: Adapt to a variety of application scenarios
BulletPoint4 : Features: all size light weight
BulletPoint5 : Installation: Simple installation easy operation
Color : Inverter-bd612
ExternallyAssignedProductIdentifier : 7624570094301
ItemName : KACOME Metal Processing Spindle 1.5KW ER164 Ceramic Ball Bearing & 1.5KW Frequency Converter & 80mm Bracket & 75W Water Pump(380v,Inverter-BD612)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : power-milling-machines
Manufacturer : KACOME
ModelName : KACOME
ModelNumber : KACOME
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : KACOME

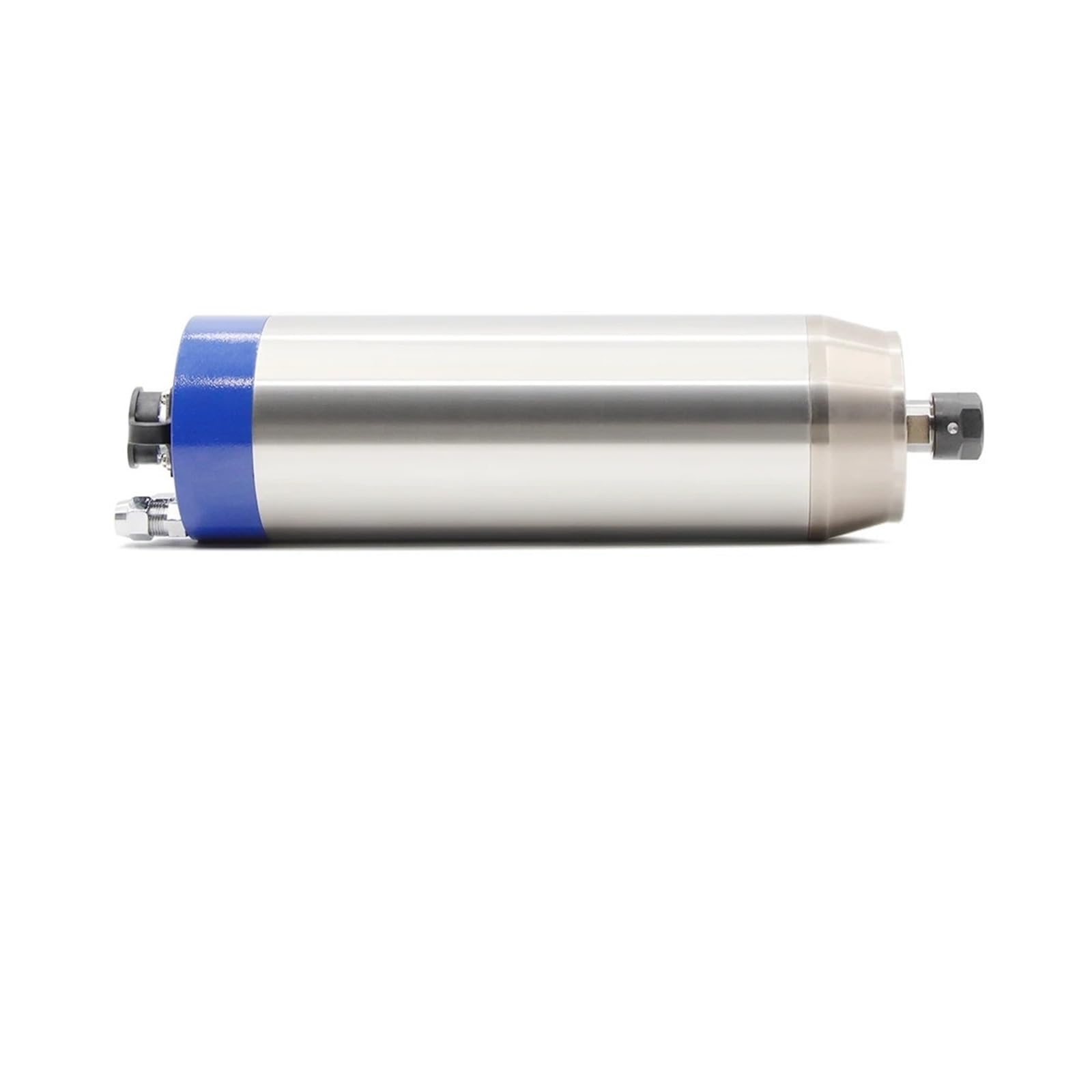

ProductDescription : 1&220v380v 15kw ER16 metal processing spindle motor water-cooled 400Hz pole 2 diameter 80mm
115kw frequency converter VFDFULINGBD612 FULINGBD600
1 x 80mm aluminum bracket
1 set of 75W water pump AS
Size 80x226mm (center body diameter 80mm x length 226mm)
Speed ​​regulation method: Through the three-phase output frequency converter, adjust the frequency converter to change the spindle speed.
Cooling method: water cooling
Power: 1.5kw
Voltage: 220v
Current: 7A
Frequency: 400Hz
Speed: 24000rpm
Number of poles: 2
Runout: less than 0.01mm
Diameter (mm): 80
Bearing Type: 2 x 7004 P4 DT & 2 x 7002 P4 DT
4 ceramic ball bearings full angular contact bearings
Collet ER16
Diameter 13mm, 12mm, 12.7mm, 11mm, 10mm, 9mm, 8mm, 7mm, 6.35mm, 6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm (standard 6mm)
Water cooling ER16 plug-in block
Grease lubrication
Inverter model: 1.5KW BD612
Input voltage: 220v (+/-15%)
Input frequency: 50/60Hz
Number of input phases: 1 phase
Output voltage: 220VAC
Output frequency: 0-1000 Hz
Output current: 7A
Output phase: 3 phases
Two speed control methods: V/F control
PG-free vector control (SVC): starting torque 0.5 Hz up to 150%
8-segment simple PLC function, multi-segment speed control and PID control
Inverter type: 1.5KW BD600 series
Input voltage: 220v (+/-15%)
Input frequency: 50/60Hz
Input phase number: three phases
Output voltage: 220VAC
Output frequency: 0-1000 Hz
Output current: 7A
Number of output phases: three phases
Diameter: 80mm
Material: cast aluminum
Maximum lift: 3.2m;
Power: 75w;
Maximum flow: 3200L/H
Voltage: 220V;
Frequency: 50 Hz
Outlet size: 4mm and 6mm;
Size: 145*110*90mm
=========
Certification: CE
Drive mode: electric motor
Maximum torque: 0.65Nm
Working speed: 24000rpm
Model: 1.5kw ER16 metal spindle
Application: Mi
ProductSiteLaunchDate : 2024-10-30T02:20:29.978Z
Size : 380v
UnitCount : 1
UnspscCode : 27112700
