Specification
Brand : KACOME
BulletPoint1 : Rotation: Spindle motors provide high speed stable rotation.
BulletPoint2 : Machining: The accuracy of the spindle motor directly affects the accuracy of the machined workpiece
BulletPoint3 : Application: Adapt to a variety of application scenarios
BulletPoint4 : Features: all size light weight
BulletPoint5 : Installation: Simple installation easy operation
Color : 220v
ExternallyAssignedProductIdentifier : 7624570094738

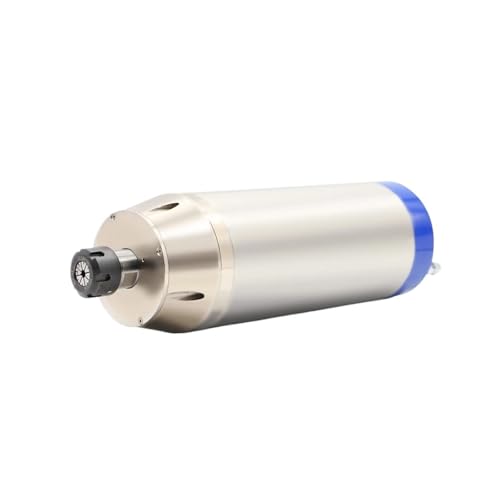

ItemName : KACOME Metal Working Water-Cooled Spindle Motor 5.5KW ER25 220v/380v Ceramic Bearing 400HZ/800Hz 12000/24000RPM(800Hz-24000rpm,220v)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : power-milling-machines
Manufacturer : KACOME
ModelName : KACOME
ModelNumber : KACOME
NumberOfItems : 1
PartNumber : KACOME
ProductDescription : Basic Parameters
* Dimensions: 125x265mm (center body diameter: 125mm x length: 265mm)
* Speed regulation mode: through the three-phase output frequency converter, adjust the frequency converter to change the spindle speed.
* Cooling method: water cooling
* Power: 5.5 kW
* Voltage: 220V/380V
* Current: 22A/15A
* Frequency: 400Hz(6000-12000RPM) /800Hz(12000-24000RPM)
* Speed: 12000rpm/24000rpm
* Number of poles: 4
* Jump deviation: less than 0.01 mm
* Diameter (mm) 125
* Bearing type 2 x 7005 P4 DB & 2 x 7003 P4 DB
4 ceramic ball bearings (full angular contact bearings) * Collet: Collet: ER20
Certification : CE
Drive: Electric motor
Maximum torque : 2.18N.m
Running Speed : 0~24000rpm
Model : 5.5kw ER25 Water-cooled Metalworking Spindle
Application : Milling
Size : 125 x 265 mm
Power : 5.5kw
Frequency : 400 Hz/800 Hz
Speed : (6000-12000 rpm)/(12000-24000 rpm)
Voltage: 220V/380V
Current: 22A/15A
Collet : ER25
Cooling method : Water-cooled Water-cooled
Phase : 3
Bearing Type : 2 x 7005 P4 DB & 2 x 7003 P4 DB
ProductSiteLaunchDate : 2024-10-30T02:20:29.449Z
Size : 800Hz-24000rpm
UnitCount : 1
UnspscCode : 26101200
