Specification
Brand : KAKA INDUSTRIAL
BulletPoint1 : Suitable for milling and drilling works
BulletPoint2 : MT4 Spindle taper
BulletPoint3 : Table made of high-quality cast iron, sturdy sturcture
BulletPoint4 : Hardened and grounded worm shaft
BulletPoint5 : 2 clamping lever for clamping of the table
BulletPoint6 : Direct indexing via 360° scale mounted on the table
BulletPoint7 : This product is a medium-to-large machine (weighing more than 100lbs), and the lift gate service is a service to help unload the goods, not a freight charge. In order to ensure that the goods are delivered smoothly, I am asking here on behalf of the carrier. It is not a mandatory purchase, please purchase it as needed. If you have an unloading method, please ignore the above information. I hope you can understand.
CompatibleDevices : Milling Machine
CustomerPackageType : Standard Packaging
ExternallyAssignedProductIdentifier1 : 0720314477908
ExternallyAssignedProductIdentifier2 : 720314477908
Horsepower : 2.2 kilowatts
IncludedComponents : Horizontal Vertical Rotary Table

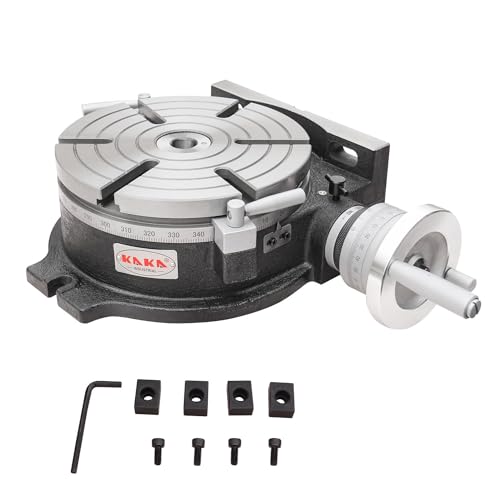

ItemName : KAKA INDUSTRIAL HV-12, 12”Horizontal Vertical Rotary Table TSL Vertical & Horizontal MT4 Center Sleeve Rotary Table 6 slot Precision Milling Table 360 Degrees Precision Rotary Table
ItemPackageDimensions_Height : 31.5 centimeters
ItemPackageDimensions_Length : 18.1 centimeters
ItemPackageDimensions_Width : 25 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : power-milling-machines
Manufacturer : KAKA INDUSTRIAL LLC
Material : Aluminum
ModelName : HV-12
ModelNumber : HV-12
NumberOfBoxes : 1
NumberOfItems : 1
PackageLevel : unit
PartNumber : 3906-2407
PowerSourceType : hand_powered
ProductDescription :

OD12”Horizontal Vertical Rotary Table

Suitable for milling and drilling works

MT4 Spindle taper

Table made of high-quality cast iron, sturdy sturcture

Hardened and grounded worm shaft

2 clamping lever for clamping of the table

Direct indexing via 360° scale mounted on the table

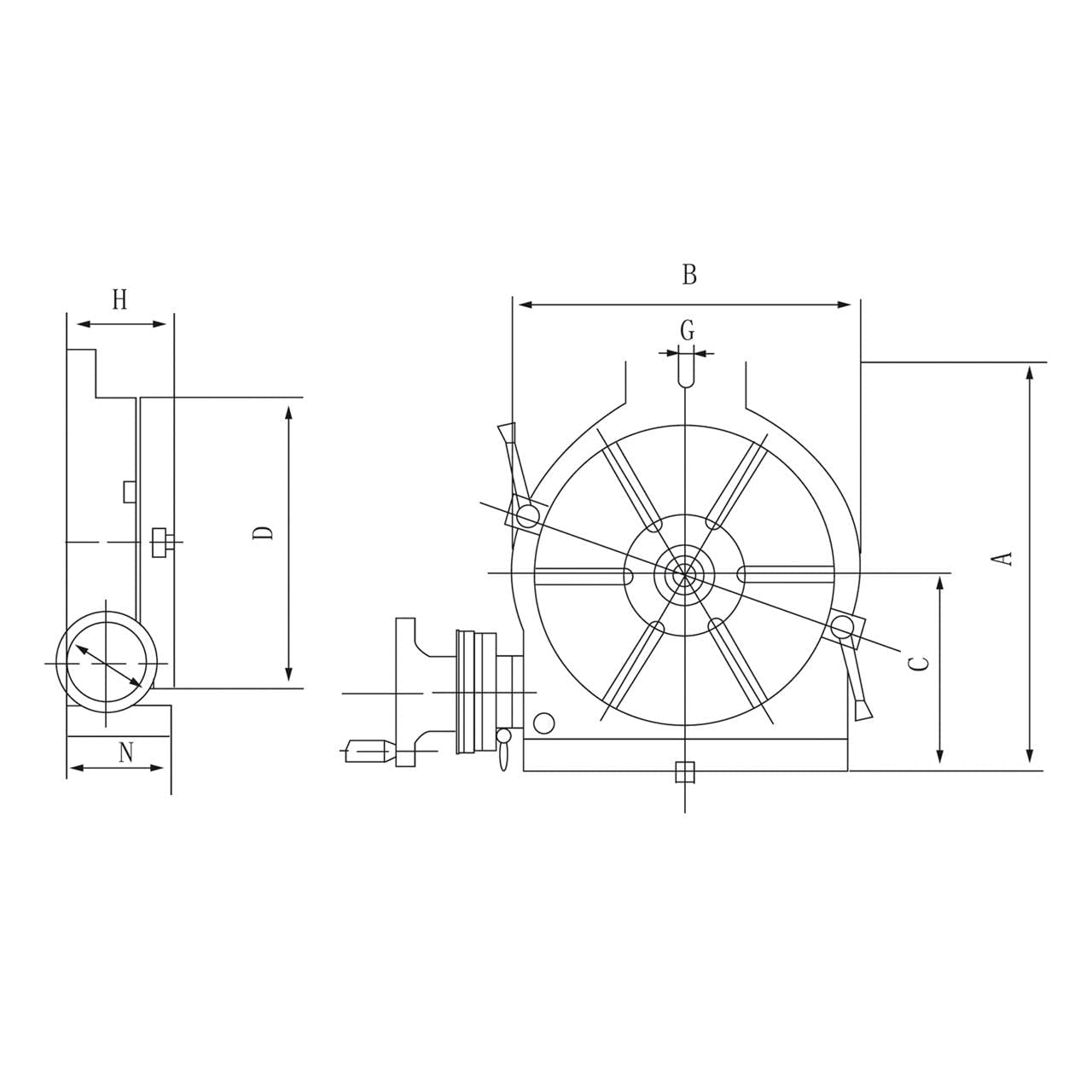

Unit:mm/inches

A: 388/15.2"

B: 330/12.9"

C: 195/7.6"

D: 300/11.8"

E: 16/0.62

G: 17/0.66"

H: 135/5.3"

N: 133/5.2"



Specifications

SKU: 161112

Model: HV-12

Table dia.: 300 mm/11.8"

Morse taper of the center hole: MT4

Height of center: 195 mm/7.6"

Width of T slot: 14 mm/0.55

Adjacent angle of T slot: 60°

Width of the locating key: 16 mm/0.62"

Modules of worm and worm gear: 2.5

Transmission ratio of the worm gear: 1:90

Graduation of the table: 360 °

Rotating angle of the table with one revolution of the worm: 4” （1‘ per graduation)

Min. value of vernier: 10"

Indexing accuracy: 60"

Max. loading (Table horizontal): 250 kg/551lbs

Max. loading (Table vertical): 125 kg/275lbs

Packing size: 51x43x21 cm /20x17x8.2 inch

N.W./G.W.: 71/73 kg  156/161lbs

ProductSiteLaunchDate : 2023-12-07T05:55:36.218Z
Size : HV-12
Speed : 24000 rpm
Style : 4 Jaw 50:1
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 23240000
Voltage : 220 volts
