Specification
Brand : KAKA INDUSTRIAL
BulletPoint1 : 4" Rotary table, with dividing set of 3 plates
BulletPoint2 : 4" Horizontal & Vertical rotary table with 4 slots
BulletPoint3 : Hardened and ground work 72:1 ratio
BulletPoint4 : 360° table graduation
BulletPoint5 : 85 mm table height
BulletPoint6 : Center bore MT2
BulletPoint7 : Comes with 3 pcs of index plate
BulletPoint8 : Number of holes of the dividing/Index plate
BulletPoint9 : Item weight and size -- Package size:35.4"*22.4"*37.8"(90cm*57cm*96cm), Net weight/Gross weight: 260.1LB(118kg)/313.0LB(142kg)
ExternallyAssignedProductIdentifier1 : 0720314477915
ExternallyAssignedProductIdentifier2 : 720314477915
IncludedComponents : Rotary Table

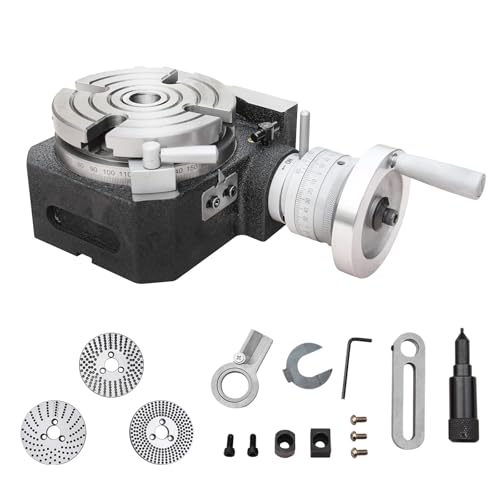

ItemName : KAKA INDUSTRIAL HVP-41, Rotary Table with Dividing Plate DP-1, 4 Inch Rotary Table Milling Machine Horizontal Vertical Indexing Plate
ItemPackageDimensions_Height : 4 centimeters
ItemPackageDimensions_Length : 17 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemTypeKeyword : power-milling-machines
Manufacturer : KAKA INDUSTRIAL LLC
Material : Metal
MaximumPower : 600 watts
MaximumRotationalSpeed : 2250 rpm
ModelName : HVP-41
ModelNumber : HVP-41
NumberOfItems : 1
PartNumber : Generic3ph40yvgim
PowerSourceType : hand_powered
ProductDescription :

HVP-41 Rotary Tabel with Dividing Plate

4" Rotary table, with dividing set of 3 plates

4" Horizontal & Vertical rotary table with 4 slots

Hardened and ground work 72:1 ratio

360°  table graduation

85 mm table height

Center bore MT2

Comes with 3 pcs of index plate

Number of holes of the dividing/Index plate



HV-4 Installation dimension

Unit:mm/inches

A: 145/5.7"

B: 114/4.4"

C: 85.5/3.3"

D: 110/4.3"

E: 12/0.47"

H: 85/3.34"

M: MT2

N: 68 /2.6"



Specifications



Unit:mm/inches

SKU: 162311

Model: HVP-41

Table dia.: 110 mm/4.3"

Morse taper of the center hole: MT2

Height of center for vertical mounting: 59 mm/2.3"

Width of T slot: 8 mm/0.31"

Adjacent angle of T-slot: 90°

Width of the locating key: 12 mm/0.47"

Modules of worm and worm gear: 1

Transmission ratio of the worm gear: 1:72

Graduation of the table: 360 °

Rotating angle of the table with one revolution of worm: 5

Index Plate A: 15, 16, 17, 18, 19, 20

Index Plate B: 21, 23, 27, 29, 31, 33

Index Plate C: 37, 39, 41, 43, 47, 49

Packing size: 29x24x13 cm/11.4x9.4x5.1 inch

N.W./G.W.: 10/11 kg   21/24lbs

ProductSiteLaunchDate : 2023-12-07T06:03:36.730Z
Size : HVP-41
Speed : 2250 rpm
Style : RCOG-28V R8
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 27110000
Voltage : 110 volts
