Specification
Amperage : 10 amps
Brand : Laguna
BulletPoint1 : 3HP Liquid Cool Spindle/ ER-20 Collet Prismatic Guides In All Axes Precision Ball Screws In All Axes Tool Touch Off Puck Included DSP Controller 4th Axis Ready Optional UCCNC PC Control
BulletPoint2 : Parts Included With Machine: Dust Shoe Hold Down Clamp Set (4 Total Clamps) 1/2″ & 1/4″ Collets Collet Wrenches Integrated MDF Spoil Board
BulletPoint3 : X Axis Travel: 24″ Y Axis Travel: 47.63″ Z Axis Travel: 5.9″ C Axis Travel: 360° Table Work Area: 28.4″ x 63″ Spindle Configuration: ER20 Electro Spindle: 2.2KW (3HP)
BulletPoint4 : Spindle Speed: 0-24000 RPM Rapid Shuttle Rate: 300 IPM Precision Linear Guideway: X/Y/Z Precision Ball Screw: X/Y/Z Ball Screw Diameter: 16mm Power Requirements: 220V, 50~60Hz, 10A, 1-Phase
BulletPoint5 : Working Table: High Rigidity Aluminum Extrusion Positional Accuracy: +/- 0.00393″ Gantry Bridge: High Rigidity Aluminum Extrusion Gantry Supports: Steel Max Gantry Clearance: 6-1/2″
BulletPoint6 : Machine Dimensions (L x W x H): 62.99″ x 37.36″ x 30.27″ Shipping Dimensions (L x W x H): 65″ x 39″ x 33″ Machine Weight: 405 lbs. Tool Touch-Off Device: Included Onboard Cooling System: Liquid
BulletPoint7 : Controller: RichAuto B18 DSP 4-Axis Controller CNC Motion Control System USB Port For Easy File Transfer (No PC Required) Applicable Language: Support English / Chinese CSA Approved: Yes
BulletPoint8 : Package Includes: 1 x Precision Back Plate for Rotary Table 3 x Tee Nuts Bolts
BulletPoint9 : Purpose: The chuck for a rotary table typically has jaws or clamps that can be adjusted to securely grip the workpiece. It ensures that the workpiece remains stable and properly aligned during the machining process, allowing for accurate and consistent results. This is especially important for tasks that require precise positioning or multiple machining operations on different sides of the workpiece.
Color : Metal
ExternallyAssignedProductIdentifier : 7502982532119
ExternallyAssignedProductIdentifier1 : 195444293771
ExternallyAssignedProductIdentifier2 : 0195444293771
Horsepower : 3
IncludedComponents : 1 CNC Router

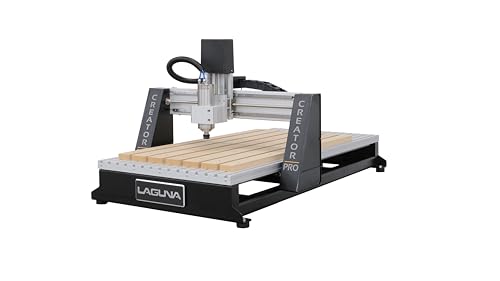

ItemName : Laguna Desktop CNC Router Creator Pro 2"x4"
ItemPackageDimensions_Height : 43 inches
ItemPackageDimensions_Length : 60 inches
ItemPackageDimensions_Width : 43 inches
ItemPackageQuantity : 1
ItemTypeKeyword : power-milling-machines
LockType : Self Centering
Manufacturer : Laguna
Material : Alloy Steel
MaximumRotationalSpeed : 24000 rpm
ModelName : Creator Pro
ModelNumber : MCNC CREATOR I-24P
NumberOfBoxes : 1
NumberOfItems : 1
PackageLevel : unit
PartNumber : VSM1
PowerSourceType : ac_dc
ProductDescription : 3HP 1 Phase. VSM-1. Replace Your Import Bridgeport-Type Mill Motor With A New Motor And Pulleys.
ProductSiteLaunchDate : 2025-02-05T00:58:39.214Z
Size : One Size
Speed : 3 horsepower
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 27112700
Voltage : 220 volts
