Specification
AgeRangeDescription : adult
Brand : KACOME
BulletPoint1 : Rotation: Spindle motors provide high speed stable rotation.
BulletPoint2 : Machining: The accuracy of the spindle motor directly affects the accuracy of the machined workpiece
BulletPoint3 : Application: Adapt to a variety of application scenarios
BulletPoint4 : Features: all size light weight
BulletPoint5 : Installation: Simple installation easy operation
BulletPoint6 : Complete Accessories -- This drilling and milling machine has a full range of accessories, including the support base and the corresponding milling chuck, with Milling chuck set (R8-ER32 : 4-3/6-5/8-7/10-9/12-11/16-15/18-17/20-19).Other accessories are Axis X power feed *1 Grating ruler *1 Drill chuck *1 Drill chuck retaining pin *1 Bench clamp *1 Fork wrench *1 Drill chuck wrench *1 Oil can *1 Cross screwdriver *1 Straight screwdriver *1 Hexagon wrench *4 English manual *1
BulletPoint7 : Safe and User-Friendly -- Includes a forward/reverse switch and an emergency stop for secure operation. The handwheel scale is in millimeters, providing precise control.
Color : 380v
ExternallyAssignedProductIdentifier : 7624570094691
ExternallyAssignedProductIdentifier1 : 0198462080873
ExternallyAssignedProductIdentifier2 : 198462080873

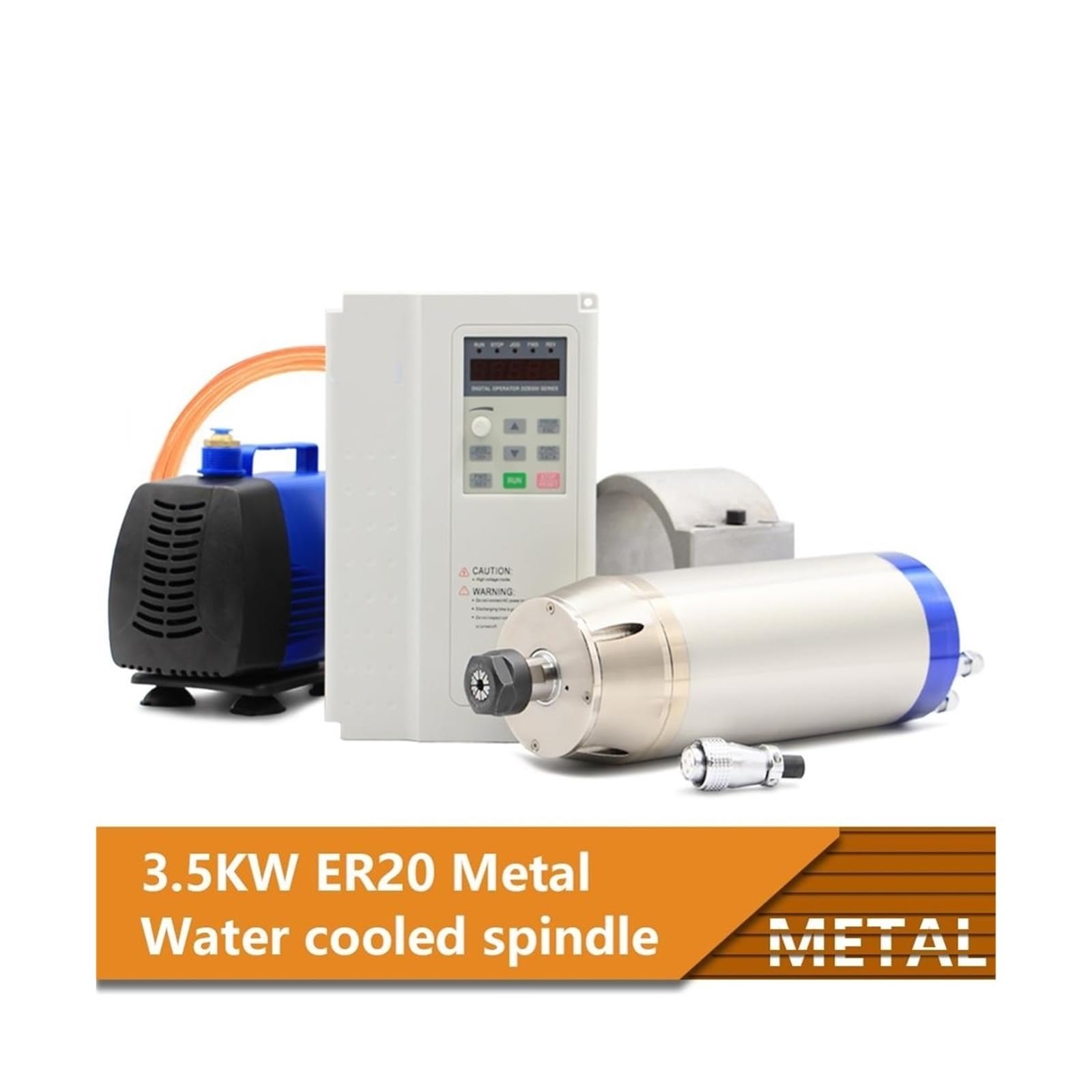

ItemName : Metalworking Spindle Kit 3.5 kW ER20 Metalworking Spindle Kit, 3.7 kW Frequency Converter and 150 Watt Water Pump(380V)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : power-milling-machines
Manufacturer : KACOME
MaximumRotationalSpeed : 2250 rpm
ModelName : KACOME
ModelNumber : KACOME
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : KACOME

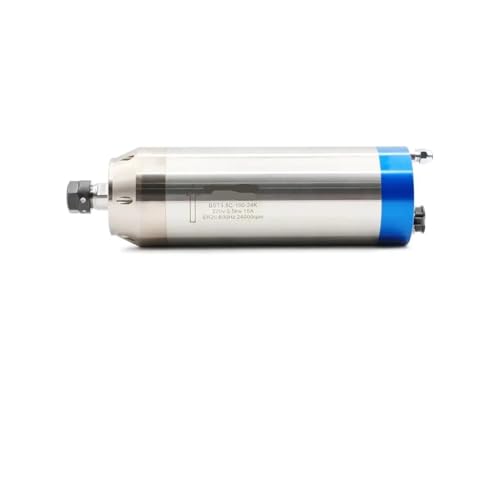

ProductDescription : 1&220vAC 35kw metal work spindle motor water cooled 800Hz 4 pole diameter 100mm
1 220vAC 37kw Frequency converter 1000Hz
1 100mm spindle support
1 150w water pump
5 meter water pipe 1 piece
Dimensions: 100x250mm (intermediate body diameter: 100mmx length: 250mm)
Speed regulation method: through the three-phase output frequency converter, adjust the frequency converter to change the spindle speed.
Cooling method: water cooling
Power: 3.5 kW
Voltage: 220V/380V
Current: 15A/8A
Frequency: 800 Hz
Speed: 12000-24000 rpm
Number of poles: 4
Runout deviation: less than 0.01 mm
Diameter (mm) 100
Bearing type: 2 x 7006 P4 DB& 2 x 7004 P4 DB
4 ceramic ball bearings Full angular contact bearings
Input voltage: 220 V (+/-15)
Input frequency: 50/60 Hz
Input phase: Single phase or three phase
Output voltage: 220 VAC
Output Frequency: 0-1000 Hz
Output Current: 15A
Output phase 3-phase
Maximum Height: 5.0 meters
Power: 150 watts
Maximum flow rate: 5000 liters per hour
Voltage: 220 volts
Frequency: 50 Hz
Outlet size: 4 mm and 6 mm
Dimensions: 117 * 98 * 175 mm 117 * 98 * 175 mm
Certification : CE
Drive : Electric motor
Maximum torque : 1.59N.m
Running Speed : 12000-24000rpm
Model : 3.5kw ER20 Metal Spindle
Application : Milling
Size : 100x250 mm
Voltage : 220V
Current : 15A
Power : 3.5kw (1HP=735W)
Cooling: water-cooled
Bearing type: 2 X 7006 P4 DB and 2 X 7004 P4 DB
Collet: ER20
Frequency: 800 Hz
Number of poles: 4
Collet range: 1-13 mm (incl. 1/4, 1/8, 1/32)
ProductSiteLaunchDate : 2024-10-30T02:20:30.801Z
Size : Ceramic Ball Bearing
UnitCount : 1
UnspscCode : 52140000
Voltage : 110 volts
Wattage : 1300 watts
