Specification
Brand : RATTMMOTOR
BulletPoint1 : ✅【How to Wire The Spindle Motor】The spindle motor's aviation plug marked with number 1, 2, 3, 4. Number 1, 2, 3 port are connected with inverter's port U, V, W respectively. Number 4 does not require wiring.
BulletPoint2 : ✅【Simple Introduction】This is a 220V 3KW water-cooled 12A Φ 100x220mm spindle motor come with a ER20 nut and collet. Frequency is 400HZ, 0.005mm precision tapered bore and runout off is less than 0.01mm. It is mainly suitable for non-metallic engraving,such as wood carving/engraving machine, advertisement engraving machine,CNC machine.
BulletPoint3 : ✅【Speed of The Spindle Motor】0-24000RPM. Because it is a high-speed spindle motor, the spindle speed must not be lower than 9000 rpm during the use of the spindle. It should be noted that the spindle only can rotate clockwise but not counterclockwise.
BulletPoint4 : ✅【Advantages】4pcs P4 high speed bearings, dynamic balance, high-precison nut and chuck, it can better ensure the accuracy of the spindle. It's not easy to oxidize and rust with the water-cooling design, and pure copper galvanized nozzle.
BulletPoint5 : ✅【About The Design dvantages of The Spindle Motor】The design of the dust-proof cover on the front of the spindle and the use of stainless steel body can effectively prevent dust, water and rust.
ExternallyAssignedProductIdentifier1 : 816550029039
ExternallyAssignedProductIdentifier2 : 0816550029039
GpsrSafetyAttestation : 1
Horsepower : 3 kilowatts
IncludedComponents : Y-axis Extension Kit

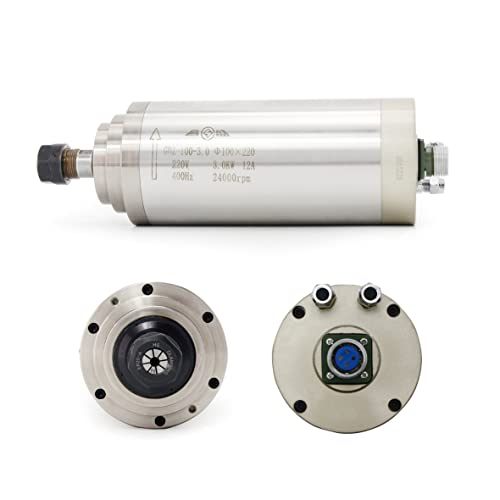

ItemName : RATTMMOTOR CNC Spindle Motor 220V 3KW Water Cooled Spindle Motor 24000RPM 12A ER20 Spindle 4-Bearings 100mm Spindle Motor 400HZ 3-Phase for CNC Router Engraver Milling Machine
ItemPackageDimensions_Height : 42.799 centimeters
ItemPackageDimensions_Length : 19.939 centimeters
ItemPackageDimensions_Width : 20.32 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : power-milling-machines
Manufacturer : Changsheng
Material : Stainless Steel
ModelName : GDZ100-3.0
ModelNumber : GDZ100-3.0
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : GDZ-100-3.0
PowerSourceType : ac
ProductDescription : Package include:
1x 3KW ER20 water-cooled spindle motor 24000rpm 100mm 400Hz

Specification
Size: 100x220mm(Middle body diameter:100mmxLength:220mm)
Power: 3KW
Voltage: 220VAC
Frequency: 0-400Hz
Speed: 0-24000rpm
Cooling: Water cooled
Collet: ER20
Runout off: Less than 0.01mm
Bearing: 4pcs bearing
Grease Lubrication

Power supply interface::
Professional aviation Interface, Interface 1234 marked 123 respectively connected to the inverter output end of the (U, V, W), 4 ground wire this interface must be safe ground.

Main application:
Wood, Aluminum, Stone, metal, glass, PVC industry
ProductSiteLaunchDate : 2021-10-28T01:41:24.119Z
Size : 3.0KW 220V
Speed : 24000 rpm
StreetDate : 2018-02-22T00:00:01Z
Style : 7.5KW ER32
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 26100000
Voltage : 220 volts
