Specification
Brand : RATTMMOTOR

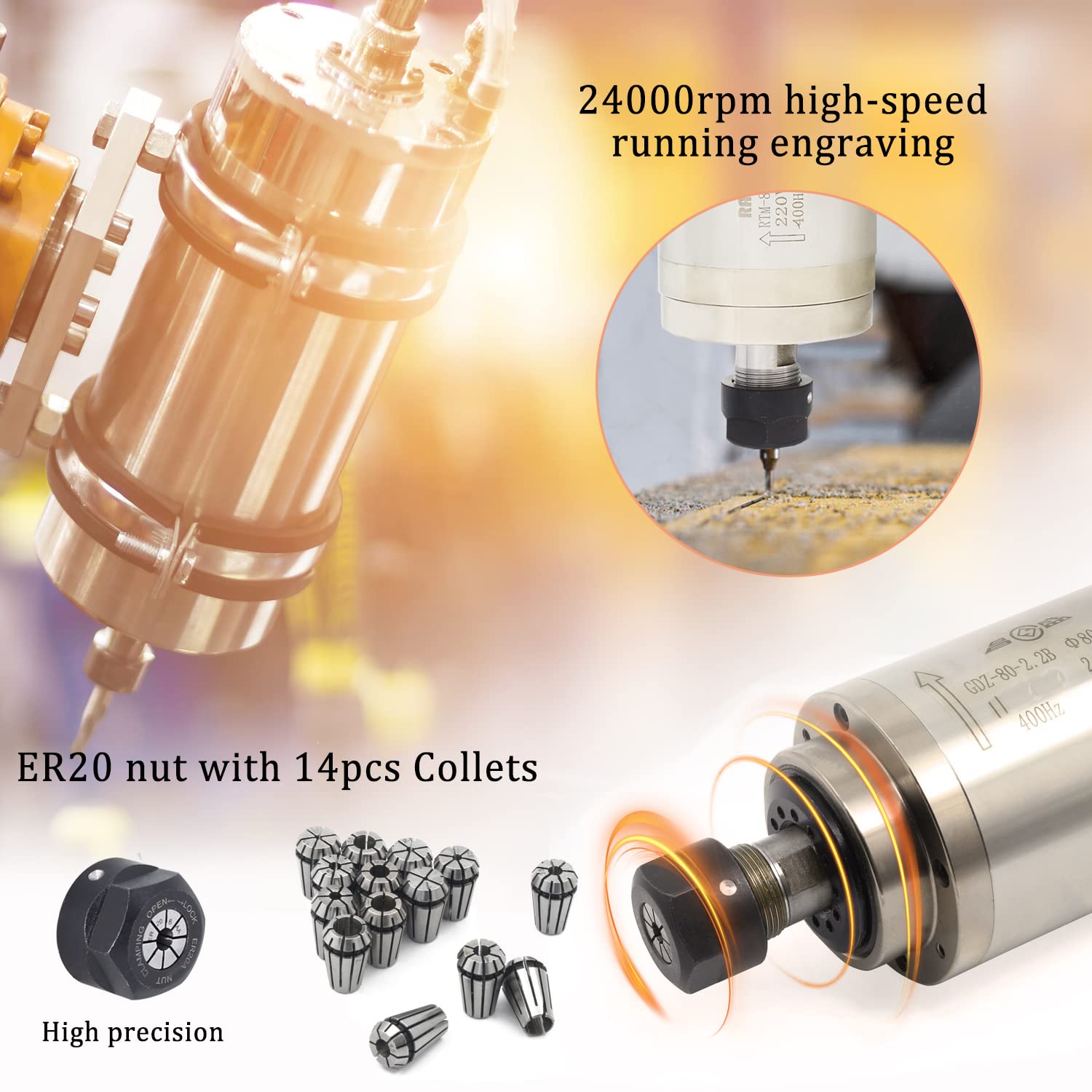

BulletPoint1 : 【2.2KW Spindle Motor】: ①This is a 220V-2.2KW water-cooled 8A Φ 80x213mm spindle motor come with a ER20 nut and collet, and equipped with a 80mm spindle mount. Frequency is 400HZ, 0.003--0.005 accuracy and runout off is Less than 0.01mm. ②Speed of The Spindle Motor : 0-24000RPM. Because it is a high-speed spindle motor, the spindle speed must not be lower than 9000 rpm during the use of the spindle. It should be noted that the spindle motor only can rotate clockwise but not counterclockwise.
BulletPoint2 : 【2.2KW VFD Parameters】Control Model: SPWN. Power: 2.2KW. Input：1 or 3 phase 220V 0-50Hz/60Hz. Output：3 phase 220V 0-400Hz. Under normal circumstances, the parameters of the inverter have been set and can be directly connected for use. (Or please follow the instructions to set the parameters).
BulletPoint3 : 【80mm Spindle Motor Mount】Material is aluminum,surface sandblasted. Compared with the aluminium profile fixture,the accuracy is much eavier, much higher, and it is hard to deform. Fit for CNC 80mm diameter spindle motor.
BulletPoint4 : 【80W 220V Water Pump】Power:80W, Flow: 3500L/H, Hmax: 3.5M, Voltage: 220V. Also suitable for 0.8KW, 1.5KW, 2.2KW, 3KW and other high speed CNC water cooled spindle motor. Please remind that the submersible pump should be completely immersed in water when it is working to ensure that the submersible pump has a certain degree of cooling.
BulletPoint5 : 【How to Connect Spindle Motor and VFD】The spindle motor's aviation plug marked with number 1, 2, 3, 4. Number 1, 2, 3 port are connected separately with inverter's port U, V, W. Number 4 is the ground wire, no wiring is required.
Color : 220v
CustomerPackageType : Standard Packaging
ExternallyAssignedProductIdentifier1 : 785004503176
ExternallyAssignedProductIdentifier2 : 0785004503176
ItemName : RATTMMOTOR CNC Spindle Motor Kit 2.2KW 220V Water Cooled Spindle Motor Φ80mm ER20 400Hz 24000RPM+2.2KW VFD Drive Inverter 3HP+80mm Spindle Motor Mount Clamp+ER20 Collet+Water Pump for CNC Router
ItemPackageDimensions_Height : 45.7 centimeters
ItemPackageDimensions_Length : 20.3 centimeters
ItemPackageDimensions_Width : 41.9 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : power-milling-machines
Manufacturer : Chang Sheng
Material : Iron
ModelNumber : GDZ80-2.2
NumberOfBoxes : 1
PartNumber : GDZ80-2.2
PowerSourceType : ac
ProductDescription : Package Include:
1x 2.2KW ER20 water-cooled spindle motor 24000rpm 80mm 400Hz
1x 2.2KW VFD Inverter 220V input with 220V output
1x 80mm clamp cast aluminium bracket
1x 80W Water pump 220V 3.5M
1x 5M water pipes
1 Set of ER20 collet(14pcs)(1mm,2mm,3.175mm,3mm,4mm,5mm,6mm,7mm,8mm,9mm,10mm,11mm,12mm,13mm)

1. 2.2KW Water Cooled Spindle Motor ER20
Material: Stainless Steel
Size:Φ 80x213mm(Middle body diameter:80mmxLength:213mm)
Power: 2.2KW
Voltage: 220VAC
Current: 8A
Frequency: 0-400Hz
Speed: 0-24000rpm
Accuracy: 0.003--0.005
Runout off: Less than 0.02mm
Bearing Lubrication: Grease
Collet Size: ER20
Bearings: 3 bearings(C7005x2 + C7002x2),P4 class, Angular contact bearings
Main Application: Wood, Glass, PVC industry

2. 2.2KW Inverter VFD 220V input
Tech Parameters:
1) Input Voltage: 220V(+/-15%)
2) Output Voltage 208VAC-240VAC
3) Input Frequency: 48-63 Hz
4) Output Frequency: 0-400 Hz
5) Input Phase: 1 or 3 phase
6) Output Phase: 3 phase

3. 80mm clamp cast aluminium bracket
Diameter: 80mm
Material: Aluminum,Cast Aluminum

4. 80W CNC spindle motor water pump 3.2m 220VAC
Specification:
Pump Length:3.5m
Voltage:220-240VAC
Power:80W
Flow:3500L/H
Size:153x88x108mm
Application: Fit for 0.8kw,1.5kw,2.2kw,3kw,water cooled spindle even 4kw and 5.5kw too

5.ER20 spring collet:
Product Description
Out dia (D1):11.5mm
Height (H):18mm
Hole dia (D2):1-13mm
Run-out Tolerance 0.1mm
First class 1065 carbon steel
Hardened & precision ground

6.5M Water Pipes:
Length: 5M
Can be connected between Water Pump and Spindle Motor

How to Connect:
Professional aviation Interface. Interface 1234 marked 123 respectively connected to the inverter output end of the (U, V, W), 4 ground wire this interface safe ground
ProductSiteLaunchDate : 2017-07-09T07:00:00.000Z
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 26111500
Voltage : 220 volts
Wattage : 2.2 kilowatts
