Specification
AgeRangeDescription : adult
Brand : LOYALHEARTDY
BulletPoint1 : Build to Last: Our product is made of resin, A3 iron, aluminum alloy, iron, engineering plastics, PU, and PVC, so it is resistant to deformation, oxidation, and high temperatures, and has a long service life.
BulletPoint2 : Thoughtful Design: It can directly seal the air inside the pipeline, and when bent freely, it will not leak at the contact surface, ensuring that the machine will not restart frequently due to high consumption, saving energy, and extending its service life.
BulletPoint3 : Economical and Practical: It can be installed on CNC lathes and milling machines(not included) to improve machining capacity and cutting speed, save time, and reduce machining costs and tool wear.
BulletPoint4 : User Friendly: Its air volume and spray volume are adjustable, which is convenient for you to use in different environments. It can be used to blow away lightweight fragments, creating a cleaner and safer working environment for you.
BulletPoint5 : Convenient to Carry: Thanks to its lightweight(6.28 lbs) and compact structure, you can take it out or store it in the car trunk without taking up too much space.
Color : Clear and Blue
ExternallyAssignedProductIdentifier : 7689300225721
IncludedComponents1 : 1* Solenoid Valve
IncludedComponents2 : 1* Oil Tank
IncludedComponents3 : 1* Air Filter
IncludedComponents4 : 2* Pneumatic Cooling Spray Tubes

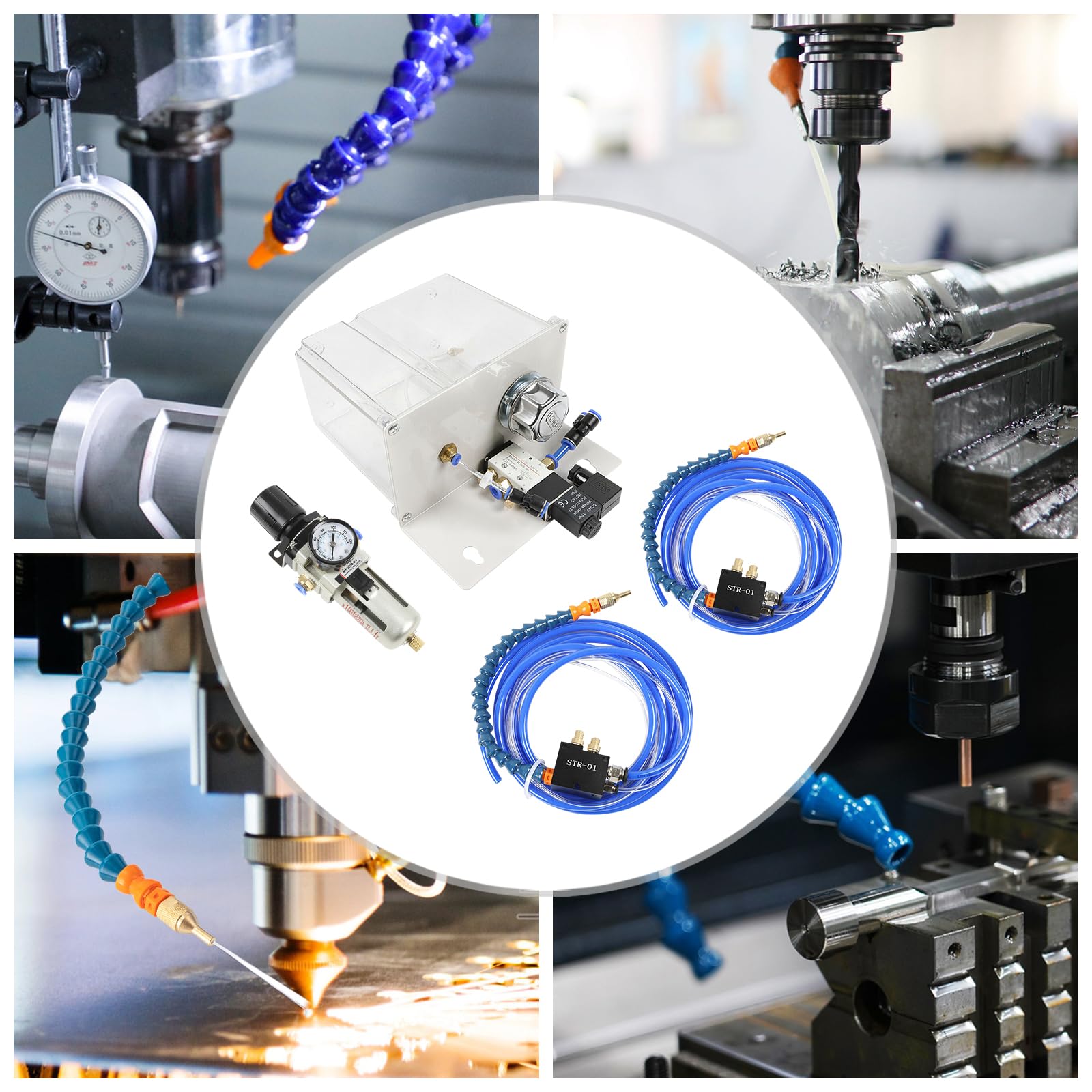

ItemName : Self-priming Micro-mist Machine,YS-BPV-3000 Coolant Cooling Spray Pump CNC Lathe Mist Sprayer System,STR-01 Pneumatic Cooling Spray +Solenoid Valve +Visible Oil Tank for Metal Cutting and Carving
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : power-milling-machines
Manufacturer : Fineyshop
Material : Resin, A3 Iron, Aluminum Alloy, Iron, Engineering Plastics, PU, and PVC
ModelName : Self-priming Micro-mist Machine
ModelNumber : MACR-107
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : MACR-107
PowerSourceType : ac
ProductDescription :

Description

Our cutting-cooling spray machine will dramatically improve your machining efficiency and bring a breath of fresh air to your precision craftsmanship. It not only optimizes the production process but also speeds up the work while maintaining the quality of your workpieces, making your manufacturing process as smooth and efficient as a stream of water.





Details

Universal Sprayer: It is specially designed to facilitate practical operation.



Long Hoses: They can be convenient for you to use and increase the safety of use.



Clear Gauge: The clear gauge on the air filter allows you to easily observe the operation of the product.



Visible Oil Tank: The visual oil tank allows you to easily see and refuel in a timely manner.



Application

It is suitable for spraying water, alcohol, coolant, engine oil, kerosene, and edible oil. It can be used for metal cutting and carving, cooling stone and metal tile carving machines, CNC lathes and milling machines, etc.



How to Use:1. The gas pipe of the air pump intakes air from the air inlet marked in the air filter. Air is released from the OUT outlet and then connected to the solenoid valve with two copper mufflers at the end of the intake.

2. The complimentary blue gas pipe should be plugged into the AIR inlet connected to the sprayer from the end of the solenoid valve with a plug. One end of the complimentary transparent tubing is connected to the check valve on the tank and the other end is inserted directly into the OIL suction port of the sprayer.

3. Machine tool PLC access to the solenoid valve coil, using a PLC program to control the opening and closing of the solenoid valve. The solenoid valve open, on the ventilation spray; The solenoid valve is closed, and the gas is not sprayed.

(If you want the power supply to work, you need to connect the PLC equipment or automatic signals to the solenoid valve: The connection method is two parallel in the solenoid valve coil, is connected to the positive and negative poles, the two contacts are not positive or negative. A separate contact on the side is grounded to prevent static electricity.)



Specifications

Material: Resin, A3 Iron, Aluminum Alloy, Iron, Engineering Plastics, PU, and PVC

Color: Clear and Blue

Assembly Required: Yes

Voltage: AC 110V

Protection Level: IP65

Pressure: 0.15-0.8MPa

Air Filter Pressure: 0.05-0.8 MPa

Air Filter Length: 19.5cm/7.68in

Oil Tank Size: 19.5*24.1*12.5cm/7.68*9.49*4.92in

Solenoid Valve Length: 11.8cm/ 4.65 in

Package Size: 31*20*26cm/12.2*7.87*10.24in

Gross Weight: 3kg/6.6 lbs

Net Weight: 2.85kg/6.28lbs



Package Included

1* Solenoid Valve

1* Oil Tank

1* Air Filter

2* Pneumatic Cooling Spray Tubes



Notes

1. Please note that customers need to prepare their own air compressor (air pressure 4.4-16.54lbs) connection for use.

2. Please note that it can spray with just 2.2 lbs of air pressure without the need for water pressure. When the viscosity of the liquid is relatively high, a pressure greater than 2.2 lbs may be required.

3. When the liquid is output without pressure, it is sufficient to ensure that the air pressure is above 2.2 lbs, and the best air pressure effect is around 6.6 lbs.

4. Please be sure to use a filtered clean air source and clean liquid spray to avoid clogging.

5. Please carefully read the label on the product body before use and pay special attention to the safety tips inside.

6. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.



ProductSiteLaunchDate : 2023-06-21T04:00:09.665Z
Size : BT40-FDER32-D58
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 40141600
