Specification
Brand : EBYTE

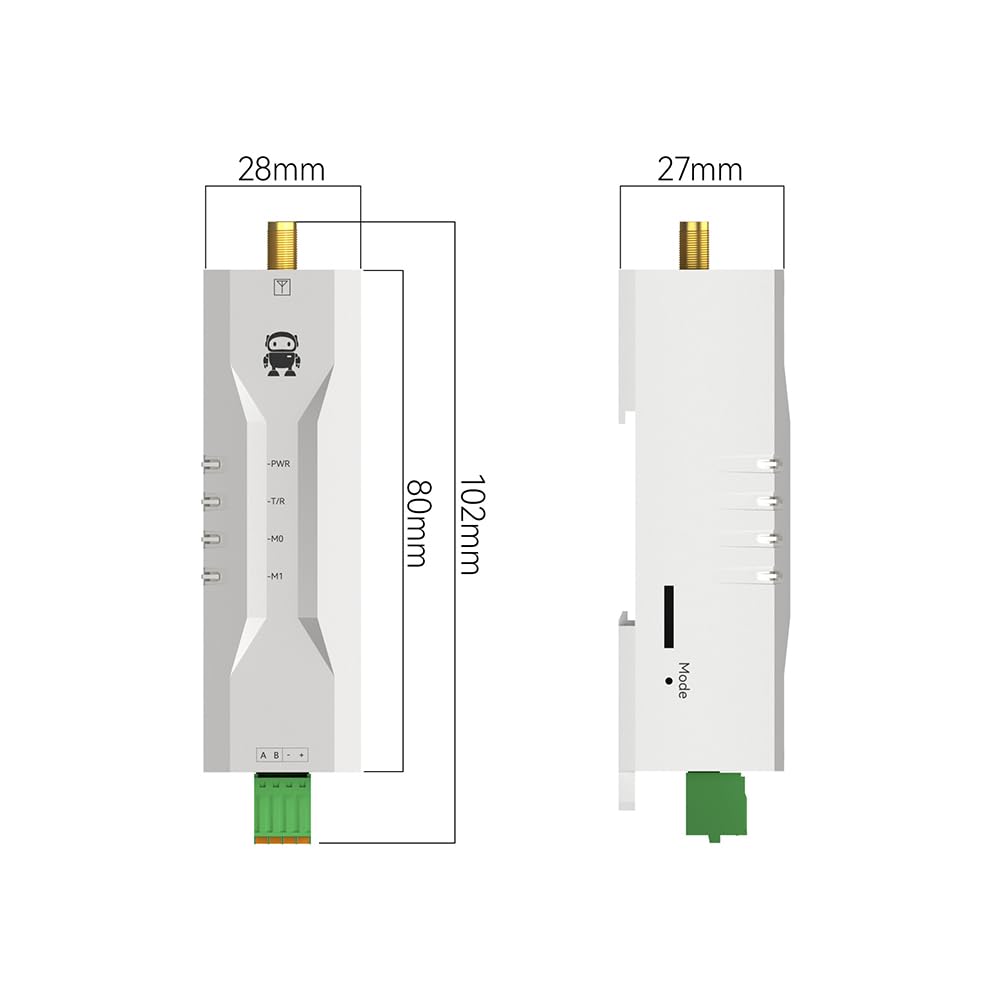

BulletPoint1 : Support automatic frequency hopping, greatly improving the anti-interference ability of communication; Support fixed-frequency communication, fast transmission speed and small delay; Support for automatic retransmission of lost packets; Support fixed-point transmission, easy to group network communication; Ultra-small size, size 80*28*28.5mm, easy and fast installation;
BulletPoint2 : Built-in PA + LNA, transmit power up to 500mW, communication distance up to 5km;Support global licence-free ISM 2.4GHz band;Transmit power optional 20dBm/27dBm, and support multi-level adjustable, all technical indicators to industrial standards; Support data transmission rate of 250k~2Mbps; Support advanced GFSK modulation; Adopt flame retardant plastic shell, rail mounting structure, easy and efficient installation;
BulletPoint3 : Adopt hidden button to switch the working mode, to avoid false triggering, the equipment work operation is more reliable;Simple and efficient power supply design, support power adapter or voltage line mode, support 8 ~ 28V (DC) power supply; Support Modbus protocol transmission; Operating temperature range: -40℃ ~ +85℃, to adapt to a variety of harsh operating environments, true industrial grade products
BulletPoint4 : Power reverse connection protection, over connection protection, antenna surge protection and other multiple protection functions, greatly increasing the reliability of the radio; Communication ports, power supply interface with isolated high protection;
BulletPoint5 : Powerful software functions, all parameters can be set by programming: such as power, frequency, air rate, address ID, etc; Built-in watchdog, and precise time layout, once an exception occurs, the radio will automatically restart, and can continue to work in accordance with the previous parameter settings.
Color : Black
ExternallyAssignedProductIdentifier : 6131118078613
FrequencyBandClass : single_band
IncludedComponents : NO
ItemName : 2.4G Automatic Frequency Hopping Wireless Mini Modem RS485 Din-Rail Installation EWD95M-2G4H27(485) 27dbm Modbus Relay Networking
ItemPackageDimensions_Height : 6 centimeters
ItemPackageDimensions_Length : 19 centimeters
ItemPackageDimensions_Width : 13 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : computer-modems
Manufacturer : EBYTE
ModelName : 500790773
ModelNumber : 500790773
NumberOfItems : 1
PartNumber : 500790773
ProductDescription : EWD95M-2G4Hxx(xxx) is a wireless digital radio based on E34-T series serial module (UART), working in the 2.4~2.518GHz band (default 2.4GHz). It supports interoperability with our  E34 series modules. the radio provides a transparent RS485/RS232 interface, plastic housing, DIN-rail mounting structure, supports 5~28V (DC) wide voltage voltage input. Input. The radio has automatic frequency hopping function, strong anti-interference ability, high transmission rate and small delay; automatic frequency hopping technology is to ensure the secrecy of the communication and anti-interference, compared with the fixed frequency communication, the frequency hopping communication is more hidden and difficult to be intercepted. Frequency hopping communication also has good anti interference ability, even if part of the frequency point is interfered with, still can be in other uninterfered frequency point for normal communication. Wireless digital transmission radio as a communication medium, and optical fibre, microwave, open wire, as well as a certain scope of application: it provides some special conditions in the dedicated network of real-time monitoring signals, reliable data transmission, with low cost, easy installation and maintenance, strong ability to bypass the shot, the network structure is flexible, the coverage of the far range of characteristics, suitable for the point of much more and dispersed, geographically complex and other occasions, and can be used with PLC, RTU, rain gauge, liquid level meter, and so on. It can be connected with PLC, RTU, rain gauge, liquid level meter and other data terminals.


ProductSiteLaunchDate : 2025-03-20T05:21:03.432Z
SpecificUsesForProduct : Business
SupplierDeclaredDgHzRegulation : unknown
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 43191510
WarrantyDescription : 1 YEAR
