Specification
Brand : EBYTE
BulletPoint : Electrical isolation VCC // Ethernet // DSL (A) // DSL (B) // FE Maximum power dissipation for nominal condition 4.32 W Mains type Permanent line Test voltage data interface/power supply 1.5 kVrms (50 Hz, 1 min.)
BulletPoint1 : EWD108-GN05 supports satellite systems: BDS/GPS/GLONASS/GALILEO/QZSS/SBAS;
BulletPoint2 : Configurable with multiple serial port baud rates (1200-115200bps); Supports standard Modbus RTU protocol to read positioning information;Multiple output formats for positioning information;
BulletPoint3 : Output antenna positioning status through registers and indicators; Support active antenna and passive antenna switching; Serial port supports TVS and over-current protection;Supports wide voltage input DC5~24V;
BulletPoint4 : EWD108-GN05 series positioning accuracy up to 1.0 m (CEP50); Supports DIN-rail and positioning hole mounting; Industrial-grade design, supporting operating temperature up to -40～85℃;
BulletPoint5 : Application Scenarios - In-vehicle positioning and navigation equipment;Industry equipment with a need for GNSS positioning or navigation; Asset tracking, etc;
BulletPoint6 : With a built-in watchdog and precise time layout, the radio will automatically restart in the event of an abnormality and continue to work according to the previous parameter settings.
Color : RS232
ExternallyAssignedProductIdentifier : 10784196703644
FrequencyBandClass : single_band
IncludedComponents : NO

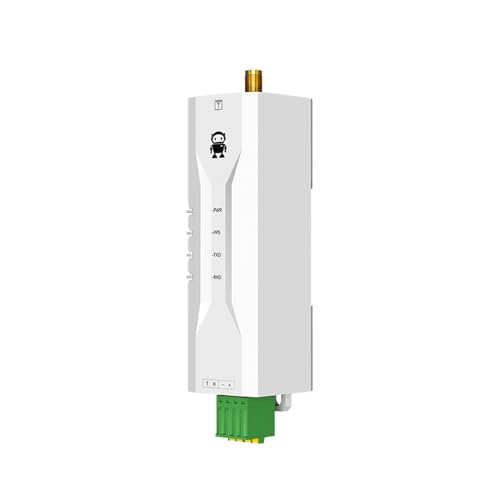

ItemName : BDS GPS GLONASS Galileo QZSS SBAS Positioning Modem CDSENET EWD108-GN05 Modbus RTU DC5-24V UTC Industrial Standard (RS232)
ItemPackageDimensions_Height : 6 centimeters
ItemPackageDimensions_Length : 19 centimeters
ItemPackageDimensions_Width : 13 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : computer-modems
Manufacturer : EBYTE
ModelName : CFTGIWcbfpsrvuhm
ModelNumber : ZJchaot10gi25gdx
NumberOfItems : 1
PartNumber : HUNT602079EC17308040AD622249EEC14A96
ProductDescription : EWD108-GN05 Support Satellite System: BDS/GPS/GLONASS/GALILEO/QZSS/SBAS
The device outputs positioning information via Modbus RTU protocol and supports the output of NMEA0183 compliant
RMC-ASCII strings and separate registers for separate storage (longitude, longitude direction, latitude, latitude direction, etc.).
The serial port baud rate can be up to 115200bps, which can be easily modified through Modbus RTU protocol, convenient and fast.
ProductSiteLaunchDate : 2025-02-25T07:42:59.923Z
SpecificUsesForProduct : Business
SupplierDeclaredDgHzRegulation : unknown
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 52161500
WarrantyDescription : 1 YEAR
