Specification
BatteriesRequired : 1
Brand : Generic
BulletPoint1 : PoE powered: Customers can connect these appliances to standard PoE switches
BulletPoint2 : A gateway between analog and digital systems enables users to encode/decode audio for transmission across a network
BulletPoint3 : Create a digital bridge between two analog systems A cost-effective solution to interconnect analog audio systems quickly and easily in different locales or buildings for wide-area communications
BulletPoint4 : Standalone capability Connect to 3rd party SIP and/or multicast capable systems and use as a Line-out audio endpoint for digital-to-analog communications. Encoder capable of generating unicast or multicast audio streams in a variety of codec formats
BulletPoint5 : [Easy Setup and Usage] Simply insert a sim card and power on the device to start. ensure compatibility by disabling the sim card pin code and modifying the apn for active use.
Color : Orange
CompatibleDevices : Laptop
ConnectivityTechnology : Ethernet
ExternallyAssignedProductIdentifier : 4711914190911
Frequency : 120
FrequencyBandClass : dual_band
IncludedComponents : No

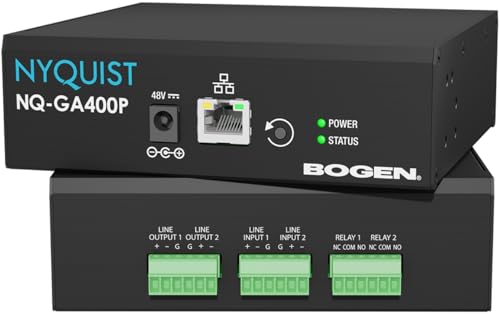

ItemName : NQ-GA400P Nyquist 2-Channel AoIP Gateway, Gateway Between Analog and Digital Systems, Create a Digital Bridge Between Two Analog Systems, Standalone Capability, PoE Powered
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 15 centimeters
ItemPackageDimensions_Width : 9 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : computer-modems
Manufacturer : Generic
ModelName : Yosoo2us5xfgo9g
ModelNumber : NQ-GA400P
NumberOfItems : 1
PartNumber : NQ-GA400P
ProductDescription : NQ-GA400P Nyquist 2-Channel AoIP Gateway, Gateway Between Analog and Digital Systems, Create a Digital Bridge Between Two Analog Systems, Standalone Capability, PoE Powered

KEY FEATURES
- PoE powered: Customers can connect these appliances to standard PoE switches
- A gateway between analog and digital systems enables users to encode/decode audio for transmission across a network
- Create a digital bridge between two analog systems A cost-effective solution to interconnect analog audio systems quickly and easily in different locales or buildings for wide-area communications
- Standalone capability Connect to 3rd party SIP and/or multicast capable systems and use as a Line-out audio endpoint for digital-to-analog communications. Encoder capable of generating unicast or multicast audio streams in a variety of codec formats

SPECIFICATIONS
- S/N Ratio (20k BW): 80dB
- Power Output Bandwidth: 20Hz - 20kHz<.1% THD+N
- THD+N @ 1 kHz Rated Power: <.05% THD+N
- Frequency Response @ 1 Watt: 20Hz - 20kHz +/-0.25dB
- Audio Amplifier Class of Operation: D
- External DC Power: 48-56VDC .1A (5.5mm x 2.1mm Barrel Jack)
- PoE+ (Power over Ethernet): Class 1 device (RJ45)
- Relay Output Connectors: 2x 3.5mm Phoenix 3 pin header
- Relay Outputs: Form-C, SPDT, 2-Amp dry contact relays
- Audio Line Level Output Connector: 2x 3.5mm Phoenix 3 pin header
- Audio Line Level Input Connector: 3-pin 3.5mm Phoenix Plug/Header
- Audio Line Level Input Sensitivity: Continuously variable from 2V to 0.1V RMS
- Audio Line Level Output: 2.2V RMS @ 10k Ohms (+27dB) Electronically Balanced
- Operating Temperature Range: -15°C to +40°C
- Protection: ESD, RF, DC, Low Frequency. Thermal, Low Impedance, Short Circuit, Clip Limiting
- Networking: Cat5 or better 10/100 network connectivity
- Dimensions: 5.32"L X 5.5"W X 1.7"H
- Weight: 1.4 lbs


ProductSiteLaunchDate : 2025-03-15T14:28:02.149Z
RecommendedUsesForProduct : Indoor/Outdoor
SupplierDeclaredDgHzRegulation : unknown
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 43222628
WarrantyDescription : No
WirelessCommStandard : 802_11_AC
