Specification
3dTechnology : no
AspectRatio : 1.77:1
Brand : Supermicro
BulletPoint1 : LGA1151
BulletPoint2 : Chipset: Intel C236
BulletPoint3 : Memory: 4x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, ECC, Unbuffered, Max Capacity of 64GB
BulletPoint4 : Slots: 1x PCI-Express 3.0 x16 Slot (runs at x8) , 3x PCI-Express 3.0 x8 Slots (two runs at x4)
BulletPoint5 : SATA: 8x SATA3 Ports, Support RAID 0, 1, 5, 10
BulletPoint6 : Video: ASPEED AST2400 BMC Graphics
BulletPoint7 : LAN: 2x Intel I210-AT Gigabit Ethernet Controllers
BulletPoint8 : Form Factor: MicroATX, 9.6 x 9.6 inch / 24.4 x 24.4 cm
BulletPoint9 : LAN: 2x Intel I210-AT Gigabit Ethernet Controllers
ChipsetType : Intel C236
CompatibleDevices : Personal Computer
CompatibleDevices1 : Computer
CompatibleDevices2 : Microcontroller
CompatibleDevices3 : Device with compatible serial port
CompatibleProcessorTypes : Intel Xeon E3-1200 v5
ConnectivityTechnology : HDMI
ConnectorType : RS485
ExternallyAssignedProductIdentifier1 : 672042200962
ExternallyAssignedProductIdentifier2 : 0672042200962
ExternallyAssignedProductIdentifier3 : 00672042200962
GraphicsCardInterface : pci_e
HardwareInterface : hdmi
HasColorScreen : 1
ImageContrastRatio : 1000:1
InputVoltage : 5 volts

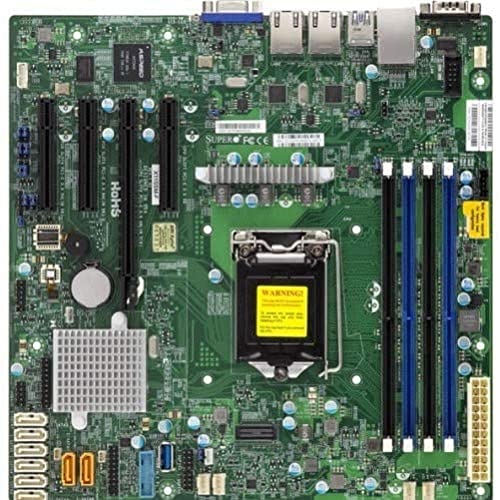

ItemName : Supermicro Motherboard MBD-X11SSM-F-B Xeon E3-1200 v5 LGA1151 Socket H4 C236 PCI Express SATA MicroATX Bulk
ItemPackageDimensions_Height : 36 centimeters
ItemPackageDimensions_Length : 3.3 centimeters
ItemPackageDimensions_Width : 6.2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : computer-motherboards
MainPowerConnectorType : 24-Pin
Manufacturer : Supermicro
MemoryClockSpeed : 1866 MHz
MemorySlotsAvailable : 4
MemoryStorageCapacity : 64 GB
ModelName : MBD-X11SSM-F-B
ModelNumber : MBD-X11SSM-F-B
MotherboardType : Micro ATX
NativeResolution : 480 x 1920
NumberOfItems : 1
NumberOfPorts : 10
PackageLevel : unit
PartNumber : MBD-X11SSM-F-B
PixelPitch : 0.35
Platform : windows_10
PowerPlugType : no_plug
ProductDescription :

Features

Original FT232RL onboard
Supports Mac, Linux, Android, WinCE, Windows 7/8/8.1/10...
3 power mode : 5V output, 3.3V output, or powered by target board (3.3V-5V)
3 LEDs: TXD LED, RXD LED, POWER LED
Functional Pins
* TXD, RXD, RTS#, CTS# : connected to the onboard soldered pinheaders
* The other Pins : accessable on the drill holes (separate pinheaders are also provided for easily connecting to user system, the pitch is compatible with bread boards)

How to Use (In the case of working with a MCU)

VCCIO--3.3V or 5V output (the module is powered from USB, onboard jumper should be shorted to 3.3V or 5V)
GND -- GND
TXD -- MCU.RX (signal direction: MCU.RX < FT232 < PC.TX)
RXD -- MCU.TX (signal direction: MCU.TX > FT232 > PC.RX)
RTS -- MCU.CTS (signal direction: MCU.CTS < FT232 < PC.RTS)
CTS -- MCU.RTS (signal direction: MCU.RTS > FT232 > PC.CTS)

Package Contains
FT232 USB UART Board (micro) × 1
5-pin male pinheader & 5-pin female pinheader × 2
6-pin custom connector jumper wire × 1

For more details you may need to know, pls firstly send me message via Amazon,
I will then send attached link including User Guide for you, thank you for patience.:)


ProductSiteLaunchDate : 2016-06-10T00:00:00.000-07:00
RealAngleOfView : 178 degrees
Resolution : 400x1920
ScreenSurfaceDescription : Glossy
SpdifConnectorType : Optical
SpecificUsesForProduct : PC, Laptop
StreetDate : 2019-10-24T00:00:01Z
Style : X11SSM-F-B
SupplierDeclaredDgHzRegulation : not_applicable
SystemBusStandardSupported : SATA 3
TotalEthernetPorts : 2
TotalHdmiPorts : 1
TotalPciEPorts : 4
TotalSataPorts : 8
TotalUsbPorts : 11
TotalVideoOutPorts : 1
UnitCount : 1
UnspscCode : 43200000
ViewingAngle : 178 degrees
WarrantyDescription : 1 year
