Specification
Brand : Hyuduo
BulletPoint1 : The detection range of the sensor can be adjusted with potentiometer, little interference, easy assembly and use.
BulletPoint2 : Active infrared reflection detecting sensor, so the target reflectivity and shape is the key of the detection range.Black color has the minimum detection range, white has the maximum; small objects have short detection range, large objects have long dete
BulletPoint3 : Sensor module output port OUT can be directly connected to micro-controller IO port, also can drive a 5V relay directly.
BulletPoint4 : It can be widely used for robot obstacle avoidance, obstacle avoidance car, assembly line, black and white line tracking and many other occasions.
BulletPoint5 : Whenmodule detects obstacles ahead, the green indicator light on the circuit board is on and at the same time the OUT port outputs lowsignal; detection distance can be adjusted with potentiometer, clockwise to increase detection distance;c
IncludedComponents : No

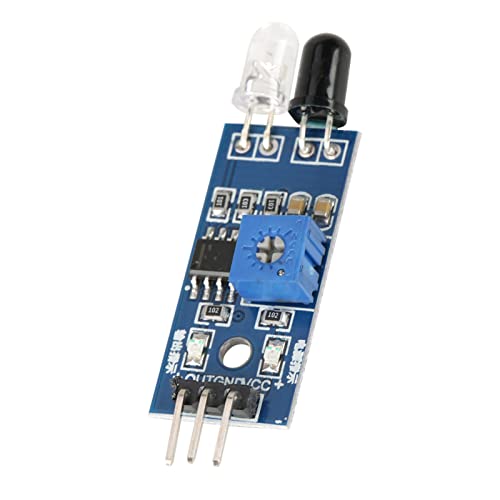

ItemName : Infrared Sensor, 5pcs IR Obstacle Avoidance Sensor Module for Smart Car Robot with Adjustable Detection Range and Easy Assembly, Proximity Sensors
ItemPackageDimensions_Height : 2 centimeters
ItemPackageDimensions_Length : 13 centimeters
ItemPackageDimensions_Width : 9 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : motion-detectors
ItemTypeName : Motion Detectors
Manufacturer : Hyuduo
ModelName : Hyuduouwhfmvbncg
ModelNumber : Hyuduo4d0v8ng5h3
NumberOfItems : 1
PartNumber : Hyuduo4d0v8ng5h3
ProductDescription : Designed with 3mm screw holes for convenient fixation and easy installation;
Each module has already adjusted threshold compare voltage with potentiometer well, so please do not arbitrarily adjust potentiometer.
Specifications:
Working Voltage: 3.3~5V
Detecting Range: 2~30cm
Detection Angle: 35°
Wiring: VCC-VCC; GND-GND; OUT-IO
Size: 4*1.5cm/1.5*0.6in
Quantity: 5pcs
Weight: 3g(approx.)
Module Interface:
VCC: External connection of 3.3V-5V voltage(can be directly connected to 5V micro-controller and 3.3V micro-controller)
GND: External GND
OUT: Digital output port(0 and 1)

Package Includes:
5 x Modules
