Specification
Brand : MeitrciL
BulletPoint1 : Time-of-Flight (ToF) Ranging Sensor: The laser ranging module can accurately measure the time required for infrared light pulses to reach obstacles and reflect back to the detector.
BulletPoint2 : Highly Accurate Distance Measurement: Laser distance sensors can provide ranging up to 2 meters (6.6 feet) with a resolution of 1 millimeter, accurately determining the absolute distance to the target.
BulletPoint3 : Scope of Application: VL53L0XV2 has a small size, is easy to integrate, and is suitable for various applications, including robots, drones, automation, gesture recognition, industrial projects, etc.
BulletPoint4 : Easy to Connect: With the I2C interface, it is easy to connect and configure. The sensor provides two additional pins: turn off input and interrupt output.
BulletPoint5 : Working Voltage: 2.6V-5.5V, VL53L0X is a time-of-flight ranging system integrated into a compact module. 4 Pack VL53L0X time-of-flight ranging sensor.
Color : White
ExternallyAssignedProductIdentifier1 : 0760212167716
ExternallyAssignedProductIdentifier2 : 760212167716
IncludedComponents : pin

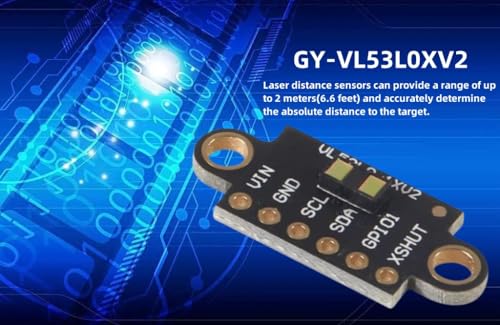

ItemName : VL53L0X Time-of-Flight (ToF) Laser Ranging Sensor, 5PCS Breakout 940Nm -VL53L0XV2 Laser Flight Distance Measurement Sensor Module I2C IIC for Absolute Distance Measurement
ItemPackageDimensions_Height : 0.3 inches
ItemPackageDimensions_Length : 1.1 inches
ItemPackageDimensions_Width : 0.5 inches
ItemPackageQuantity : 1
ItemTypeKeyword : motion-detectors
ItemTypeName : Time-of-Flight (ToF) Laser Ranging Sensor
Manufacturer : MeitrciL
MaximumRange : 2 meters
ModelName : Time-of-Flight (ToF) Laser Ranging Sensor
ModelNumber : KV4FV21G3
MountingType : Pole Mount
NumberOfItems : 5
PartNumber : Saluaqui5i60vc3t7m-11
PowerSourceType : Corded Electric
ProductDescription : PIN Description:
VDD Regulated 2.8 V output. Almost 150 mA is available to power externalcomponents. (If you want to bypass the internal regulator, you can instead usethis pin as a 2.8 V input with VIN disconnected.)
VIN This is the main 2.6 V to 5.5 V power supply connection. The SCL and SDAlevel shifters pull the I2C lineshigh to this level.
GND The ground (0 V) connection for your power supply. Your I2C control source must also share a common groundwith this board.
SDA Level-shifted I2C dataline: HIGH is VIN, LOW is 0 V
SCL Level-shifted I2C clockline: HIGH is VIN, LOW is 0 V
XSHUT This pin is an active-low shutdown input; the board pulls it up to VDDto enable the sensor by default. Driving this pin low puts the sensor intohardware standby. This input is not level-shifted.

Parameter:
1. ToF ranging length: ≤2M
2. Accuracy: up to ±3% (affected by environmental conditions and target characteristics)
3. Ranging time: ≤30ms
4. Power consumption: 20mW
5. Standby power consumption: 5μA

Package Includes:
5* VL53L0XV2 Time-of-Flight (ToF) Laser Ranging Sensor
