Specification
Brand : DMBGRXJF
BulletPoint : Alternators
Color : One Color
ExternallyAssignedProductIdentifier : 7375605547377

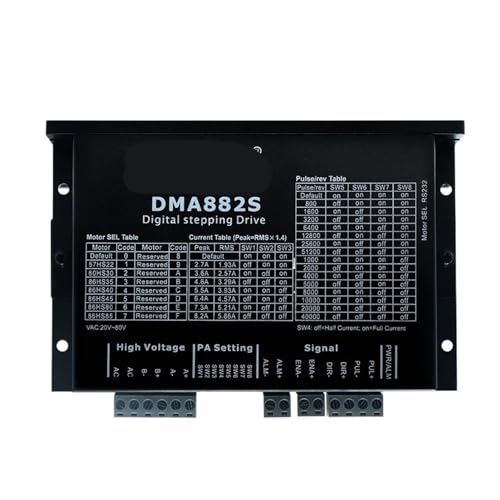

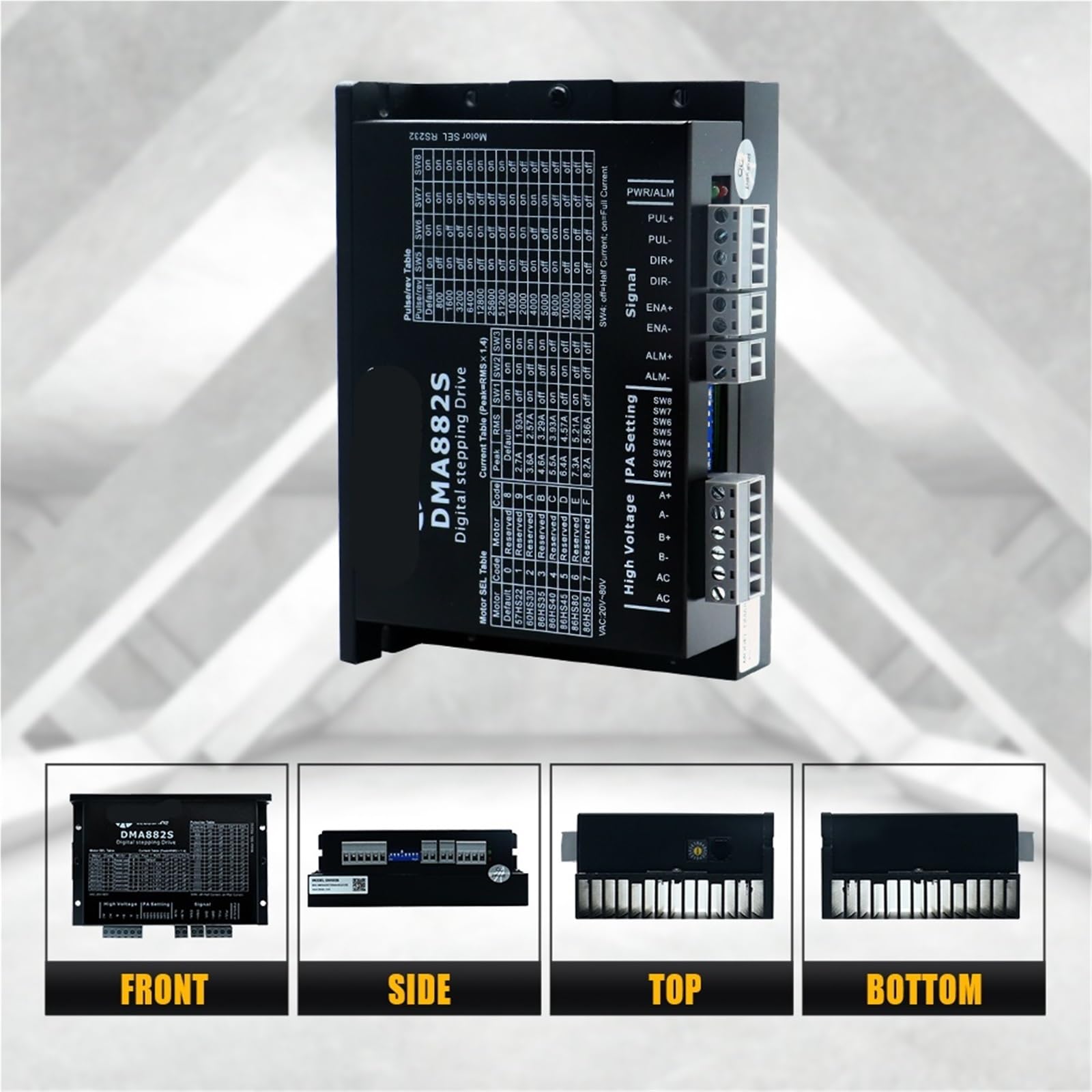

ItemName : DMA882S 110V DC 80V AC 8.2A 200Khz Digital Stepper Motor Drive with RS232 for CNC Engraver Stepping Driver 1Pcs
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-motor-drives
Manufacturer : DMBGRXJF
ModelName : DMBGRXJF
ModelNumber : DMBGRXJF
NumberOfItems : 1
PartNumber : DMBGRXJF
ProductDescription : Alternators
Features
Step & direction PULDIR) or CW/CCW (double pulse) control
24-110VDC or 18-80VAC supply voltage
200 KHz max pulse input frequency
16 microstep resolutions of 400-51,200 via DIP switches,
or 200-51,200 via software (increase by 200)
8 output current of 2.1-8.2A via DIP Switches, or 0.5-8.2A via software (increase by 0.1)
Configurable control command smoothing for reducing motor vibration
Idle current reduction to 50% or 100% selection via SW4
Sensor-less stall detection
low motor heating and noise
5V control signal with optocoupler isolation
Fault output
Over-voltage, over-current protections
Applications
The DMA882S stepper drive is designed to power 2 phase (1.8°) or 4-phase (0.9°) NEMA23, 24 and 34 hybrid stepper motors. It can be adopted in many industries (CNC machinery, electronics, medical, automation, packaging) for applications such as CNC routers, mills, plasma, laser cutters, factory assembly lines, vending machines, etc. Its excellent performance, simple design, and easy setup features make DMA882S ideal for many step & direction control type applications
Autotuning and Motor Model Selection (Rotary Switch)
Auto-tuning means that the current loop parameters are automatically configured when the DMA882S is powered on.
When the rotary switch is set to "0", or "8" - "F", you can turn off auto-tuning and modify current loop parameters through ProTuner
Motor Model Selection means that the current loop parameters and resonant point damping parameters are automatically configured when DMA882S is powered on.
Every time change the rotary switch, you need to restart the power supply to activate the setting.
Color : black
Power Supply : AC
Model Number : DMA882S
Motor Type : Stepper Motor
Rated Max Current : 5.9A
Peak Current : 8.2A
Pulse Per Revolution : 400 to 51200ppr
Singnal Input :
ProductSiteLaunchDate : 2024-11-02T10:45:50.609Z
Size : AC20V to 80V
UnitCount : 1
