Specification
Brand : YIDOFENG

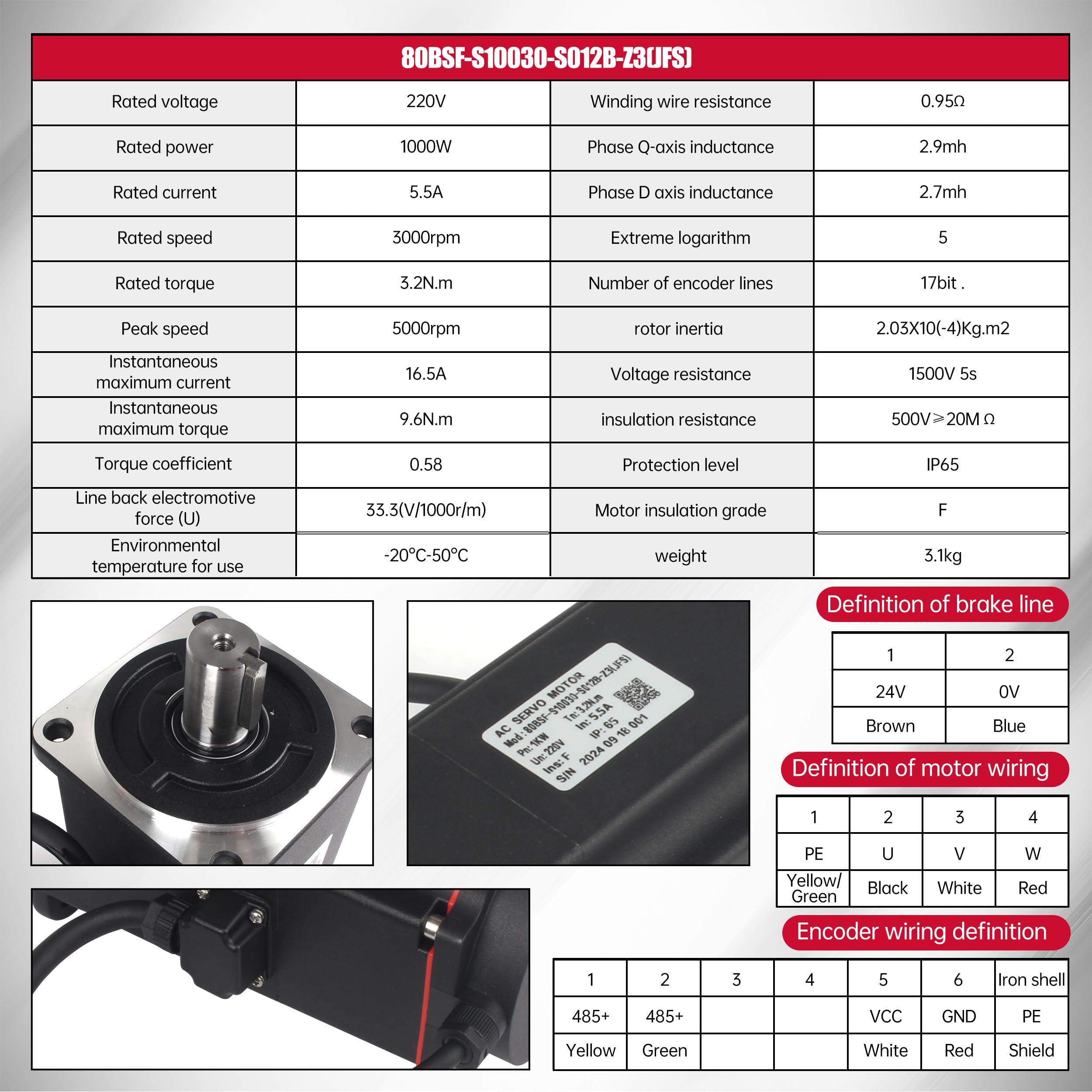

BulletPoint1 : 【Motor Parameters】Model: 80BSF-S10030-S012B-Z3(JFS); With brake; Power: 1000W; Number of poles: 5 pairs; Rated power supply: 220V; Rated speed: 3000r/min; Peak speed: 5000r/min; Rated torque: 3.2N.m; Max torque: 9.6N.m; Rated current: 5.5A; Max current: 16.5A;Protection structure: IP65
BulletPoint2 : 【Driver Parameters】Model: M864S; Input voltage: AC220V (50/60Hz); Power:0.1KW-1KW;Cooling method: Heat dissipation air cooling; Encoder type: 17 bit magnetic encoder.Control mode: SVPWM control; Operating temperature: 0℃-+55℃; Storage temperature: -20℃-80℃; Protection level: IP54
BulletPoint3 : 【17 bit Encoder】Matching with 17 bit single loop absolute value encoder, 5 pairs of poles,to ensure the accuracy ; With Strong applicability,all input/output ports can be freely defined and have strong applicability,a variety of intelligent monitoring functions and operation panels are convenient for customers to debug and diagnose.
BulletPoint4 : 【Driver Functions】Over voltage,over load,over current,Under voltage,encoder exception,position error etc.Position control, speed control, torque control Modbus communication can be converted to meet common applications,standard RS485 communication function, realize upload and download network control.The internal simple PLC function, in some simple control occasions, PLC can be completely omitted, and a lower cost solution can be realized.
BulletPoint5 : 【Application】Widely apply to Industrial manipulator,Engraving Carving equipment,Semiconductor equipment,Measuring equipment,Medical equipment,Industrial robot and other automated equipment on the market
CircuitType : 2-way
Color : Black
ConnectorType : Screw
CurrentRating : 20 amps
ExternallyAssignedProductIdentifier : 7365698515513
ExternallyAssignedProductIdentifier1 : 0765147958637
ExternallyAssignedProductIdentifier2 : 765147958637

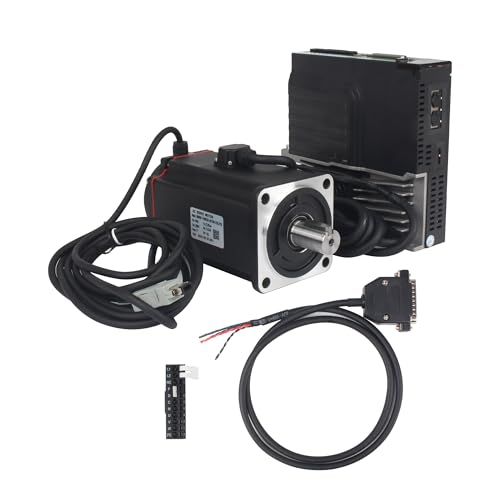

IncludedComponents : AC Servo Motor + Servo Drive +Cable
InternationalProtectionRating : IP55
ItemName : YIDOFENG with Brake 1000W AC Servo Motor Kit, CNC 220V 5.5A 3000rpm L3000 17-bit Encoder RS485 Servo Motor Driver Controller Kit for CNC Engraver Milling Machine/Robot
ItemPackageDimensions_Height : 7.87 inches
ItemPackageDimensions_Length : 11.81 inches
ItemPackageDimensions_Width : 9.84 inches
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-motor-drives
LightType : Non-Illuminated
Manufacturer : KAKA-US
Material : Metal
ModelName : QRTOKRRKT
ModelNumber : QRTOKRRKT
MountingType : Panel Mount
NumberOfItems : 2
NumberOfPositions : 1
OperatingVoltage : 12 volts
OperationMode : ON-OFF
PartNumber : 80BSF-S10030-S012B-Z3(JFS)
ProductDescription : YIDOFENG With Brake 1000W AC Servo Motor Kit, CNC 220V 5.5A 3000rpm L3000 17-bit Encoder RS485 Servo Motor Driver Controller Kit for CNC Engraver Milling Machine/Robot
ProductSiteLaunchDate : 2024-10-14T08:51:39.853Z
Size : G2R-1-E 12VDC
SpecificationMet : CE
Style : 1000W with brake
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
SwitchType : Toggle
TerminalType : Screw
UnitCount : 1
UnspscCode : 26111500
Voltage : 220 volts
Wattage : 1000 watts
