Specification
Brand : MybotOnline
BulletPoint : Drives
BulletPoint1 : Features intelligent output current adjustment, eliminating the need for manual tuning.
BulletPoint2 : Simultaneously supports 5V/24V control signals without manual switching.
BulletPoint3 : Does not support brake signal input.
BulletPoint4 : Compatible with encoders of any resolution between 0–5000 PPR, configurable via software.
BulletPoint5 : We focus on product quality, rather than marketing, in order to deliver the finest quality of product at a fraction cost.
Color : 240W
ExternallyAssignedProductIdentifier : 9154603670816
ExternallyAssignedProductIdentifier1 : 0758073906285
ExternallyAssignedProductIdentifier2 : 758073906285
ExternallyAssignedProductIdentifier3 : 024822094238
GpsrSafetyAttestation : 1
IncludedComponents : no
ItemDisplayWeight : 1 pounds
ItemName : YS Series 1 Axis 9.00Nm(1274.5oz.in) Nema 34 Closed Loop Stepper Kit with 2.0m Cables & Driver CL86Y 0-8.5A 20-80VAC/30-110VDC
ItemPackageDimensions_Height : 16 centimeters
ItemPackageDimensions_Length : 28 centimeters
ItemPackageDimensions_Width : 25 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-motor-drives
Manufacturer : OSM Technology Co., Limited
Material : copper
ModelNumber : 440R-D22R2--HW
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : 1-CL86Y-S90
ProductDescription : This CNC kit includes:

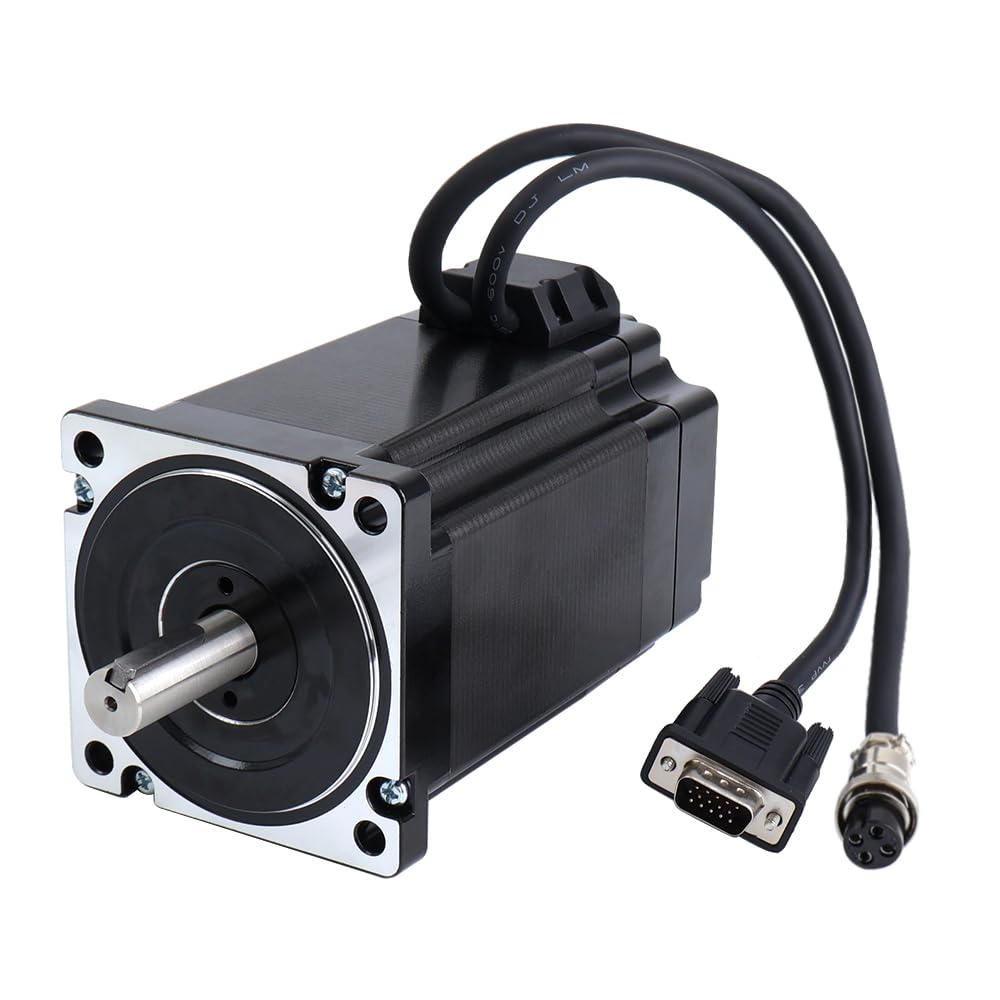

1 x 34HS46-6004D-E1000: Nema 34 Closed Loop Stepper Motor 9.00Nm(1274.50oz.in) Encoder 1000PPR(4000CPR)
1 x CL86Y: Y Series Closed Loop Stepper Driver 0-8.5A 20-80VAC/30-110VDC for Nema 34 Stepper Motor
1 x CE2-M2-18: 1.7m(67") Motor AWG18 and Encoder Extension Cable

Motor Specification

Part Number: 34HS46-6004D-E1000
Number of phase: 2
Holding Torque: 9.00Nm(1274.50oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.4ohms
Inductance: 3.6mH ± 20%(1KHz)
Frame Size: 86 x 86mm
Body Length: 137mm
Shaft Diameter: φ14mm
Shaft Length: 37mm
Keyway Shaft Length: 25mm
Cable Length: 300mm
Insulation Class: B 130°C[266°F]

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Optical Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 2 channels
Minimum Supply Voltage: 4.5V
Maximum Supply Voltage: 5V
Output Current: 25mA
Output High Voltage: 4.5V
Output Low Voltage: 4.2-4.3V
Output Frequency Max: 60kHZ

Driver Specification

Output Peak Current: 0~8.5A（0~6RMS）
Input Voltage: 20~80VAC/30~110VDC(Typical 48/60VDC)
Logic Signal Current: 7~16mA(Typical 10mA)
Pulse Input Frequency: 0~200kHz
Pulse Width: 2.5μS
Isolation Resistance: 500MΩ

ProductSiteLaunchDate : 2025-03-14T08:03:12.550Z
Size : ELG-240-48A-3Y
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 26111500
