Specification
Brand : DMBGRXJF
BulletPoint1 : Motor Speed Controllers
BulletPoint2 : 【See the second picture of the variant for detailed parameters】
BulletPoint3 : 【See the second picture of the variant for detailed parameters】
Color : 20KG 300Degree Core
ExternallyAssignedProductIdentifier : 7375606572903

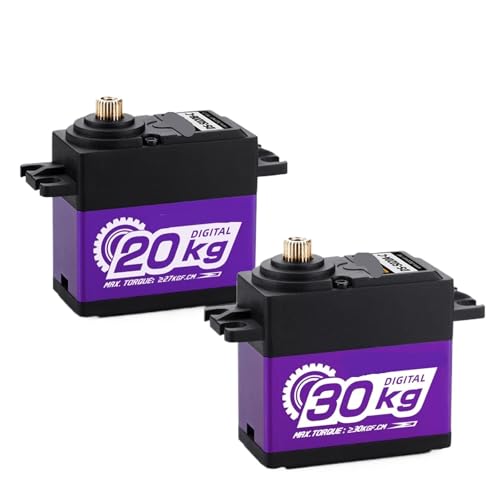

ItemName : 20kg 30kg 180° 300° Digital Servo Metal Gear Motor 1Pcs(20KG 300Degree Core)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : motor-speed-controllers
Manufacturer : DMBGRXJF
ModelName : DMBGRXJF
ModelNumber : DMBGRXJF
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : DMBGRXJF
ProductDescription : Motor Speed Controllers
Item name: DS-S020B-C
Quantity: 1pcs
Color:Blue
Operating Voltage : 6.0~7.4V DC
Max. Torque : 6.0V22.0kgf.cm ; 7.4V28.0kgf.cm
No Load Speed : 6.0V0.26sec/60°; 7.4V0.22sec/60°
Stall Current:6.0V 3000mA;7.4V3600mA
Consumption Current* (No Load):6.0V 130mA;7.4V150mA
Max. Operating Travel Angle:180° ±10°/300°±10° (500~2500 us)
Dead Band Width: 4us
Mechanical Limit Angle: 360°
Communication Interface: PWM
Motor Type: Core motor
Case Material: PA+30%GF,Mid aluminum case
Gear Set Material : Metal gear
Horn Gear Spline:25T/5.90mm
Weight: 70g
Size: 49 × 20.2 × 44.30mm
Length of Connector cable: JR 3 wire 270MM±5mm
Item name: DS-S020A-C
Quantity: 1pcs
Color:Blue
Operating Voltage : 6.0~7.4V DC
Max. Torque : 6.0V25.0kgf.cm ; 7.4V32.0kgf.cm
No Load Speed : 6.0V0.20sec/60°; 7.4V0.17sec/60°
Stall Current:6.0V 4500mA;7.4V6000mA
Consumption Current* (No Load):6.0V 150mA;7.4V180mA
Max. Operating Travel Angle:180° ±10°/300°±10° (500~2500 us)
Dead Band Width: 4us
Mechanical Limit Angle: 360°
Communication Interface: PWM
Motor Type: Core motor
Case Material: PA+30%GF,Mid aluminum case
Gear Set Material : Metal gear
Horn Gear Spline:25T/5.90mm
Weight: 70g
Size: 49 × 20.2 × 44.30mm
Package included:
1 * 20/30KG 180°/300° Digital Servo
1 * Servo Arm Accessories
Is Electric : No battery
Quantity : 1 pcs
Wheelbase : Bottom Plate
Size : 49 x 20.2 x 44.30mm
Technical parameters : Value 6
Model Number : DS-S020B-C/DS-S020A-C
ProductSiteLaunchDate : 2024-11-09T04:47:07.175Z
Size : One Size
UnitCount : 1
