Specification
Brand : Ransanx

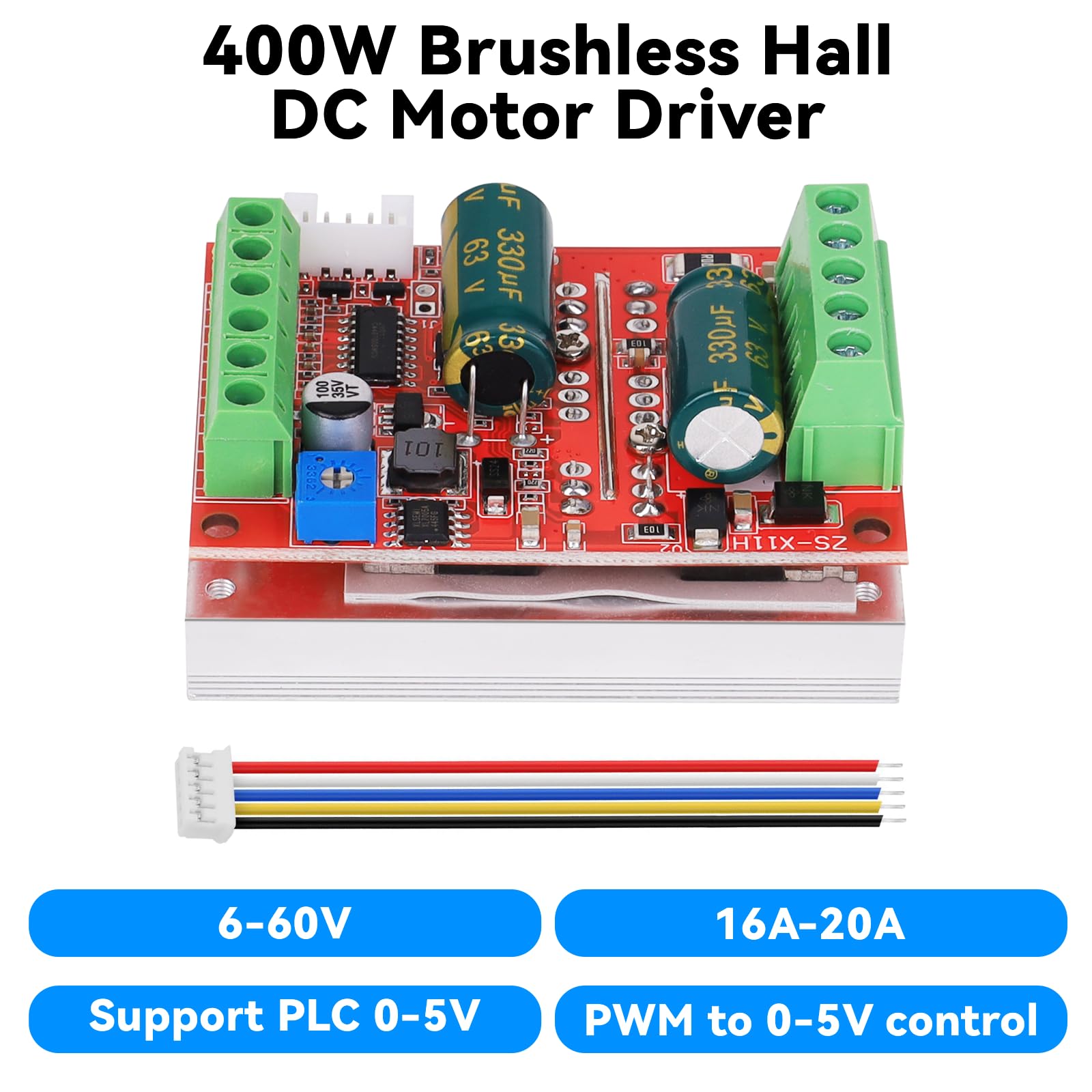

BulletPoint1 : 【Motor controller parameters】three-phase DC brushless motor control board power 400W, wide voltage 6-60V, DC three-phase brushless Hall controller supports PLC, 0-5V touch volume control, supports PWM control, amplitude 2.5-5 V, this driver is only suitable for DC brushless Hall motor 120 degrees angle
BulletPoint2 : 【DC motor governor】MA MB MC phase line output motor. 5V GND main board comes with 5V power supply. VCC GND main power supply. SC speed pulse signal output. DIR direction control forward/backward control interface. STOP stop control interface. BRAKE brake control indication brake control port. Speed control input speed control signal.
BulletPoint3 : 【Motor governor】Brushless motors generally also have five Hall wires or interfaces. Two of them are Hall power cables and three are Hall signal wires to distinguish the Hall power cord in particular. The three Hall signal wires are generally marked with a b c, and the driver board also has three ports of ha Hb Hc and other similar characters, which are connected accordingly, and have overcurrent, forward/reverse/stop/brake functions
BulletPoint4 : 【Note】Since there is no fuse in the power supply circuit of the main board, it needs to be added by yourself. Otherwise, human error will cause product damage. The wiring tester will conduct a low current and low voltage test first, and then a high current and high voltage test after success. For bare board modules, pay attention to the insulation of the wires when wiring, and do not let strong voltages contact the board.
BulletPoint5 : 【Wide application and service】The application scenarios of brushless motors are very wide, such as electric vehicles, drones, fans, blowers, smoke machines, etc. If you encounter any problems, please contact us, we are online 24 hours a day, we will give you a perfect solution!
CircuitType : 1-way
ConnectorType : Wire Leads
ControlMethod : touch
ExternallyAssignedProductIdentifier1 : 0687117752376
ExternallyAssignedProductIdentifier2 : 687117752376
IncludedComponents : dc motor speed controller

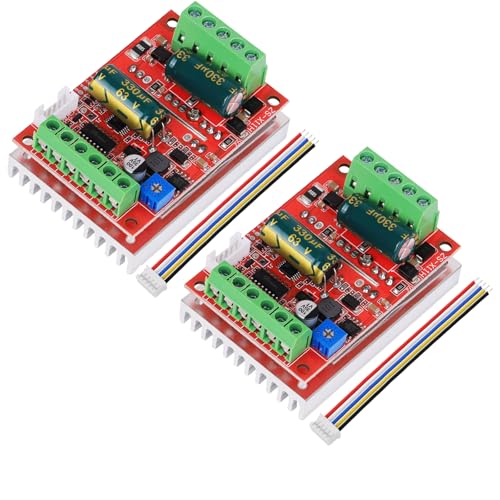

ItemName : 2PCS 6-60V 400W DC Three-Phase Brushless Motor Speed Controller with Hall ，PWM Motor Control Driver Board 12V 24V 48V with Forward/Reverse/Stop/Brake Function
ItemPackageDimensions_Height : 12.9032 centimeters
ItemPackageDimensions_Length : 6.8072 centimeters
ItemPackageDimensions_Width : 11.9126 centimeters
ItemPackageQuantity : 4
ItemTypeKeyword : motor-speed-controllers
Manufacturer : Ransanx
Material : Metal
MountingType : Panel Mount
NumberOfItems : 2
NumberOfPositions : 1
OperatingVoltage : 12 volts_of_direct_current
OperationMode : manual
PartNumber : motor speed controller
ProductDescription : 2PCS 6-60V 400W Three-Phase Brushless Motor Speed Controller with Hall ，PWM Motor Control Driver Board 12V 24V 48V with Forward/Reverse/Stop/Brake Function
ProductSiteLaunchDate : 2025-03-19T08:44:40.394Z
Style : 2PCS
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
SwitchType : Push Button
TerminalType : Through Hole
UnspscCode : 26111500
Voltage : 60 volts_of_direct_current
Wattage : 240 watts
