BulletPoint1 : [EASY TO INSTALL AND USE] - The controller features a complete function connector for easy installation and connection to external . It supports AC or DC input, with a wide power supply range of AC15V to 110V (50/60Hz) and DC 20V to 150V. The controller also has power and alarm indicator lights for easy monitoring.
BulletPoint2 : [WIDE COMPATIBILITY] - This motor speed controller can be set to control different of brushed DC motors with a voltage range of 20V-110V and power less than 2000W. It is suitable for a wide range of applications and automation systems.
BulletPoint3 : [VERSATILE MOTOR SPEED CONTROL] - This DC motor speed controller is designed for motion control cards or PLCs to efficiently drive brushed DC motors. It offers speed governing, on/off, CW/CCW rotation, locked-rotor alarm output, over-current , short circuit , and status indication.
BulletPoint4 : [ROBUST AND DESIGN] - This DC motor speed controller is designed with over-current , short circuit , and reverse input to ensure and operation. It can be used for various applications such as driving motors, boiler heat wires, and electromagnetic machines.
BulletPoint5 : [MULTIPLE CONTROL METHODS] - The speed controller can be controlled with various motion control cards, PLCs, or independently. It supports 5 different speed governing control ways, including external 0 to 5V, 0-10V, 4-20mA, PWM , and external potentiometer for manual control.
IncludedComponents : No

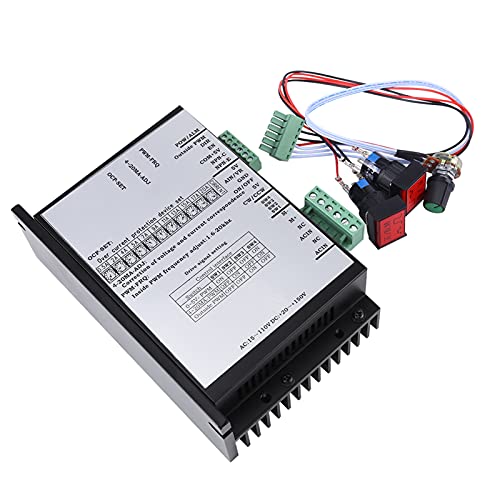

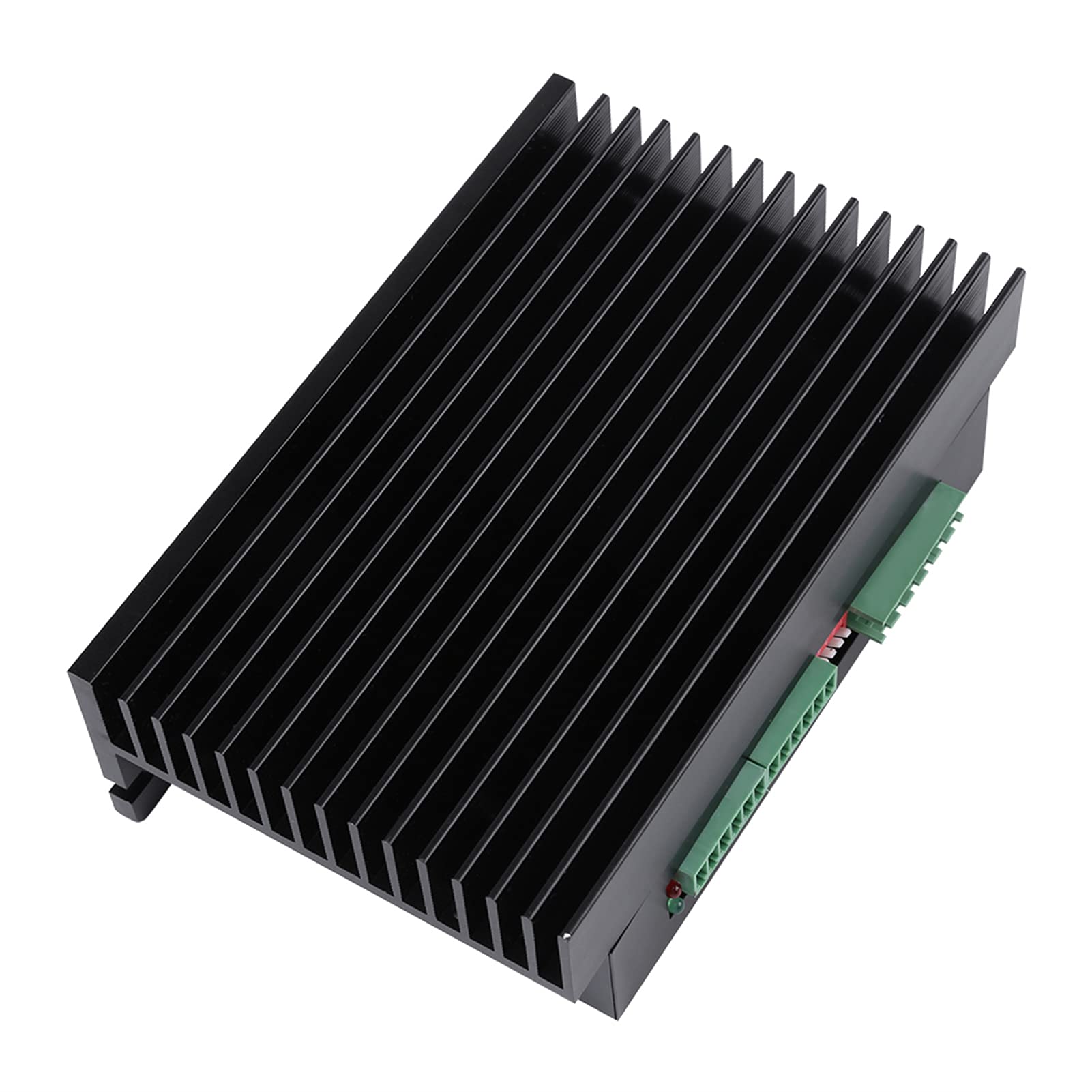

ItemName : Brushed Motor Speed Controller, AC20-110V 2000W Motor Speed Controller - PWM DC Motor Speed Controller Board for Brushed DC Motor, Motion, Controls
ItemPackageDimensions_Height : 6 centimeters
ItemPackageDimensions_Length : 20 centimeters
ItemPackageDimensions_Width : 13 centimeters
ItemTypeKeyword : motor-speed-controllers
Manufacturer : Hilitand
Material : Copper
ModelNumber : Hilitandwc30qv8b95
NumberOfItems : 1
PartNumber : Hilitandwc30qv8b95
ProductDescription : Instruction:
1, High Voltage Connector:
M-:motor-
M+: Motor+(Limit load is 2kW, nominal load is 1.5kW, if need change rotate direction, exchange two wires)
NC: empty
ACIN: Power input (no need to distinguish + or -)
Power Input:AC15V-110V(50/60Hz), DC20V-150V
2, Analog Input:
5V:Power supply 5V output pin.
AIN / VR:Analog input.This connector can connect to three kinds offor speed governing.
When using 0-5V/0-10V voltage speed governing or 4-20mA currentto speed governing, need to set 4-digit DIP switch.
1)Potentiometer Speed Governing:5V, AIN/VR, GND connect respectively to three pins of a 10kR potentiometer to manually control speed; At the same time, the 4-digit DIP switch is set as 0~5V - PWM(SW1 - ON, SW2 - OFF, SW3-OFF, SW4-ON) SW3-OFF; SW4-ON
2) :Input 0-5V or 0-10V voltagefor speed governing.AIN/VR connects to voltage , GND connects to ground.
At the same time 4-digit DIP switch is set as 0~5V - PWM(SW1 - ON, SW2 - OFF, SW3-OFF, SW4-ON
SW3-OFF; SW4-ON;
No resistor is needed for 0-5V voltageinput, directly connect to AIN/VR &GND
Two resistors should be added for 0-10V voltageinput as wiring in the diagram below:
3)Input 4-20mAfor speed governing.AIN/VR connects to current , GND connects to ground.At the same time, 4-digit DIP switch is set as 4-20MA - PWM (SW1-OFF, SW2-ON, SW3-OFF, SW4-ON) SW3-OFF; SW4-ON
GND: common ground (hot ground, do not touch when power on)
ON/OFF: Motor ON/OFFit can connect to an external switch.When not connected to GND, motor is on; when connected to GND, motor is off.The external ON/OFF switch connect respectively to ON/OFF and GND.
5V:Power supply 5V output pin.
