Specification
Brand : CNCTOPBAOS
BulletPoint1 : Introduction: This is a special operation motion control module for stepper motor/servo motor.This module does not have programmable functions,but it is equipped with multiple fixed operating modes.Users can quickly choose the appropriate motion trajectory, save it when powered off, and set the distance/speed/delay/number of cycles
BulletPoint2 : Specifications: Model is HF020; Drive size: 99.7x72x29MM / 3.92x2.83x1.14 inch; Opening size: 92x69.8MM / 3.62x2.74 inch; Screen Structure: 5 digit,high light digital tube; Operating Voltage: DC DC12-24V, >1A power supply; Motor Pulse Voltage: Collector 24V,can be directly connected to 5-24V driver; Motor Pulse Frequency: 85K HZ; 2 Output,output Voltage:0V; Input: 7 Input.The input takes 0V as the valid signal
BulletPoint3 : Multi-Functional: Automatic and manual functions;Speed can be adjusted;Forward and reverse;There is a delay function;It can run cyclically;Acceleration and deceleration settings;Electronic gear ratio setting
BulletPoint4 : Terminal blocks: Terminal blocks are cpmpact,durable,safe and reliable 3.5mm pitch terminals,3.81mm pitch locking terminals
BulletPoint5 : Applications: Widely used in industrial automation control,small mechanical equipment,cnc router engraving milling lathe machine,automatic painting industry, rotary indexing tool control industry; It can be independently run as a module,can also cooperate with other systems,as a third party module to make up for the lack of motor output shaft
Color : Black
FitType : Universal
IncludedComponents : HF020 Controller Module

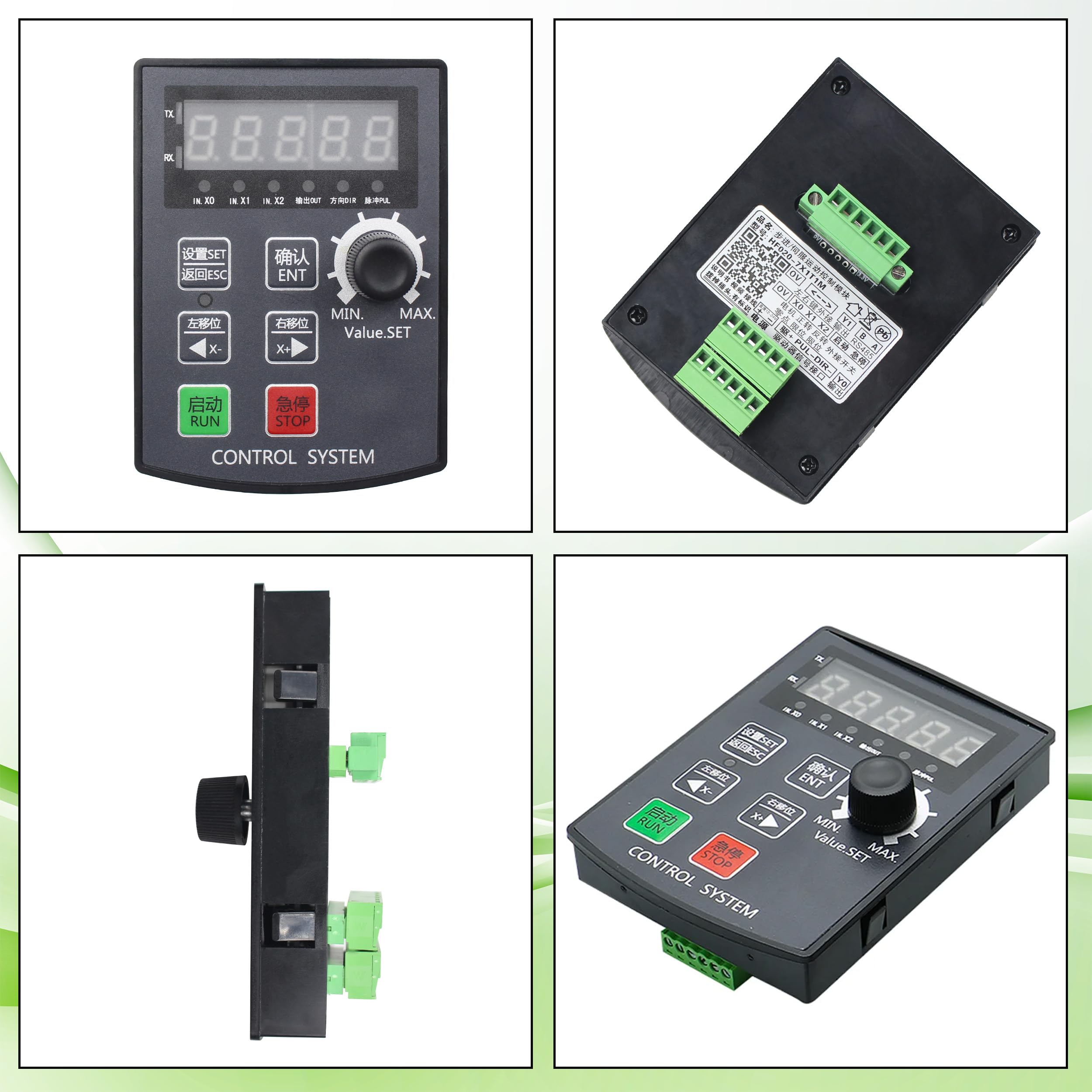

ItemName : CNCTOPBAOS HF020 Stepper Motor Motion Controller,CNC Servo Motor Preset Motion Control Module Panel System,DC12-24V 85KHz Pulse Driver Speed Limit Home Forward Reverse 2 Output 7 Input
ItemPackageDimensions_Height : 1.57 inches
ItemPackageDimensions_Length : 5.92 inches
ItemPackageDimensions_Width : 3.93 inches
ItemPackageQuantity : 1
ItemTypeKeyword : motor-speed-controllers
Manufacturer : CNCTOPBAOS
Material : Copper
ModelName : Qotoliteqoew6apd9y
ModelNumber : Qotoliteqoew6apd9y
NumberOfItems : 1
PartNumber : HF020
ProductDescription :

Package include:

1x HF020 Motor Controller Module

Introduction:

This is an operation control module specifically for stepper/servo motors.The module has no programmable function,but has a variety of fixed operating modes built-in,and users can quickly select a suitable motion track.

You can save and set the distance/speed/delay/cycle times when power off,it also support positioning/angle/lap control, support various system parameter adjustment. It can run independently as a module, or cooperate with other systems as a third-party module to make up for the lack of motor output shaft.

Suitable for the following industries:

1: Industrial automation control.

2: Small mechanical equipment.

3: Automatic painting industry.

4: Rotary indexing tooling control.

Specifications:

Motor pulse frequency is 85K HZ

Working voltage is 12-24VDC

motor pulse voltage collector 24V,can be directly connected to 5‑24V driver

5 DIGIT DIGITAL DISPLAY: 5 digit digital screen structure, high brightness digital tube, provide positive and negative limit communication.

2 Output,output voltage is 0V

7 Input with 0V as the valid signal

Features:

1. Automatic and manual functions

2. Speed can be adjusted

3. Forward and reverse

4. There is a delay function

5. It can run cyclically

6. Acceleration and deceleration settings

7. Electronic gear ratio setting

ProductSiteLaunchDate : 2024-01-30T06:19:49.496Z
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 26111500
Voltage : 24 volts_of_direct_current
