Specification
Brand : DIYElectronic
BulletPoint : DC 9V-50V Speed Controller DC Motor Speed Controller 3600W 60A PWM Speed Control Module DC10V-50V 15Khz N Switch Extension Cord
BulletPoint1 : 1. The difference between P0 and P1 versions: P0 is the self-locking mode. For example, if you press the external forward switch (K1), the motor will always keep forward. It will not stop until the reverse signal (K2) or the forward stop signal (SW1) is encountered. P1 is the jog mode. For example, when the external forward switch (K1) is pressed, the motor will rotate forward. When K1 is released, the motor will stop running immediately.
BulletPoint2 : 2. The signal is active at low level and can be connected to a three-wire sensor (NPN-NO type); K1, K2, SW1, and SW2 still have this specification.
BulletPoint3 : 3. The limit signal is valid in P1 jog mode. For example, when K1 has a signal, it will rotate forward at this time, but there is also a signal at the limit of SW1, and it will stop at this time (it will not rotate forward).
BulletPoint4 : 4. The limit signal can also be called a stop signal. The limit signal is of trigger type and level enable function. For example, if a short limit signal is encountered during forward rotation, it will stop, even if the limit signal disappears, it will still stop. The forward rotation signal must be repeated again to be forward again.
BulletPoint5 : 5. Can not realize automatic forward and reverse rotation without timing function, so strictly speaking, it cannot automatically reciprocate. But with the start switch, start switch (A), end switch (B), it can realize infinite reciprocating operation between A and B. Connection: start switch and start switch are connected to K1, end switch is connected to K2, SW1 and SW2 are not connected. Note that all switches are normally open.
CurrentRating : 40 amps
ExternallyAssignedProductIdentifier : 7361424106765
ExternallyAssignedProductIdentifier1 : 0738190910686
ExternallyAssignedProductIdentifier2 : 738190910686
FinishType : Finish
IncludedComponents : inc
ItemName : DC 9V-50V Speed Controller DC Motor Speed Controller 3600W 60A PWM Speed Control Module DC10V-50V 15Khz N Switch Extension Cord
ItemPackageQuantity : 1
ItemTypeKeyword : motor-speed-controllers
Manufacturer : DIYElectronic
Material : iron
MaximumSwitchingCurrent : 40 amps
MaximumSwitchingVoltage : 24 volts
MeasurementSystem1 : Imperial
MeasurementSystem2 : Metric
NumberOfItems : 1
OperationMode : Motor
PartNumber : DIYELJHmo_1706
PowerSourceType : PowerSource
ProductDescription :

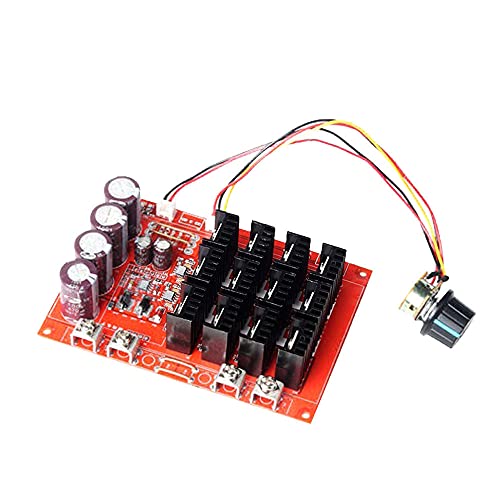

DC 9V-50V Speed Controller DC Motor Speed Controller 3600W 60A PWM Speed Control Module DC10V-50V 15Khz N Switch Extension Cord
1.
Descriptions:
It is a DC 9V-50V speed controller.It can be used for general-purpose DC brushed motor speed regulation,and different working voltages correspond to different control powers.
2.Feature:
1).It adopts industrial-grade quality and can work stably in a sub-zero environment.
2).It is widely used and can be used in a variety of different scenarios and devices.
3).It has a speed adjustment button,you can adjust the speed you want at any time,simple and convenient.
3.Parameter:

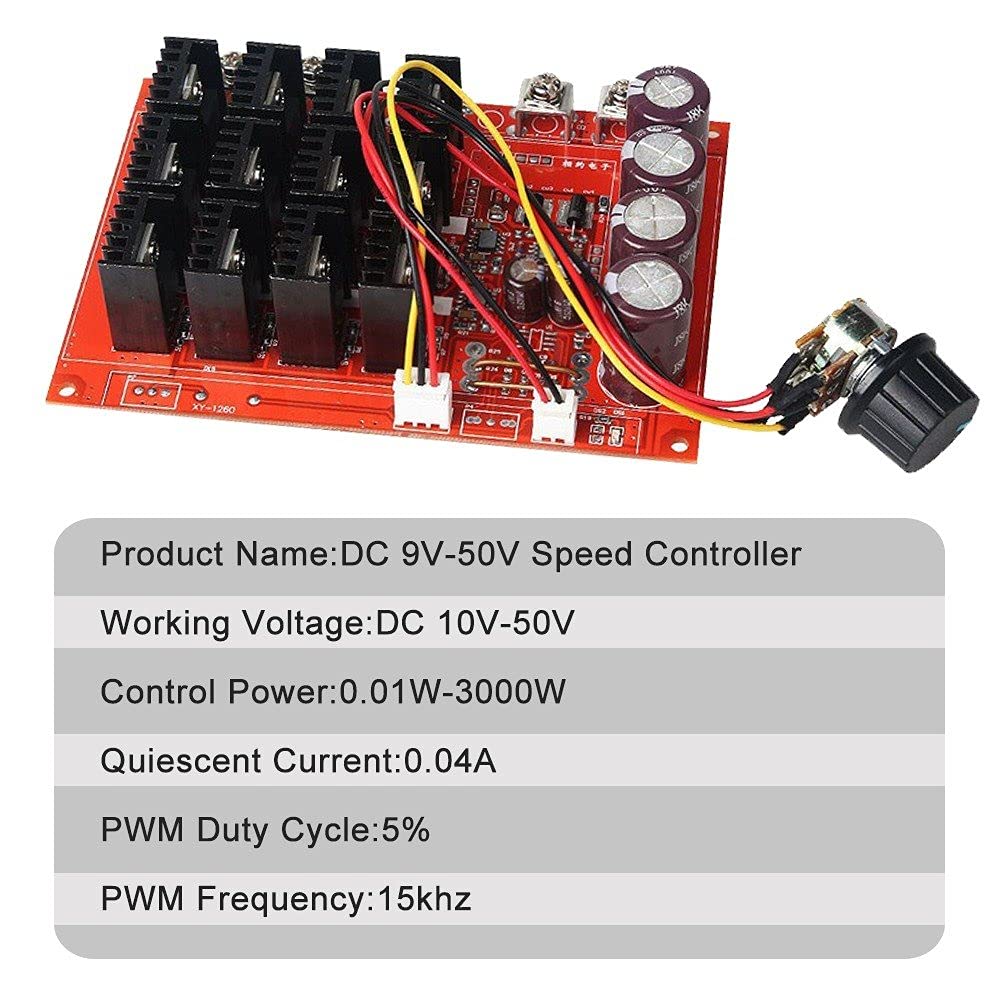

1).Product Name:DC 9V-50V Speed Controller
2).Working Voltage:DC 10V-50V
3).Control Power:0.01W-3000W(Different working voltage corresponds to different control power)
When working voltage is 12V,12V*60A=720W
When working voltage is 24V,24V*60A =1440W
When working voltage is 36V,36V*60A =2160W
When working voltage is 40V,40V*60A =2400W
When working voltage is 50V,50V*60A =3000W
4).Quiescent Current:0.04A
5).PWM Duty Cycle:5%
6).PWM Frequency:15khz
7).Work Temperature:-25℃~85℃
8).Work Humidity:5%~95%RH
9).Size:122*87*32mm
4.Application:
1.General purpose brushed DC motor speed regulation
2.Motor speed control for automobiles
3.Production line conveyor belt speed control,pipeline exhaust fan speed control,treadmill speed control,multiple computer fans parallel speed control,electronic fan speed control.
4.Dimming of various DC bulbs and temperature adjustment of various DC heaters.
5.Package:
1).1pcs DC 9V-50V Speed Controller

ProductSiteLaunchDate : 2021-09-15T18:06:44.184Z
Size : 12V 40A High Level
Style : P0 Self-locking, Trigger Start
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 26111500
