Specification
Brand : YDuupxe
BulletPoint1 : [Easy Control] Compatible with plc 0‑5v analog control, pwm to 0‑5v control, and can be operated effortlessly, saving time and effort.
BulletPoint2 : [Wide Voltage Range] Supports 6‑60v high power 400w dc three‑phase brushless motors with hall controller for versatile applications.

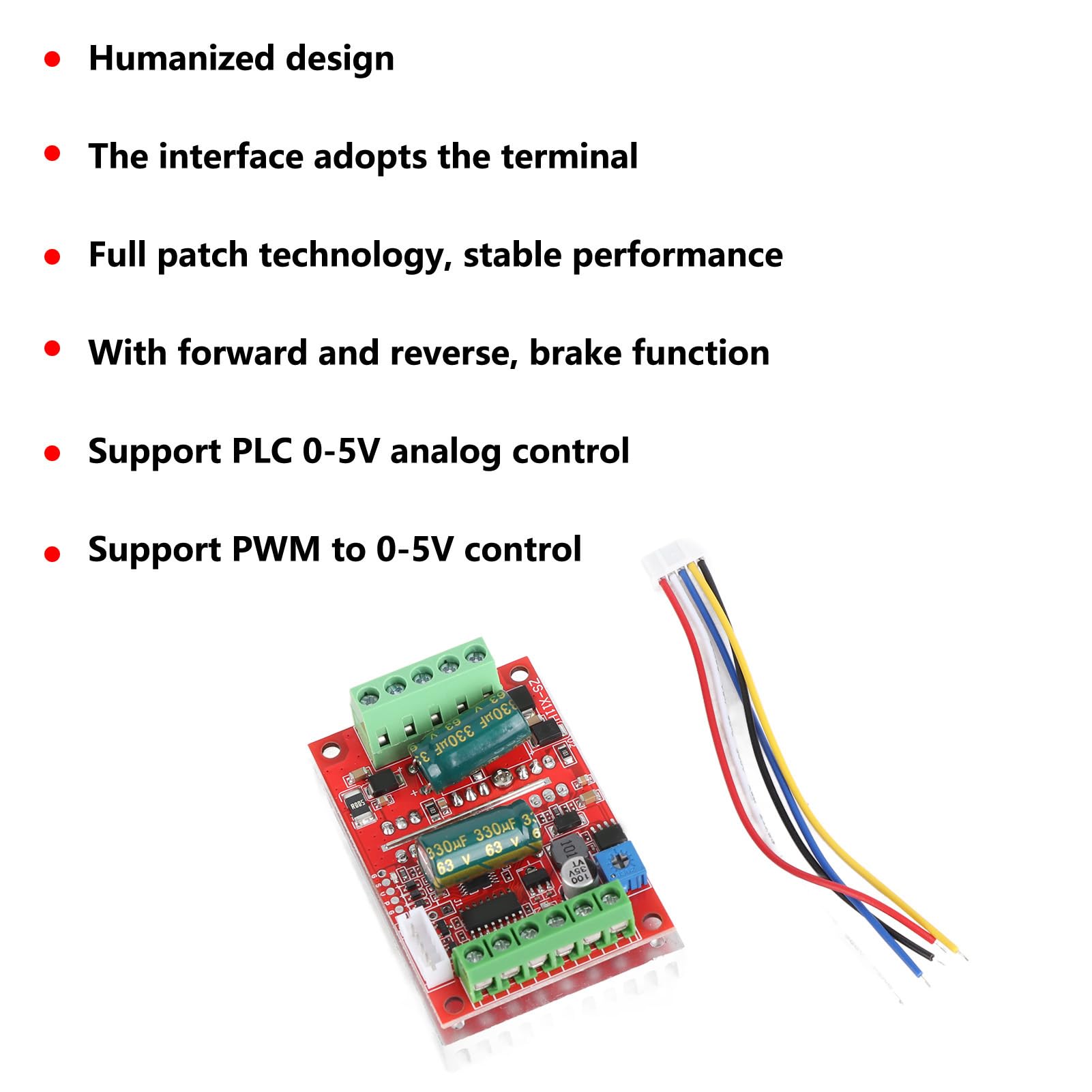

BulletPoint3 : [Humanized Design] The interface features a terminal, standard heat sink, and an integrated speed potentiometer for user convenience.
BulletPoint4 : [Stable Performance] Utilizes full chip technology, with forward and reverse functions, brake capability, and a hall brushless controller for reliable motor speed control.
BulletPoint5 : [Efficient Connectivity] The machine has three thick phase wires with corresponding interfaces on the drive board, marked ma, mb, mc, ensuring seamless integration.
ExternallyAssignedProductIdentifier1 : 763449265071
ExternallyAssignedProductIdentifier2 : 0763449265071
IncludedComponents : No
ItemName : DC Motor Speed Controller 12V 24V 48V Forward Reverse Brushless PWM DC Electric Speed Module 400W
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 8 centimeters
ItemPackageDimensions_Width : 6 centimeters
ItemTypeKeyword : motor-speed-controllers
Manufacturer : YDuupxe
ModelNumber : YDuupxem26u45vggr
NumberOfItems : 1
PartNumber : YDuupxem26u45vggr
ProductDescription : Spec:
Item Type: Motor Controller
Material: PCB
Purpose: Motor Controller
Maximum Current: Rated 16A Maximum 20A
Maximum Power: 400W
Overcurrent Protection: Yes


How to Use:
Interface Description:
1. MA MB MC phase line output is connected to the motor
2.5V GND The motherboard comes with 5V power supply (external power supply is available, the current does not exceed 50MA)
3. VCC GND main power supply (external DC power supply)
4. SC speed pulse output (only the interface is reserved, no technical support)
5. DIR direction control, forward and reverse control interface (low level is effective, can be connected to the ground external switch)
6. STOP Stop stop control interface (low level is effective and can be connected to the ground external switch)
7. BRAKE brake control brake control interface (high level is effective, 5V external switch can be connected)
8. Speed Control speed control input (onboard integrated potentiometer speed control can also be connected with 0‑5V analog quantity PWM dual input speed control)

Package List:
1 x Motor Controller
1 x Terminal Line
