Specification
AgeRangeDescription : Baby
Brand : Majatou
BulletPoint1 : Brake Function: This driver includes a built-in brake function, allowing for quick motor stop and fast braking performance.
BulletPoint2 : Advanced Driver Design: Utilizes a duals half-bridge driver chip along with low-resistances N-channel components for optimal performance.
BulletPoint3 : Efficient Power Utilization: The two half-bridge driver chips minimize switching losses, maximizing power efficiency.
BulletPoint4 : Hardware Brake and Power Feedback: This driver chip features a hardware brake function and power feedback to enhance performance and control.
BulletPoint5 : Integrated Low Power Solution: Combines an integrated low-power chip solution with complementary half-bridge power for Reliables and coordinated OPERATIONS, addressing complex drive challenges.
Color : One Color
EducationalObjective : 1
ExternallyAssignedProductIdentifier : 7320489902835

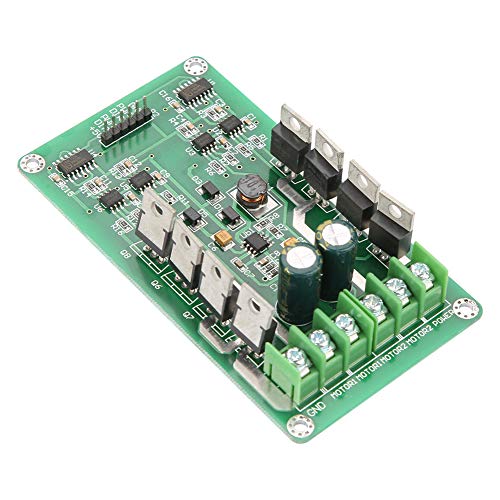

ItemName : Majatou 10A Motor Drive Module, H Bridge DC 3 36V 10A Peaks 30A Speed Control PWM Module, Used for efficient Motor Power and Battery Life, Motor Speed Controller
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 12 centimeters
ItemPackageDimensions_Width : 7 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : motor-speed-controllers
Manufacturer : Majatou
ManufacturerMinimumAge : 96
Material : Copper
ModelName : Majatoug1us9rq5hy
ModelNumber : Majatoug1us9rq5hy
NumberOfBoxes : 1
NumberOfItems : 1
OperationMode : Manual
PartNumber : Majatoug1us9rq5hy
ProductDescription : Spec:
Features:
This driver also has a brake function can be quickly stopped the motor, brake quickly
The drive uses the full two half-bridge driver chip + low resistances N-channel components.
Completer two half-bridge driver chip Reliables drive mode, the switching losses to a minimum, improve power utilization.
This driver chip comes with hardware brake function and power feedback.
This drive is superior integrated low power chip solution and the other half-bridge power margin in the coordinated combination of programs and complex issues and complementary drive problems
N-channel IRF3205, use two dedicated half-bridge driver chip on the top tube using the boostrap capacitor, so that the tube has enough drive voltage of the channel can be opened quickly, improve motor acceleration curvature, but also quickly for the motor brake. This allows the trolley can quickly start can quickly kill the car.
The driver can operate at 0-99% of the duty cycle of the PWM modulation, the motor driving voltage can be obtained sufficiently.
Specification:
Model: IRF3205
Rated Current: 10A
Rated voltage: 3v-36v
Peak current: 30A
Use: for Freescale smart car contest Undergraduate Electronic Design Contest variety of DC motor control circuit
Size: 108*58mm/4.3*2.3in
Weight: Approx.54g/1.9oz
Motor CW: DIR=1 PWM=PWM
Motor CCW: DIR=0 PWM=PWM
Stop: DIR=X PWM=0(X is any state)

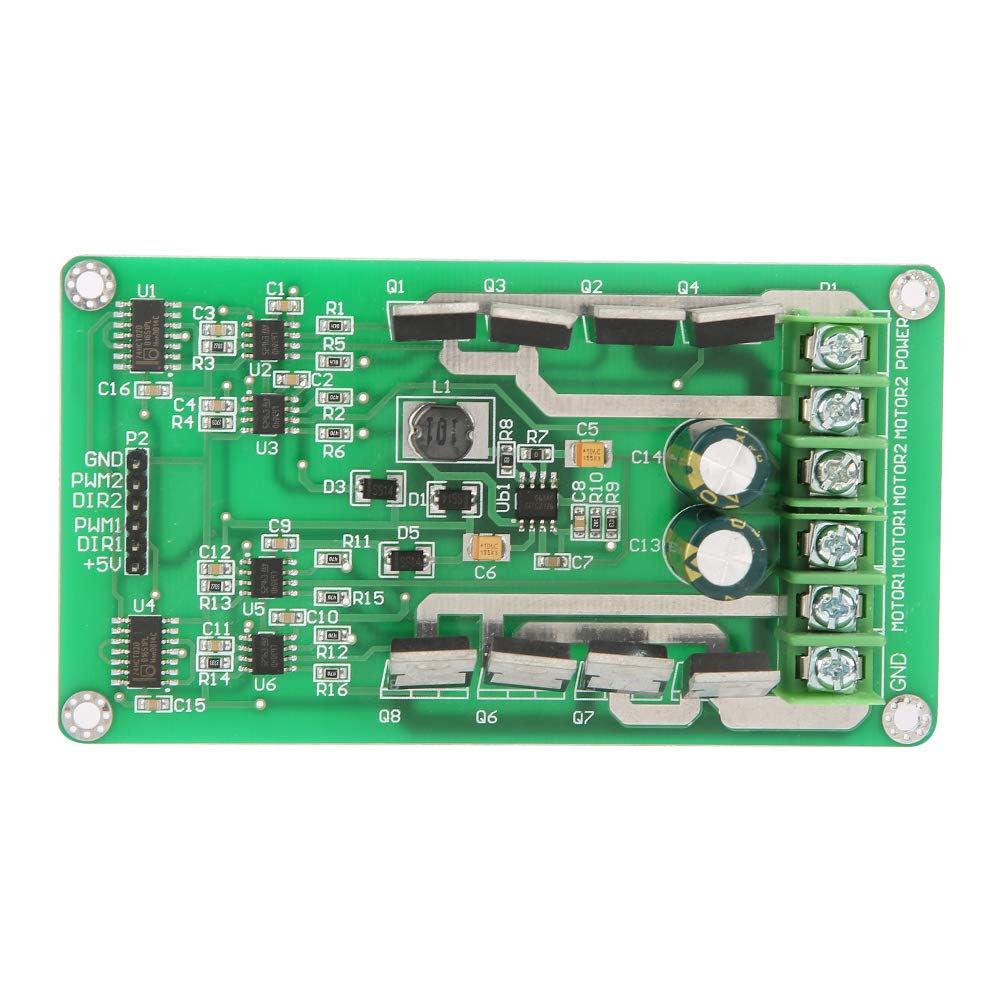

POWER : power supply +, GND: power supply-. Two motors: MOTOR1, MOTOR2
Package list:
1 x DC Motor Driver
ProductSiteLaunchDate : 2024-12-05T13:46:06.645Z
Size : One Size
SupplierDeclaredDgHzRegulation : not_applicable
TargetAudienceKeyword : Electronic components
TargetGender : unisex
UnitCount : 1
UnspscCode : 26111500
WarrantyDescription : Manufacturer warranty for 90 day
