Specification
Brand : SHOUMANUAL
BulletPoint1 : Replaces Part Number: BMR-400
BulletPoint2 : Rated Torque: 190N·m. Rated Speed: 135RPM. Shaft Diameter: 25mm/0.98in. Oil Port Diameter: G1/2
BulletPoint3 : Rated Flow: 55L/14.53gal/min. Rated Displacement: 400cc. Rated Power: 7.5kw. Rated Pressure: 8.5Mpa. Maximum Working Differential Pressure: 8.5Mpa
BulletPoint4 : Adopts precision-machined column stator rotor, featuring low starting pressure, forward and reverse rotation, adjustable speed, controllable torque, and smooth and powerful rotation.
BulletPoint5 : Used in packaging machines, forage harvesters, spreaders, sweepers, sandblasters, snowblowers, cutting machines for carrots, beets, onions, etc., leaf and branch scrapers, conveyor drives, chippers and shredders, forest winches and vehicle winches, orchard drills, and ground drills.
Color : Silver
ExternallyAssignedProductIdentifier : 9493821276647
ExternallyAssignedProductIdentifier1 : 0756804328221
ExternallyAssignedProductIdentifier2 : 756804328221
Horsepower : 7.5 kilowatts
IncludedComponents : Hydraulic Motor

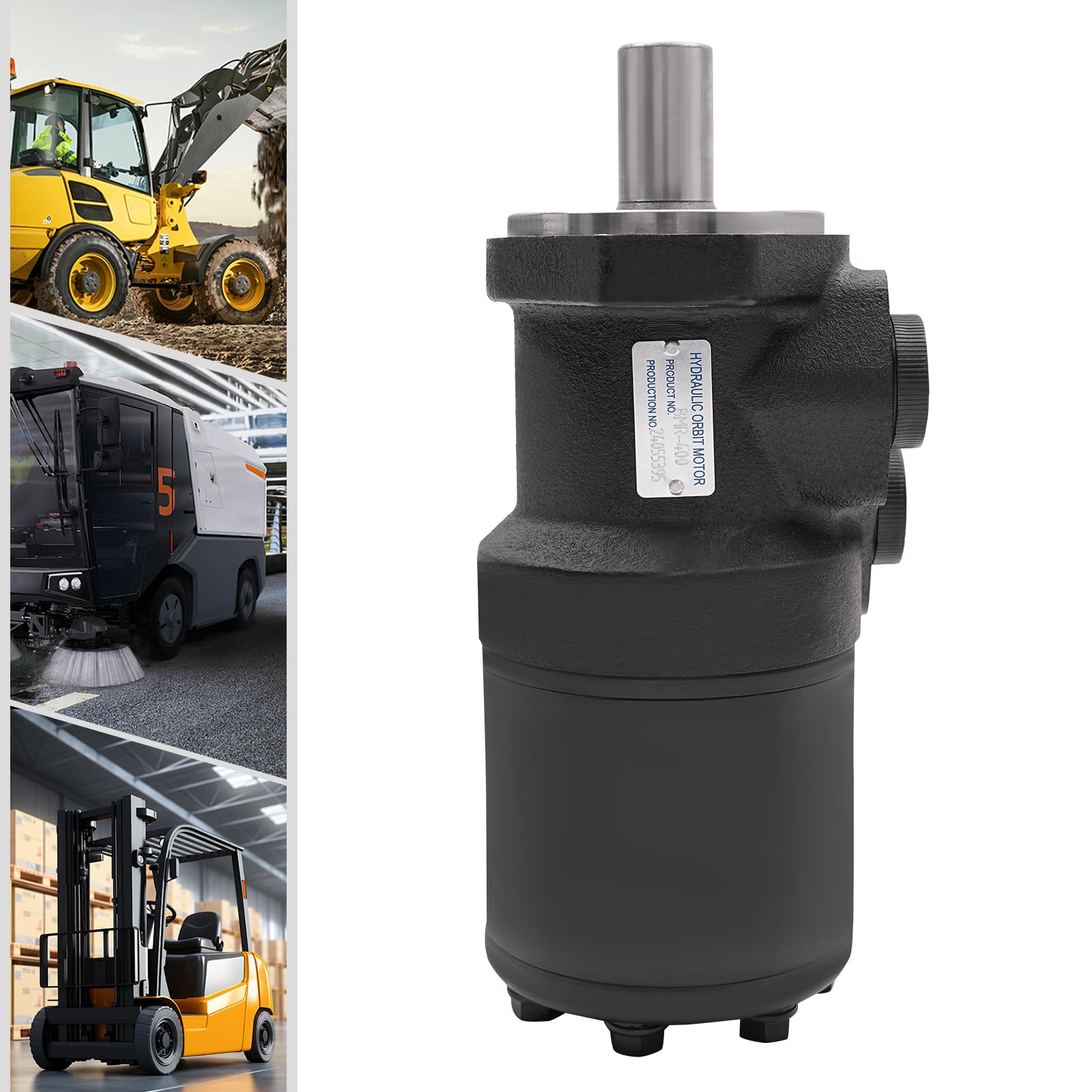

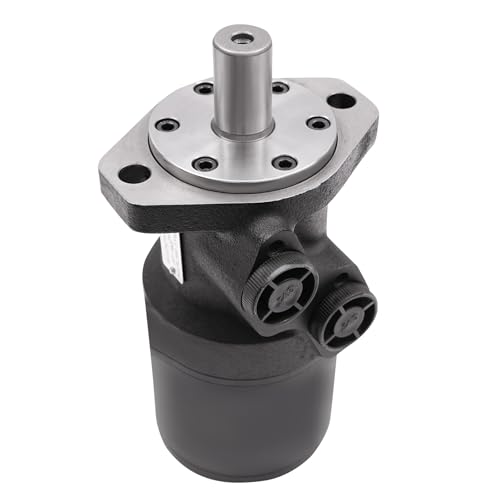

ItemName : 2-Bolt Hydraulic Motor Replacement, BMR-400, 25mm Shaft, G1/2 Oil Port
ItemPackageDimensions_Height : 31.8008 centimeters
ItemPackageDimensions_Length : 16.6878 centimeters
ItemPackageDimensions_Width : 17.6022 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : hydraulic-motors
Manufacturer : JNLASEER
Material : Copper
Material1 : Metal
Material2 : Iron
ModelName : VN1001MKITRF
ModelNumber : 101-1703-009, 1011703009, 101-1703
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : BMR-400
ProductDescription :

Specifications

Color: Black

Material: Cast Iron, Low Carbon Alloy Steel

OEM Part Number: BMR-400

Assembly Required: No

Process: Spray Paint, High-temperature Quenching, Carbonitriding, Cyaniding

Rated Flow: 55L/14.53gal/min

Rated Displacement: 400cc

Rated Power: 7.5kw

Rated Torque: 190N·m

Rated Speed: 135RPM

Rated Pressure: 8.5Mpa

Maximum Working Differential Pressure: 8.5Mpa

Shaft Diameter: 25mm/0.98in

Oil Port Diameter: G1/2

Product Size: 20.3*13cm/7.99*5.12in

Package Size: 26*15*13cm/10.24*5.9*5.12in

Gross Weight: 11kg/24.25lbs

Net Weight: 10.5kg/23.15lbs

Package Included

1 X Hydraulic Motor

Notes

1.The normal operating oil temperature of this product is 68-140℉, and the maximum system operating temperature is 194℉ (not more than 1 hour).

2.Filter filtration accuracy is 10-30 microns, and it is better to add a magnetic block at the bottom of the oil tank to stop metal chips from entering the system. The solid contamination level of working oil should not be higher than 19/16.

3.Please select the appropriate hydraulic oil according to the actual operation and ambient temperature. The oil viscosity at 104°F is 42-74mm²/s.

4.When used in series or parallel, the external drain must be used for pressure relief if the back pressure exceeds 10MPa (the rotating speed is lower than 200rpm). It is better to connect the external drain directly with the oil tank.

5.To ensure a long service life of the motor, it should be operated at 30% of the rated pressure for about 1 hour before adding load to the motor. Before adding load to the motor under any circumstances, ensure that the motor is filled with oil.

ProductSiteLaunchDate : 2024-07-17T06:08:07.379Z
Size : RS-755WC-8017
Speed : 200 rpm
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 26101200
Voltage : 230 volts
