Specification
Brand : FUZHUI
BulletPoint1 : High Performance Output - Delivers up to 1550W maximum performance and 4Nm maximum torsion, ensuring robust performance for electric scooters and high-demand applications.
BulletPoint2 : Enhanced Heat Dissipation - Features multi-strand windings and curved components that enhance heat dissipation and reduce skin effect, maintaining efficiency and sturdiness.
BulletPoint3 : Stable and Quiet Functioning - Equipped with tightly fixed Hall plates and long, heat-tolerant Hall wires, providing stable motor performance and excellent noise reduction.
BulletPoint4 : Versatile Compatibility - Supports both sensor and sensorless modes, compatible with 3S-8S lithium batteries (11.1V-29.6V), suitable for a wide range of electric vehicles and DIY projects.
BulletPoint5 : Sturdy Construction - Made with Japanese steel, red copper, and high-strand silicone cable, ensuring enduring quality and tolerance to high temperatures and abrasion.
IncludedComponents : No

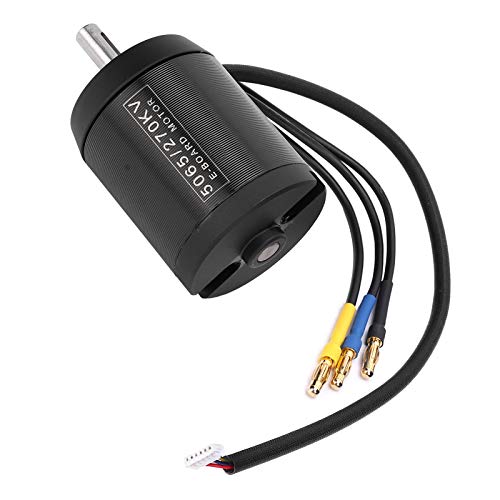

ItemName : 5065 Inductive Sensored Motor - 11.1V - 29.6V High Performance Brushless Motor for Electric Scooters, DIY Projects, and High - Performance Applications
ItemPackageDimensions_Height : 7 centimeters
ItemPackageDimensions_Length : 13 centimeters
ItemPackageDimensions_Width : 8 centimeters
ItemTypeKeyword : sports-scooter-motors
Manufacturer : FUZHUI
ModelName : FUZHUIp5qetdbkov
ModelNumber : FUZHUIp5qetdbkov
NumberOfItems : 1
PartNumber : FUZHUIp5qetdbkov
ProductDescription :

Condition: Completely New
Item Type: Inductive motor
Material: Silicone Wire + Japanese Steel + Red Copper
Color: As Pictures Shown
Weight: Approx. 506g/17.8oz
Model: 5065

Maximum Performance: 1550W
Maximum Current: 80 Amps
No-load Current: 1A 10V
Maximum Voltage: 41.5V
Lithium Battery:3S-8S)11.1V-29.6V)
Maximum Torsion: 4Nm
Motor Tolerance: 64mΩ
Motor Length: 65mm/2.6inch
Motor Diameter: 50mm/2inch
Shaft: Diameter 8mm/0.3inch, Length 20mm/0.8inch,
Keyway Size: 3x3x15mm/0.1x0.1x0.6inch

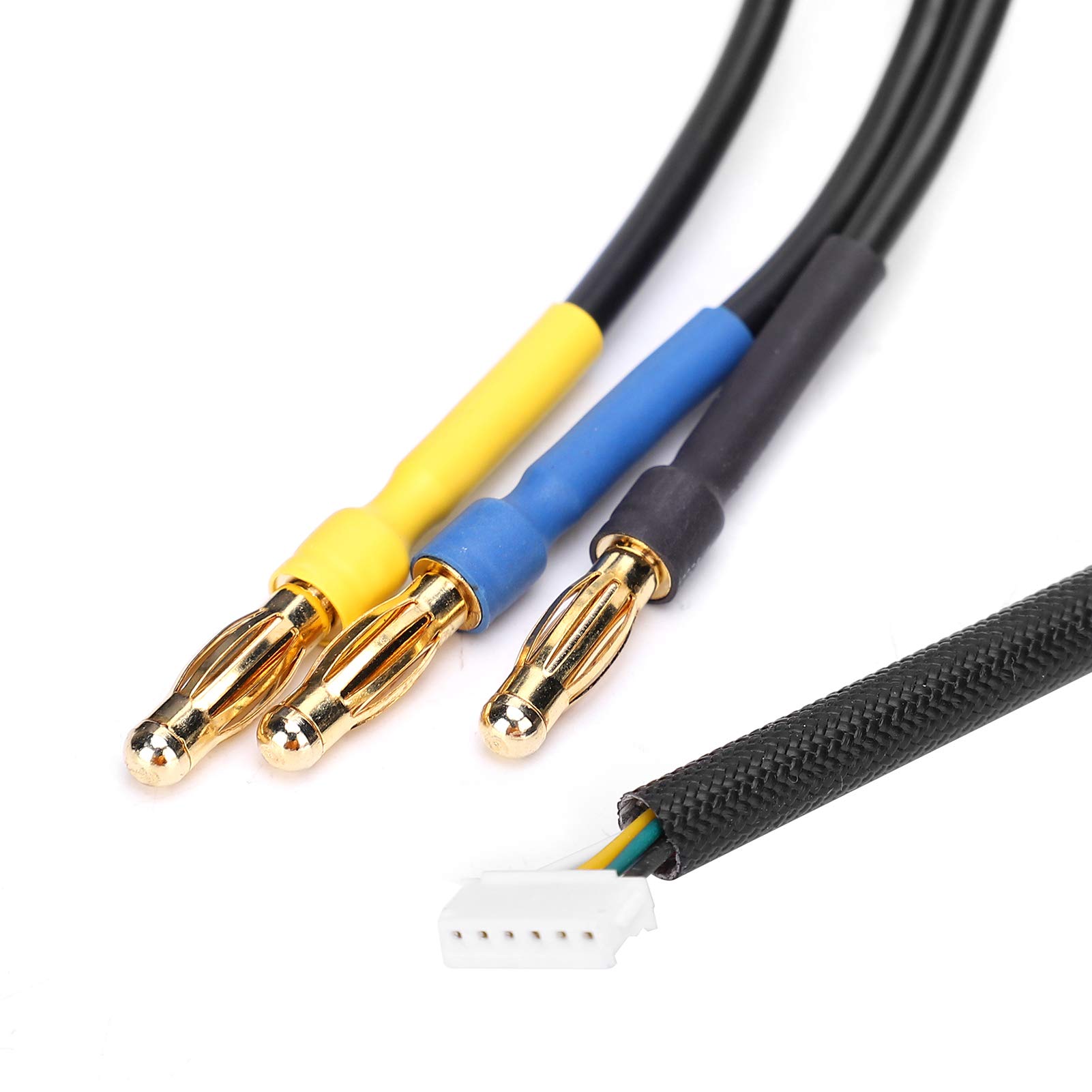

Motor Wire: 160mm/6.3inch Silicone 16AWG Wire with 4.0mm/0.2inch Gold Male Connector
Wire Configuration:
Blue (Thermal Shrinkable Film) = A
Black (Thermal Shrinkable Film) = B
Yellow (Thermal Shrinkable Film) = C
Brushless Motor
Number of Poles: 14
Sensor Line: Standard RC Sensor Line JST-ZH 6-pin 1.5mm Pitch
Internal for PCB with 120 Degree Hall Effect Sensor.
The Motor Can be Used with or Without Sensors. Sensorless Functioning is the Most Common.
VESC Sensor Cable Required for VESC.
Wire Configuration:
Red = 5V
Blue = A
Yellow = C
Green = B
Black = GND
What are the Characteristics of Our Products:
Stator: Laminated Japanese Steel
12awg High-strand Silicone Cable with 4.0mm/0.2inch Gold Male Connector.
Support Both Sensor and Sensorless Mode.
What to Include
5065 270KV EPOWER Motor (suitable for 50mm/2inch Motor Mount)
If You Choose a Wheeled Motor, It Will be Randomly Divided into Black One or White One
Reference Information:
The Screws Used in the Motor are M4 Bolts. It is Recommended to Use Our Motor Mount and M4 Hex Socket Bolts.
Screws for Mounting the Motor are Not Included with the Motor.
The Key is Not Included in the Transport Motor

Package List：
1 x Motor4 x Accessory

ProductSiteLaunchDate : 2025-01-10T09:53:22.083Z
UnspscCode : 26101200
