Specification
AutomotiveFitType : vehicle_specific_fit
Brand : GMSLuu
BulletPoint : 【Indicator light】: Red indicates charging, green indicates full charge or disconnection.
BulletPoint1 : 【HIGH QUALITY】Electric Brushed DC Motor, Aluminum Body, Full Copper Coil, Heat Resistant, Naturally Air Cooled, Low Noise High Quality More Long Life.
BulletPoint2 : 【THROTTLE GRIP】Universal 12v 24v 36v 48v Black Electric Scooter Bike Throttle Grip. Good grip, better and comfortable handling. It allows setting direction of rotation that accomplishes reversing the motor's direction.
BulletPoint3 : 【MOPTOR TYPE】: Brushed DC High Speed Motor, Voltage 36V, Power 500W Max, Current 42A, Rated Speed 2800rpm/min.With T8F 11 teeth Sprocket Chainwheel.
BulletPoint4 : 【PROTECTION】High quality circuit board ,protect the controller board from damage as well as dissipate heat .Providing steady and sensitive control of speed, working well on the right side of handlebar.
BulletPoint5 : 【APPLICATION】Suitable for electric bicycles, electric tricycles, electric scooters,motorized bicycle, pocket bikes .Wide working voltage,applicable to a variety of DC motors, fans and other applications, can adjust the motor speed very well.
BulletPoint6 : 【100% Warranty】-- ? We offer 180 days return and exchange, We strive to provide a better customer experience. In terms of any problem of this 8-inch DIY electric scooter conversion set, you can send emails as soon.
CompatibleWithVehicleType : Scooter
CustomerPackageType : Standard Packaging
ExteriorFinish : Alloy Steel
ExternallyAssignedProductIdentifier : 9466458359366
ExternallyAssignedProductIdentifier1 : 0792105829517
ExternallyAssignedProductIdentifier2 : 792105829517
HandlebarType : Fixed
Horsepower : 800 watts
IncludedComponents : Lock
IsAssemblyRequired : 1

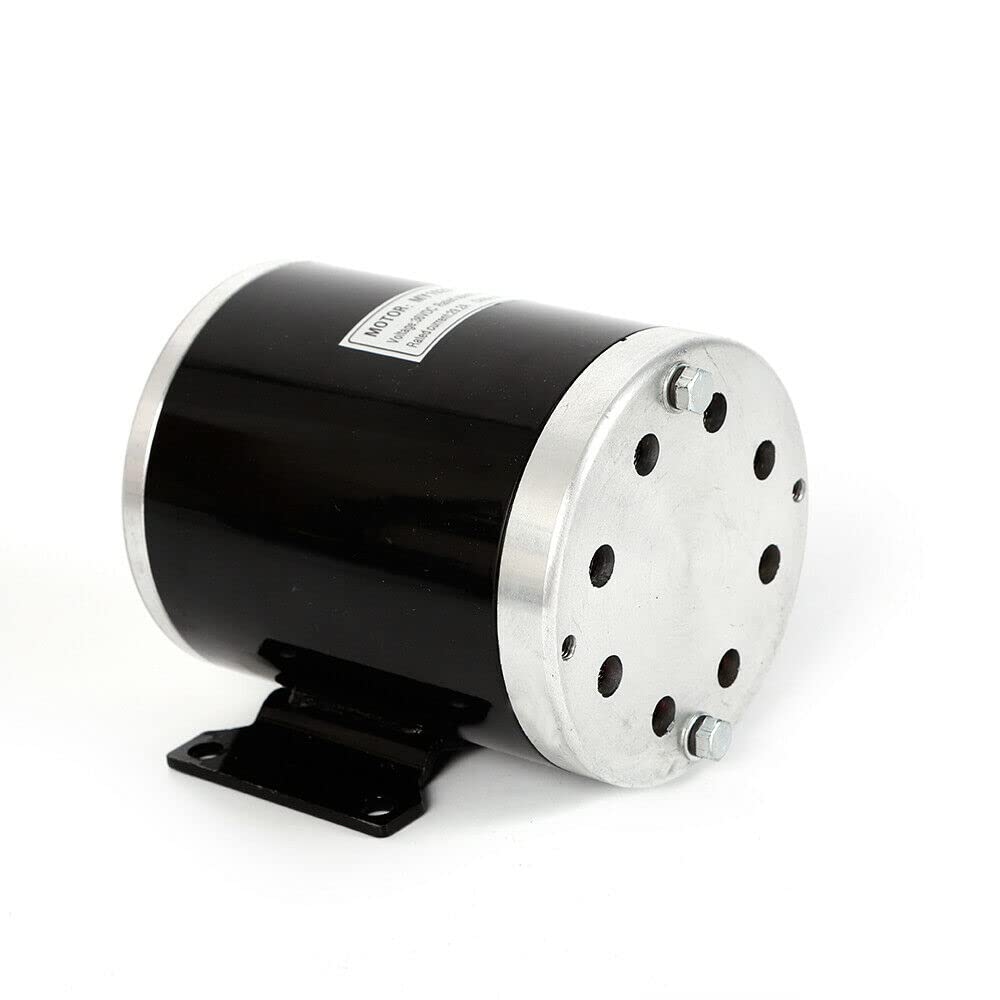

ItemName : Electric Brushless Motor Kit Speed Controller Throttle 36V Brushed Motor Kit 800W Motor Brushed Speed Controller with Locking Throttle Twist Grip for Go Kart E-Scooter Bikes
ItemPackageDimensions_Height : 10.6 inches
ItemPackageDimensions_Length : 7.5 inches
ItemPackageDimensions_Width : 6.3 inches
ItemPackageQuantity : 1
ItemTypeKeyword : sports-scooter-motors
Manufacturer : HUMuu
Material : Aluminum
Material1 : Rubber
Material2 : Aluminum
ModelName : CUEA Model Unknown
ModelNumber : CUEAoa1em5f9d2
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfWheels : 1
PartNumber : CUEAoa1em5f9d2
ProductDescription :

Description:

motor sprocket 11 teeth

Diameter :10.5cm

Bracket foot width:12cm

Motor length :13.5cm

Fit:T8F/25H Chain

Rating power ?800W 36V

Rating speed rate/rpm 2800rpm

Rating torque /N.m : 2.8 N.m

Efficiency : ≥78

Speed Controller:

Works on 36V, 800W scooters and electric bikes

Type: brush speed controller

Voltage: 36V

Wattage: 800W

Casing material: aluminium

Colour: silver

Dimensions: 105 x 69 x 32mm

Plug :

1.Red & Black (large cable) : Battery connections

2.Yellow & Blue : Motor connections

3.Red & Blue : Key Switch(power lock)

(If there is no power door locks,red connection to blue)

4.Yellow & black : brake

5.Red & Yellow: Brake light

6.Red&Black(small cable) : indicator light

7.Red, Black & Blue: Speed Regulator 1-4 V(Throttle )

(Red:+5v,Black: - ,Blue :Signal Wire)

8.Red & Black (small cable): Charger

Throttle:

Universal 12v 24v 36v 48v Black Electric Scooter Bike Throttle Grip

Beautiful outlook and modern design.

Throttle Control Set Three Pin

Suit for Electric Throttle,Motorcycle,Scooter.

Specification:

Style: striae & Round

Operating voltage: 5V

Adjustment range: Minimum ?1.0V; highest ?4.0V

Function: high, medium and low grades governor

ProductSiteLaunchDate : 2021-11-01T09:27:05.280Z
RecommendedUsesForProduct : electric scooter conversion, DIY electric scooter building
Size : 10
Size1 : Large
Size2 : Small
Speed : 2800 rpm
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredDgHzRegulation1 : not_applicable
SupplierDeclaredDgHzRegulation2 : not_applicable
SupplierDeclaredDgHzRegulation3 : not_applicable
SupplierDeclaredDgHzRegulation4 : not_applicable
SupplierDeclaredDgHzRegulation5 : not_applicable
SuspensionType : Rigid
UnitCount : 1
UnspscCode : 26111500
Voltage : 36 volts
WarrantyDescription : \
WarrantyType : Limited
WebsiteShippingWeight : 4.455 kilograms
