Specification
Brand : Jiabailie

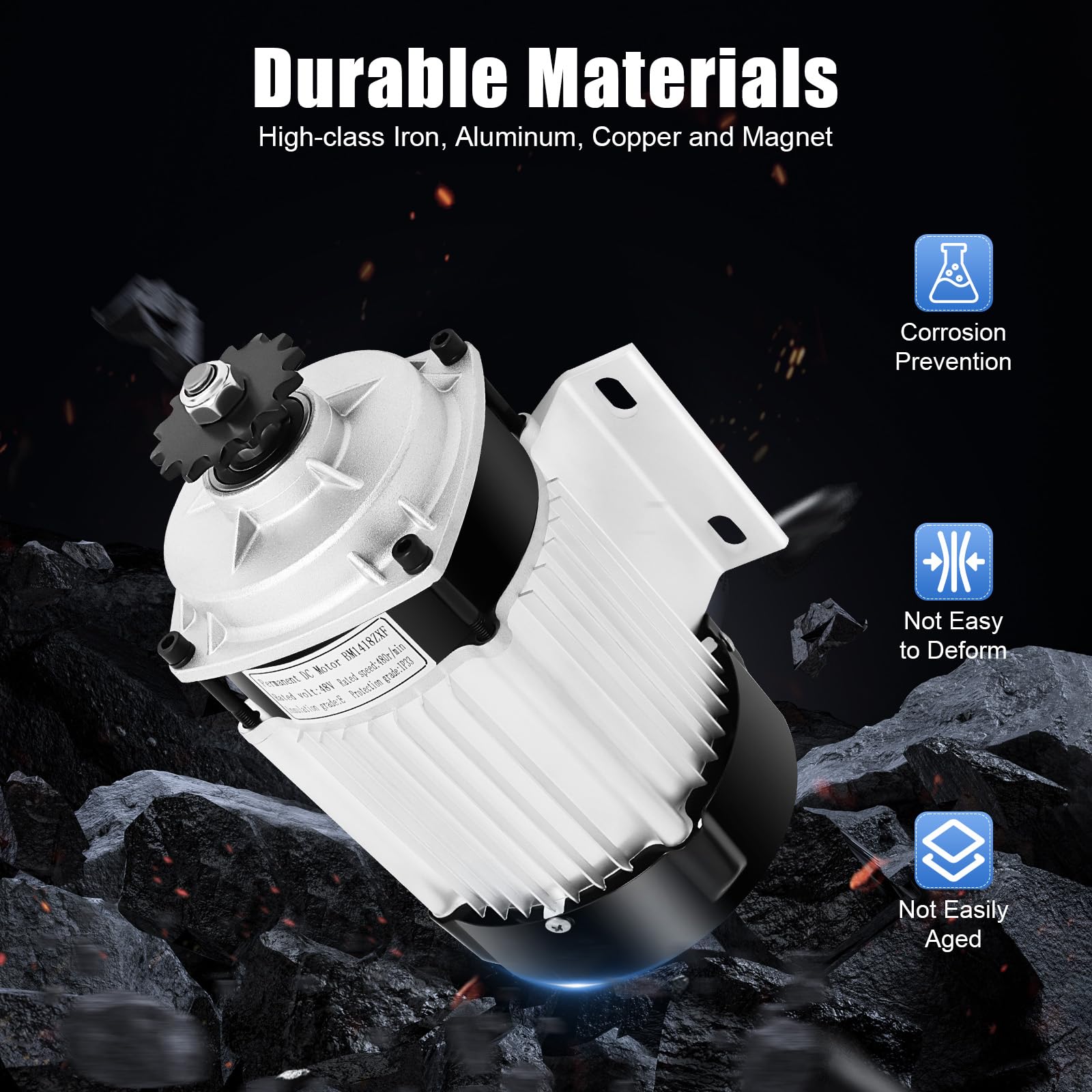

BulletPoint1 : 【BUILD TO LAST】: Selected copper, iron, aluminum, and magnets have excellent wear resistance, impact resistance after die-casting, stretching, and integrated molding processes, are not easily cracked or aged, and can maintain good performance for a long time.
BulletPoint2 : 【HIGH EFFICIENCY】: The 750W motor has an efficiency of over 82%, with a speed of approximately 13.67mi/h when equipped with 26-inch wheels (not included), making it ideal for commuting or short-distance cycling.
BulletPoint3 : 【SAFE USE】: The controller's limited current protection device can promptly cut off the power supply in case of overcurrent, extending the product's lifespan while ensuring your safety.
BulletPoint4 : 【EXCELLENT LOAD CAPACITY】: The high-quality motor ensures a load capacity of up to 661.39 pounds for this product, which can easily drive most tricycles and transport a certain weight of goods.
BulletPoint5 : 【EXCELLENT PERFORMANCE】: The torque of 15.36N. m gives this product strong climbing ability, which can adapt to various terrains such as gravel roads and highways, making your travel free.
Color : Silver
ExternallyAssignedProductIdentifier1 : 0763508840119
ExternallyAssignedProductIdentifier2 : 763508840119
IncludedComponents : 1 * 750W Brushless Motor 1 * Motor Controller 1 * Non-Toothed One-Way Clutch
ItemDisplayWeight : 0.22 pounds

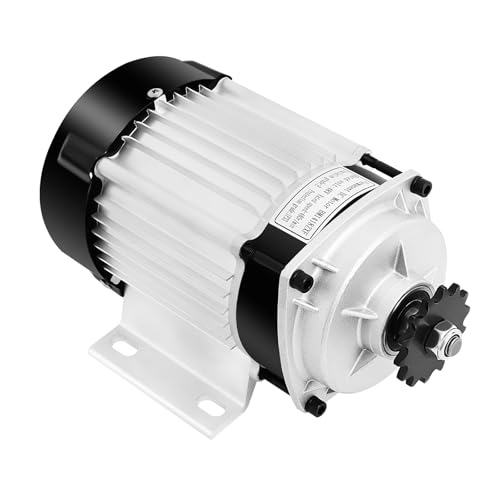

ItemName : Jiabailie Electric Brushless Motor Kit with LED Display,48V Electric Motor w/Controller,Electric Tricycle Conversion Set,Single Phase Elec-tric Bike Conversion Kits 750W
ItemPackageDimensions_Height : 1.38 inches
ItemPackageDimensions_Length : 2.17 inches
ItemPackageDimensions_Width : 1.38 inches
ItemTypeKeyword : sports-scooter-motors
Manufacturer : Jiabailie
Material : metal
ModelName : Electric Brushless Motor Kit
ModelNumber : Jiabailie
NumberOfItems : 1
PartNumber : Jiabailie
ProductDescription : Description
Looking to take your tricycle to the next level? This electric tricycle modification kit is an ideal choice! It features an efficient brushless motor with robust power, high torque, and impressive speed. With added safety features like the current limiting protection device and LED light, your cycling experience will be safer and more enjoyable. Don't miss out on the opportunity to add this modern power to your tricycle!

Details
LED Headlight: The bright light source allows you to drive safely at night or in low-visibility environments.
Junction Box: It can protect wire connectors, improve safety, and extend product lifespan.

Application
This product can be used to modify human-powered tricycles, foldable tricycles, commuting tricycles, small freight tricycles, etc.

Specification
Material: Copper, Iron, Aluminum, Magnet
Process: Die Casting, Stretching, Integrated Molding
Color: Silver+Black
Style: Modern
Motor Type: Brushless DC Pure Copper Motor
Battery Type: 1* DC 48V/2* 24V/4* 12V>20Ah Batteries (Not Included)
Starting Method: Electric Start
Light Type: LED
Light Color: White
Voltage: 48V
Power: 750W
Motor Efficiency: ≥ 80%
Rated Rotation Speed: 480RPM
Max. Speed: Approx. 22km/13.67mi/h (66.04cm/26in Wheels) (Not Included)
Current Limiting Protection Value: 30A
Torque: 15.36N.m
Max. Load Capacity: 300kg/661.39lbs
Chain Wheel Installation Hole Spacing: 5.7cm/2.24in, 8cm/3.14in
Chain Wheel Aperture: 6.4cm/2.51in, 0.9cm/0.35in
Chain Wheel Diameter: 16cm/6.3in
Chain Wheel Thickness: 5mm/0.19in
Moter Size(D*H): 14*26.9cm/5.5*10.6in
Package Size: 30*25*25cm/11.81*9.84*9.84in
Gross Weight: 8.8kg/19.4lbs
Net Weight: 8.02kg/17.68lbs

Package Included
1 * 750W Brushless Motor
1 * Motor Controller
1 * # 420 Chain
1 * 38-Tooth Chain Wheel
1 * Non-Toothed One-Way Clutch
1 * One-Way Clutch Adapter
1 * Throttle
2 * Keys
1 * LED Headlight
1 * Light Switch
1 * Junction Box
2 * Brake Levers
Other Accessories for Assembly

Notes
1.Please carefully check the production size before purchasing.
2.Modifying requires a certain level of hands-on ability. If you are unable to modify it, you can take it to a repair shop for the owner to do so.
3.The speed is related to factors such as wheel size, road conditions, battery condition, load, and wind speed.
4.This product is only suitable for three-wheeled bicycles and cannot be used for two-wheeled or multi-wheeled bicycles. Please note that this product does not include a battery and battery charger. Please bring your own batteries.
5.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.

ProductSiteLaunchDate : 2025-03-22T02:38:45.130Z
Size : 3X3X5cm
Style : Modern
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 26101200
