Specification
AgeRangeDescription : adult
Brand : Mechanivis
BulletPoint1 : High torque output: amplified torque through gear reduction, suitable for steep slopes, mountains and other complex terrain
BulletPoint2 : Modularized design: motor, controller and sensor are highly integrated, and the parts can be replaced separately during maintenance.
BulletPoint3 : Compatible with a wide range of vehicles: can match vehicles with different wheel diameters and tire types.
BulletPoint4 : High stability: The motor is located in the middle of the vehicle to improve driving stability, especially suitable for high-speed riding or off-road scenarios.
BulletPoint5 : Wide applicability：It is suitable for DIY electric scooters, electric bikes, E-Motorcycle Moped, etc.
Color : Sprocket Type
ExternallyAssignedProductIdentifier : 7619655615038
ItemName : Mid Drive Motor, QS165 5KW PMSM Mid Drive Motor Hall Type with EM260S Controller DKD Speedometer and T08 Throttle(Sprocket Type)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 1 centimeters
ItemPackageDimensions_Width : 1 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : sports-scooter-motors
Manufacturer : Mechanivis
ModelName : Mechanivis
ModelNumber : Mechanivis
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : Mechanivis

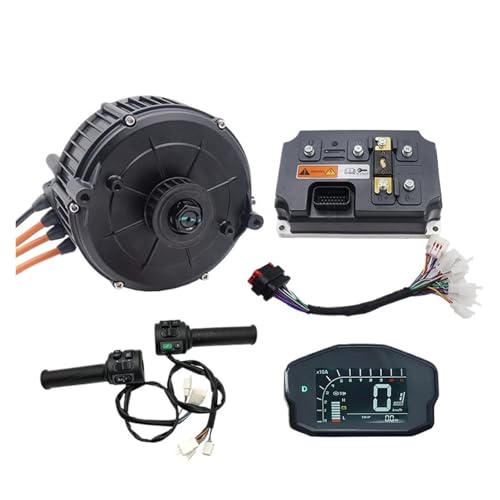

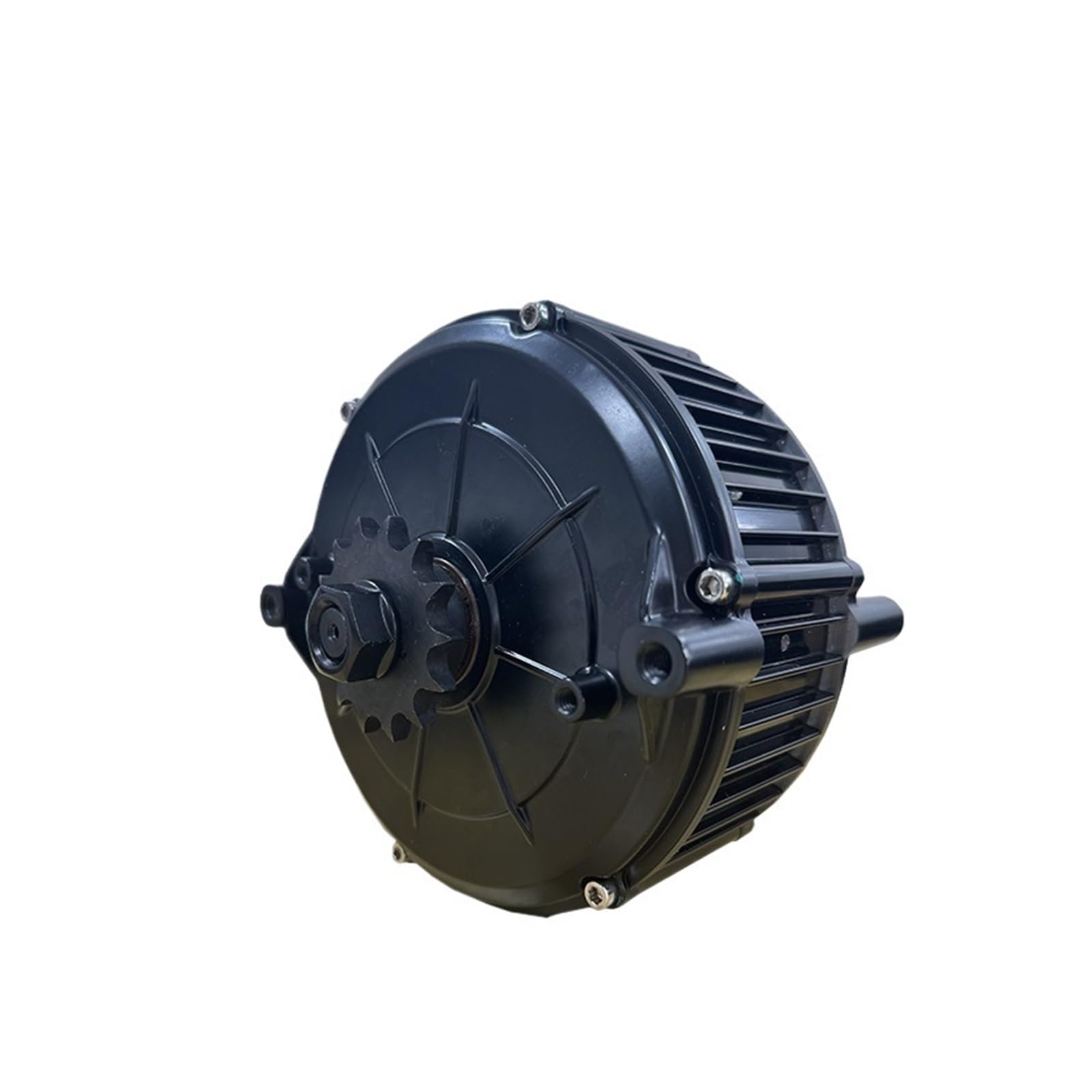

ProductDescription : 1 pc x QS165 5KW Mid-drive motor (hall type)
1 pc x EM260S Controller with USB cable
1 pc x DKD Display
1 set x T08 Throttle

Rated Power: 5000W
Rated Voltage: 60V
Speed: 5000-6000RPM(no load)
Magnet Height: 35H, 5 pole pairs
Max Torque: 50N.m
Efficiency: 93%
Peak Current Limit: 180A
Peak Phase Current: 500A
Working Temperature: 60 peak
Single Hall Set with waterproof connector
Waterproof Grade: IP67
Cooling: Air cooling
Phase wire: 16mm²

1. Available Battery Voltage: 48V-72V
2. Rated DC current: 250A
3. Boost DC current: 500A
4. Peak Phase current: 690A
5. Max. Power: 36KW
6. Mosfets Detail: 36 FET
7. Matched Motor Rated Power: 6KW-8KW
8. Max. Efficiency: 92%
9. Degree of Waterproof: IP67
10. Flux Weaking Ratio: 200%
12. Working Communication: Hall Sensor
13. Net weight: 2200g
14. Size: 212mm * 134mm * 73mm
15. Support Programmable by PC
