Specification
Brand : Audison
BulletPoint1 : Remote IN: 7 ÷ 15 VDC - 1mA
BulletPoint2 : Remote OUT: 12 VDC - 50mA
BulletPoint3 : Fuse (Strip type): 100 A
BulletPoint4 : Remote SUB volume adj.: (-50 ÷ 6) dB
BulletPoint5 : Speakers IN Turn-on (ART): Selectable
ExternallyAssignedProductIdentifier : 8018823107815
ExternallyAssignedProductIdentifier1 : 707773624623
ExternallyAssignedProductIdentifier2 : 0707773624623
ExternallyAssignedProductIdentifier3 : 00707773624623
IncludedComponents : ACDelco - Radio Speaker A (A) (20869451)

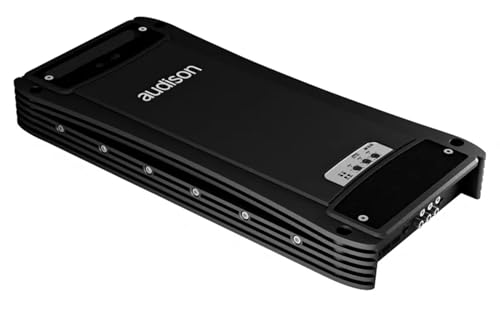

ItemName : Audison AV 5.1k Voce Series 5-Channel Amplifier, 75W + 140W + 600W 4-Ohms
ItemPackageDimensions_Height : 12 centimeters
ItemPackageDimensions_Length : 55.2 centimeters
ItemPackageDimensions_Width : 28.2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : vehicle-multi-channel-amplifiers
Language : english
Manufacturer : Audison
MaximumSupplyVoltage : 15 volts_of_direct_current
MinimumSupplyVoltage : 11 volts_of_direct_current
ModelName : AV-5.1k
ModelNumber : AV 5.1 k
MountingType : Surface Mount
NumberOfChannels : 5
NumberOfItems : 1
OutputPower : 1650 watts
PackageTypeName : Cardboard Box
PartNumber : 66735310
ProductDescription : AV 5.1k - 5 CHANNEL AMPLIFIER 2x75W+2x250W+1x1000W

AV 5.1k, 1650 W (RMS) max, five-channels: with its hybrid design, it is the specialist amplifier for front + rear + subwoofer or multi-amplified front + subwoofer systems. Its high-quality AB Class output stage provides two channels with 250 W (RMS), combined with another pair of A class pure audio channels rated at 75 W (RMS), perfect for active two-way front speaker systems. The D Class mono section provides 1000 W (RMS) for an efficiency and powerful subwoofer output. AMP (Amplifier Management Processor) constantly checks the operating status system and communicates with the user through 4 different coloured LEDs, located on the top panel; ART (Automatic Remote Turn On-Off) allows automatic turn-on/off when a remote signal isn’t available from the source.

Amplifier Stage -
Distortion - THD (1k Hz @ 4Ω ) A, B Ch: 0.05 %
Distortion - THD (100 Hz @ 4Ω), C (sub) Ch: 0.3 %
Bandwidth (-3 dB) A, B Ch: 4 ÷ 60k Hz
Bandwidth (-3 dB) C (sub) Ch: 7 ÷ 350 Hz
S/N ratio (A weighted @ 1V) A, B Ch: 100 dB
S/N ratio (A weighted @ 1V) C (sub) Ch: 87 dB
Damping factor (1k Hz @ 4Ω) A, B Ch: 100
Damping factor (100 Hz @ 4Ω) C (sub) Ch: 80
Input sensitivity: 0.3 ÷ 5 V RMS
Input impedance: 15k Ω
Speaker-In sensitivity: 1.4 ÷ 24 V RMS
Speaker-In impedance: 5k Ω
Minimum load impedance A / B / C Ch: 4Ω / 2Ω / 2Ω
Power Supply -
Power supply voltage: 11 ÷ 15 VDC
Idling current: 3 A
Idling current when off: 0.02 mA
Consumption @ 14.4 VDC (Max Musical Power): 110 A

ProductSiteLaunchDate : 2013-05-16T12:03:22.269Z
SpecificationMet : FCC
SupplierDeclaredDgHzRegulation : not_applicable
SupplyCurrent : 110 amps
UnitCount : 1
UnspscCode : 52161547
Voltage : 11 volts_of_direct_current
