Specification
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : Audison
BulletPoint1 : AMPLIFIER TECH DATA Channels 6 Class D-Class Efficiency >87% Hi Level Input Yes Low Level Input Yes Digital Input No Power supply voltage / fuse 11 ÷ 17 VDC Operating power supply voltage 11 ÷ 17 VDC / 2 x 30A Idling current 2.2 A Idling current when off 0.04 mA Consumption @ 14.4 VDC, 2Ω, Max Musical Power 54 A Remote OUT 4 ÷ 15 VDC (150 mA) Remote IN 4 ÷ 15 VDC (1 mA) ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable) 1.5 ÷ 7 VDC
BulletPoint2 : AMPLIFIER STAGE Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power 0.05 % Bandwidth A 10Hz ÷ 42 kHz S/N ratio A 102 dBA Damping factor A A Ch/B Ch 100 C Ch 400 Input sensitivity Pre-In 0.32 ÷ 8 VRMS Pre In Impedance >10 kOhm Input sensitivity Speaker-In 1.6 ÷ 40 VRMS Input impedance Speaker-In 3Ohm ÷ 100kOhm (it depends by the Polyfuse specifications) Total Power RMS 1120 W Minimum load impedance Ch 1-4: 2Ω Ch 5-6: 1Ω 1+2/3+4 Bridged: 4Ω 5+6 Bridged: 2Ω
BulletPoint3 : Output Power (RMS) @14.4 VDC, 1% THD 6Ch mode @4Ω: 85 x 4 + 110 x 2 @2Ω: 140 x 4 + 185 x 2 Ch1-4 @2Ω, Ch5-6 @1Ω: 140 x 4 + 300 x 2 5Ch mode @4Ω: 85 x 4 + 370 x 1 (Ch5/6 bridged) @2Ω: 130 x 4 + 600 x 1 (Ch5/6 bridged) 4Ch mode @4Ω: 280 x 2 (bridged) + 110 x 2 @2Ω: 130 x 2 + 260 x 1 + 600 x 1 3Ch mode @4Ω: 280 x 2 + 370 x 1 (Ch5/6 bridged) 280 x 2 (Ch1-4 @4Ω) + 600 x 1 (Ch5/6 bridged @2Ω) Adjustable Crossover Yes
BulletPoint4 : CEA SPECIFICATIONS Output power @ 4Ω, 1% THD+N, 14.4 V 75 W x 4 Ch + 85 W x 2 Ch SN ratio (ref. 1W output) A Ch, B Ch: 84 dBA C Ch: 84 dBA
BulletPoint5 : INPUTS Input Type Pre-In / Speaker-In Filter Pass A Full Hi-pass: 50 ÷ 500 Hz @ 12 dB/Oct. Filter Pass B Full Hi-pass: 50 ÷ 500 Hz @ 12 dB/Oct Band-pass: 50 ÷ 700 Hz (Hi) / 50 ÷ 5 kHz (Lo) @ 12 dB/Oct Filter Pass C Full Hi-pass: 50 ÷ 700 Hz @ 12 dB/Oct Lo-pass: 50 ÷ 700 Hz @ 12 dB/Oct Inputs/Outputs Sub CH - Inputs/Outputs Phase No Inputs/Outputs Bass Boost No Inputs/Outputs Subsonic No Remote Sub Volume (-20 ÷ 6) dB
BulletPoint6 : OTHER Weight 2.52 kg

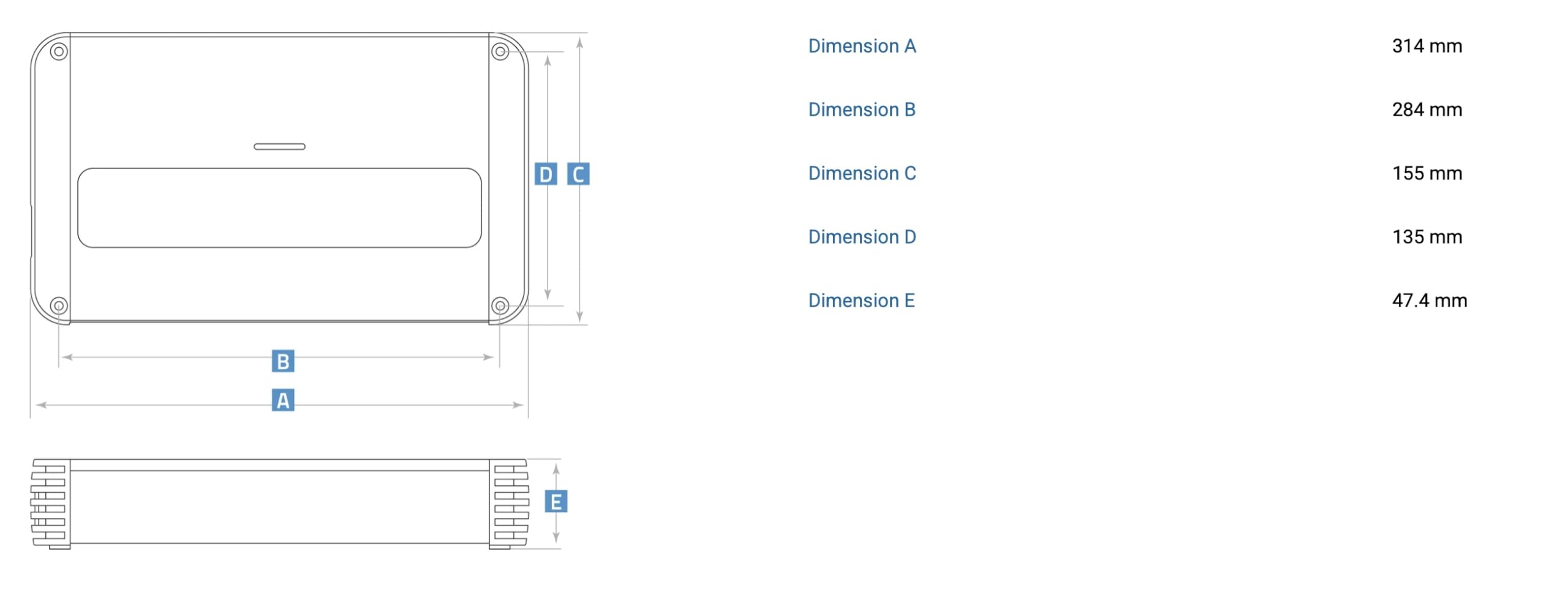

BulletPoint7 : DIMENSIONS Dimension A 314 mm Dimension B 284 mm Dimension C 155 mm Dimension D 135 mm Dimension E 47.4 mm
Color : black
CompatibleDevices : Amplifier
ExternallyAssignedProductIdentifier : 8018823140454
ExternallyAssignedProductIdentifier1 : 657768787393
ExternallyAssignedProductIdentifier2 : 0657768787393
Hazmat1 : UN3480
IncludedComponents : (1) 2 Channel 320 Watts RMS Class D Amplifier
ItemName : Audison SR6.600 6-Channel 1120W RMS Class D Power Amplifer
ItemPackageDimensions_Height : 38.8 centimeters
ItemPackageDimensions_Length : 9.4 centimeters
ItemPackageDimensions_Width : 20 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : vehicle-multi-channel-amplifiers
Manufacturer : Audison
Material : Aluminum Alloy
MaximumSupplyVoltage : 17 volts_of_direct_current
MinimumSupplyVoltage : 12 volts
ModelName : SR6.600
ModelNumber : sr6.600
MountingType : Surface Mount
NumberOfChannels : 6
NumberOfItems : 1
NumberOfLithiumIonCells : 2
OperatingTemperature : -40 degrees_fahrenheit
OutputPower : 1120 watts
PartNumber : SR6.600
ProductDescription : SR 6.600 Amplifier | 1120 W total power | 140 W x 4 + 185 x 2 @2ohm | D-Class FEATURES: High-current capability delivers high power into the most difficult loads (1Ω Stereo, 2Ω Bridged, for 5/6) Staggered power optimized for a 3-way active front with higher power for woofers, or 600W of bridged power for a sub 5 ch output operation mode to create a five-channel system, with 2Ω subwoofer Flexible crossover filter networks deliver Active 3-way, Front/Rear/Sub, or six channels of high-passed power ADT (Audison D-Class) Technology 2Ω stable output providing Hi-Res certified audio performance with superior efficiency in a compact size. Extruded aluminum compact design with a fanless convection cooling system Built-in USS (Universal Speakers Simulator) Balanced high-noise rejection inputs for Speaker-In (for OEM head units) and RCA-In (for Aftermarket head units). ART (Automatic Remote Turn-On/Off) automatically turns on/off the amplifier when the OEM head-unit turns on/off (can be enabled/disabled, with Speaker-In inputs) Accepts up to 40-volt input signal (Speaker-In) Bass Boost(50 Hz) adjustable up to 12 dB, to increase the subwoofer punch Lo-Pass and Hi-Pass 12 dB adjustable (50 Hz to 5000 Hz) filters, providing the ability to build a 3-way system, a front 2-way + rear system, or a front 2-way + one powerful subwoofer (2Ω) Optional VCR-S2/ARC 01 Remote Volume Control provides the ability to adjust the OUT 5/6 volume level from the dashboard
ProductSiteLaunchDate : 2024-03-28T00:53:29.365Z
Reusability : Rechargeable
SafetyDataSheetUrl : http://www.cameronsino.com/quality.aspx
SpecificationMet : Hi-res
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredDgHzRegulation1 : transportation
SupplierDeclaredDgHzRegulation2 : storage
SupplierDeclaredDgHzRegulation3 : other
SupplyCurrent : 2.2 amps
UnitCount : 1
UnspscCode : 52161547
Voltage : 17 volts_of_direct_current
