Specification
Brand : Diamond Audio
BulletPoint1 : Ultra-compact, high density aluminum alloy chassis provides superior thermal stability | Four layer, glass epoxy circuit board for enhanced performance and reliability | Full Range Class D amplifier technology | Balanced differential inputs for superior noise rejection | Input sensitivity from 200mV to 10V accepts line (RCA) and Speaker level input | Selectable auto-turn-on modes: Signal Sensing (VOX), 12V Remote (REM) and DC offset (DC)
BulletPoint2 : Fully variable, 12dB per octave, electronic crossover | Variable 18dB per octave sub-sonic filter | Adjustable Bass EQ (45Hz: 0dB to +12dB) | Wired Remote Level Control included | Illuminated logo
BulletPoint3 : RMS Power Rating - RMS Power (2Ω): 250W X 2 | RMS Power (4Ω): 150W X 2 | Bridged (mono 1Ω): N/A | Bridged (mono 2Ω): N/A | Bridged (mono 4Ω): 500W | Topology: Full Range Class D | Power Supply: Full PWM | Power Supply Threshold: 10.0VDC - 17.0VDC | Idle Current: (0.7A)
BulletPoint4 : Distortion - THD 4 (1KHx @ 4Ω): 0.5% | S/N Ratio (A weighted @1W): -85dBA | S/N Ratio (A weighted @FP): -101.1dBA | Input Sensitivity - Low Input Level: 200mV - 10.0V | High Input Level: up to 10.0V Input Impedance | Low Input Level: 20KΩ | High Input Level: 20KΩ
BulletPoint5 : Output Stage - Output Impedance: 0.011Ω | Damping Factor (50Hz@4Ω): >250 | Bandwidth (-3dB): 10Hz - 350Hz | Crossover (-12dB/Oct) - Variable High-Pass:40Hz - 400Hz | Variable Low-Pass: 40Hz - 400Hz | Fuse Ratings: ATC: 25A | Dimensions: 7.89” L x 4.0” W x 1.46” H
ExternallyAssignedProductIdentifier1 : 699440986472
ExternallyAssignedProductIdentifier2 : 0699440986472

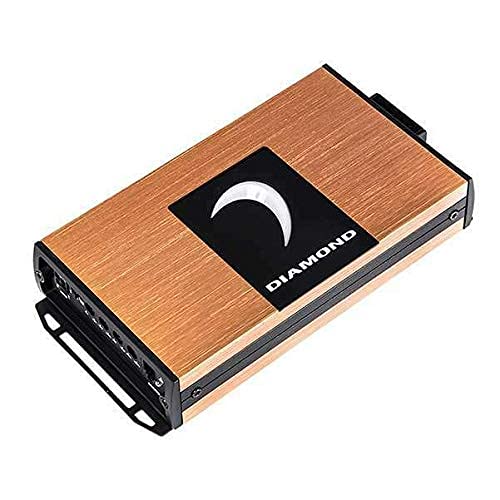

ItemName : Diamond Audio MICRO2V2 2-Channel 500W RMS Class D Amplifier
ItemPackageDimensions_Height : 27.1 centimeters
ItemPackageDimensions_Length : 6 centimeters
ItemPackageDimensions_Width : 15.8 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : vehicle-multi-channel-amplifiers
Manufacturer : Diamond Audio
MaximumSupplyVoltage : 17 volts_of_direct_current
MinimumSupplyVoltage : 10 volts_of_direct_current
ModelNumber : MICRO2V2
MountingType : Surface Mount
NumberOfChannels : 1
OutputPower : 500 watts
PartNumber : MICRO2V2
ProductDescription : Diamond Audio MICRO2V2 Micro Series 2-Channel Class D Amplifier Amplify your audio with the Diamond Audio MICRO2V2, a 2-channel Class D amplifier from the Micro Series, designed for car and motorcycle systems. Delivering high-fidelity sound in a compact package, this amplifier features DirectFET MOSFET technology and advanced protection for efficient, reliable performance. Perfect for powering speakers with clarity and precision. Clear Audio Output : Delivers up to 150W x 2 @ 2Ω for dynamic speaker performance. Ultra-Compact Size : Small footprint for easy installation in tight spaces. Efficient Design : DirectFET MOSFET ensures minimal heat and maximum power. Robust Protection : Thermal and short-circuit protection for uninterrupted operation. Versatile Connectivity : Supports various speaker configurations for flexible setups. Specifications: Power Output : 150W x 2 @ 2Ω, 80W x 2 @ 4Ω, 300W x 1 @ 4Ω Bridged Frequency Response : 20Hz–20kHz Dimensions : 8.5†L x 4.0†W x 1.46†H (estimated) Crossover : 12dB/octave, High/Low Pass adjustable Sensitivity : 200mV–10V Fuse Rating : 25A Package Includes: 1 Diamond Audio MICRO2V2 Amplifier Power and Signal Input Connectors Mounting Brackets and Hardware Installation Manual Why Choose the Diamond Audio MICRO2V2? With over 30 years of audio innovation, the MICRO2V2 delivers premium sound in a compact, reliable package. This amplifier is the perfect choice for audiophiles seeking high-fidelity audio for their vehicle systems.
ProductSiteLaunchDate : 2017-03-23T23:39:00.462Z
SpecificationMet : RoHS
SupplierDeclaredDgHzRegulation1 : not_applicable
SupplierDeclaredDgHzRegulation2 : not_applicable
SupplierDeclaredDgHzRegulation3 : not_applicable
SupplierDeclaredDgHzRegulation4 : not_applicable
SupplierDeclaredDgHzRegulation5 : not_applicable
SupplyCurrent : 0.7 amps
UnspscCode : 52161547
Voltage : 10 volts_of_direct_current
