Specification
Brand : DS18
BulletPoint1 : Powerful Performance - With RMS power outputs of 4 x 300W at 4 ohms and 4 x 550W at 2 ohms, this amplifier delivers a punchy and dynamic audio experience, ensuring your music sounds clear and vibrant even at high volumes
BulletPoint10 : Dimensions: 9" x 2.56" x 7.32", Weight: 5.28 lbs
BulletPoint2 : Versatile Connectivity - Featuring selectable crossover options (HPF/LPF/BAND-PASS) and a low-level input range of 0.2-8V, this amplifier allows you to fine-tune your sound to suit your preferences and audio setup, providing flexibility and control over your sound system
BulletPoint3 : Advanced Protection Features - Equipped with a range of protection features including thermal protection, overload protection, DC output protection, and short circuit output protection, this amplifier ensures the safety and longevity of your audio equipment, giving you peace of mind during operation
BulletPoint4 : Convenient Remote Control - The included remote level control knob with clip indicator allows you to easily adjust the amplifier's settings and monitor its performance, ensuring optimal audio quality without the need for constant manual adjustments
BulletPoint5 : Durable and Stylish Design - Built with a reliable heavy-duty Korean board design and featuring a sleek red and black finish, this amplifier not only delivers top-notch performance but also adds a touch of style to your audio setup. Its compact dimensions make it easy to integrate into your car or home audio system seamlessly
BulletPoint6 : Variable Low-Pass Crossover - Subwoofers reproduce sound based on a number of different low-range frequencies. You can set exact sound specifications for the bass frequency reproduction.
BulletPoint7 : Switchable Bass Boost - Bass Boost allows you to adjust the low bass within the boost range to just the way you like it.
BulletPoint8 : Class D Monoblock Mosfet Car Power Amplifier comes with a Smart Cooler for better heat dissipation and LED indicators to diagnose your car's audio system (M1 LED monitor included).
BulletPoint9 : The Positive/Negative power supply cable is 4 AWG. The output cables wire gauge are 9 AWG and the remote cable is 18 AWG. 150A circuit breaker or a fuse is recommended.
Color : RED
ExternallyAssignedProductIdentifier : 7908706602418
ExternallyAssignedProductIdentifier1 : 0810097264878
ExternallyAssignedProductIdentifier2 : 810097264878
ExternallyAssignedProductIdentifier3 : 558291162346
ExternallyAssignedProductIdentifier4 : 014445626749
ExternallyAssignedProductIdentifier5 : 0014445626749
ExternallyAssignedProductIdentifier6 : 0611104311956
ExternallyAssignedProductIdentifier7 : 0731128940939
ExternallyAssignedProductIdentifier8 : 0558291162346
IncludedComponents : Remote Level Control

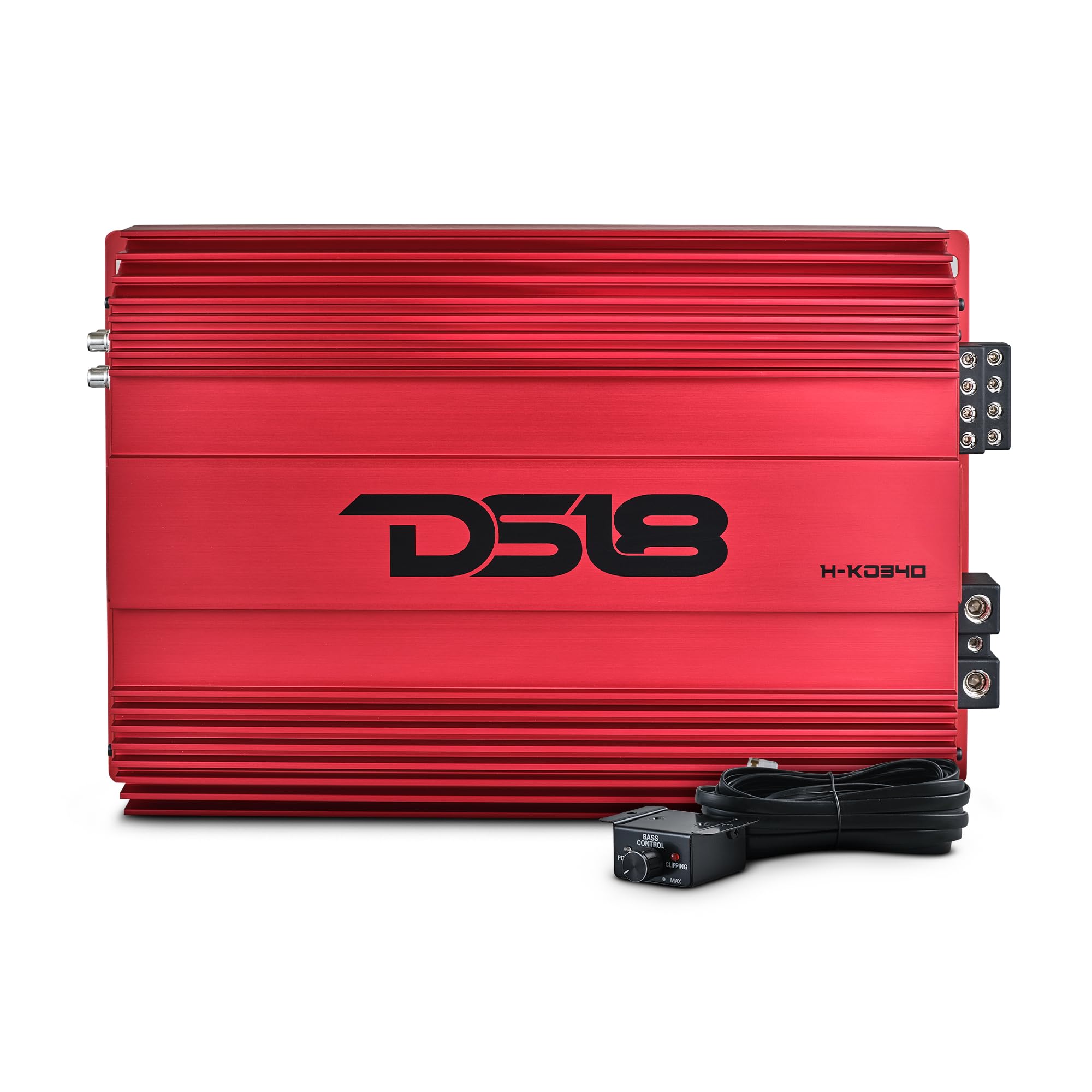

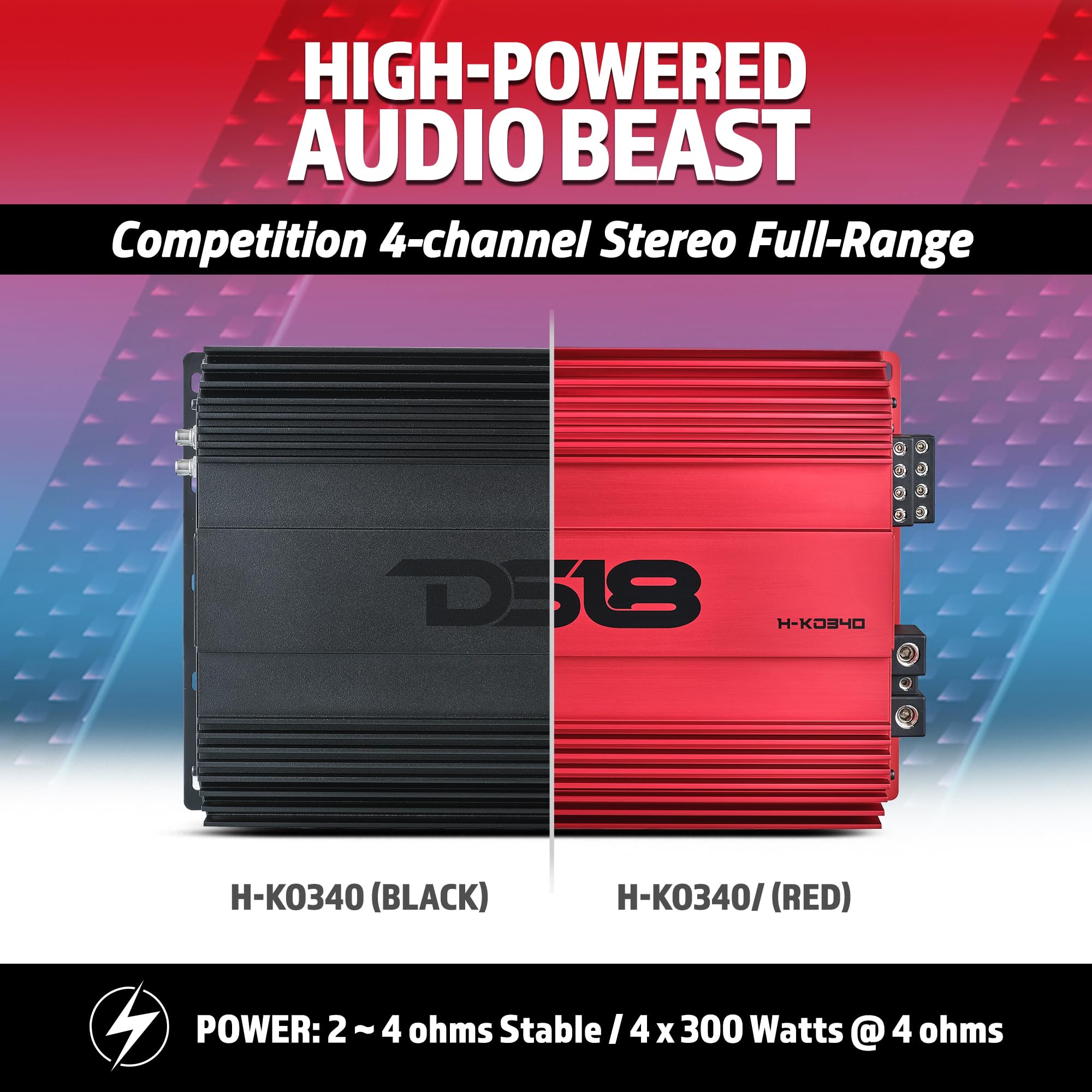

ItemName : DS18 Hooligan H-KO340/RD KO 4-Channel Amplifier Full Range Class D 4 x 300 Watts RMS @ 4-Ohm, Competition-Level Performance, Made in Korea, Remote Level Control Included
ItemPackageDimensions_Height : 19 inches
ItemPackageDimensions_Length : 15 inches
ItemPackageDimensions_Width : 9 inches
ItemPackageQuantity : 1
ItemTypeKeyword : vehicle-multi-channel-amplifiers
Manufacturer : DS18
Material : Plastic
MaximumSupplyVoltage : 12 volts_of_direct_current
MinimumSupplyVoltage : 12 volts_of_direct_current
ModelName : ME60BT
ModelNumber : H-KO340/RD
MountingType : Surface Mount
NumberOfChannels : 4
NumberOfItems : 1
OutputPower : 1200 watts
PackageLevel : unit
PackageTypeName : Box
PartNumber : H-KO340/RD
ProductDescription :

SPECS

SKU H-K0340
RMS Power @ 4 ohm 4 x 300W
RMS Power @ 2 ohm 4 x 550W
RMS Power @ 1 ohm N/A
RMS Power @ 0.5 ohm N/A
RMS Power @ 4 ohm Bridge 2 x 1000W

AUDIO

Frequency Response 13Hz-20KHz
Signal to Noise Ratio >90dB
Efficiency @ 4ohm 90%
Damping Factor 100
Total Harmonic Distortion (THD) <0.2%
Low Level input Range 0.2-8V
Selectable X-Over HPF/LPF/BAND-PASS
X-Over Filter Range HPF: 20Hz-8KHz / LPF: 50Hz-8KHz (1X/10X)
Bass Boost Range No
Bass Boost Frequency N/A
Infrasonic Filter No
Phase No

FEATURES

Amplifier Class Digital (D)
Amplifier Type Stereo Full-Range
Number of Channels 4
Minimum Impedance 2 ohm/Ch (4 ohm Bridge)
Led Indicator Power / Protect / Clip
Power Input Terminal Size 1/0Ga
Fuse Size 200A
Remote Level Control Yes (Metal Case)
Cooling Fan No
Voltmeter No
Thermal Protection Yes
Over-Load Protection Yes
DC Output Protection Yes
Short Circuit Output Protection Yes
Voltage Input Protection Yes
Cliping Protection Yes
Body Color / Finish Red / Black

EXTRA FEATURES

X-Over Frequency Multiplier Yes
Input Mode Selectable Yes
LED Clipping indicator Yes
Professional Tiffany RCA Connectors Yes
Remote Level Knob with Clip indicator Yes
Linkable (Strap mode) Amplifier No
Reliable Heavy Duty Korean Board Design Yes
Very High Efficiency Digital Circuit Design Yes

MEASUREMENT ( MM )

Overall Lengh ( with end plate ) 14.5" / 370mm
Overall Wide 9.68" / 246mm
Overall Height ( with end plate ) 2.85" / 72.5mm
Heatsink Length 13.3" / 340mm

ProductSiteLaunchDate : 2024-04-17T14:45:12.786Z
Size : 5.2 x 4.3 x 1.7 inch
SpecificationMet : CE
SpecificationMet1 : FCC
SpecificationMet2 : CE
StreetDate : 2004-07-07T00:00:01Z
Style : Full Range 4-Channel
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 52161547
Voltage : 12 volts
Wattage : 3000 watts
